Models C708 & C716 Operator Parts Identification
140121

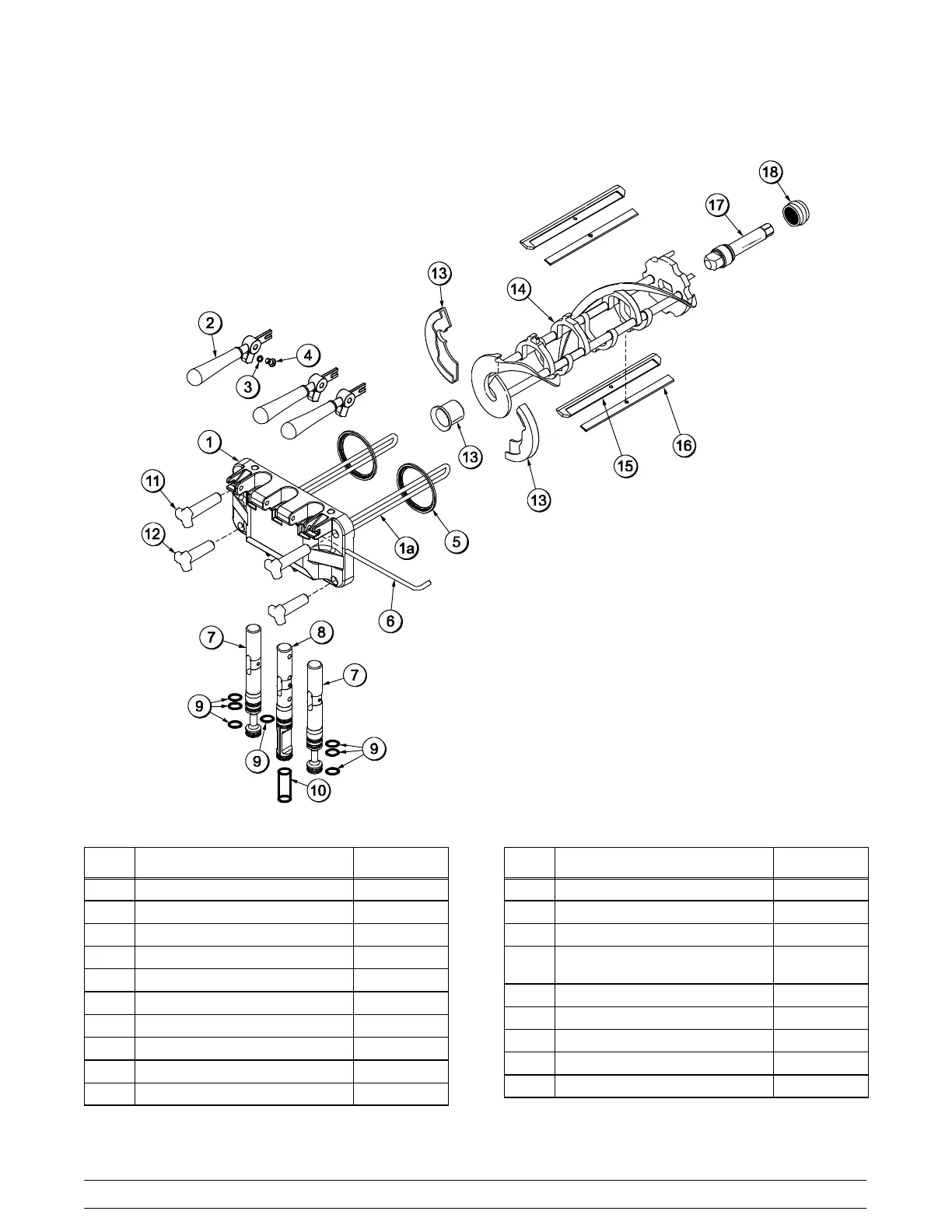

Model C716 Door and Beater Assembly
Figure 4
ITEM DESCRIPTION PART NO.
1 DOOR A.-3SPT*HT*LG BAF X59923-SER
1a BAFFLE A.-LONG 4 IN X50882
2 HANDLE A.-DRAW-WELDED X56421-1
3 O-RING-1/4 OD X .070W 50 015872
4 SCREW-ADJUSTMENT-5/16-24 056332
5 GASKET-DOOR HT 4"-DOUBLE 048926
6 PIN-HANDLE-TWIN 059894
7 VALVE A.-DRAW X59888
8 VALVE A.-DRAW*CENTER X59890
9 O-RING--7/8 OD X .103W 014402
ITEM DESCRIPTION PART NO.
10 SEAL-DRAW VALVE H-RING 034698
11 NUT-STUD-BLACK 3.250 LONG 058765
12 NUT-STUD*BLACK 2.563 LONG 058764
13 KIT A.-BEATER-FRONT
SHOES-BEARING
X50350
14 BEATER A.-3.4QT-1 PIN X46231
15 BLADE-SCRAPER-PLASTIC 046235
16 CLIP-SCRAPER BLADE 7.00” 046236
17 SHAFT-BEATER 032564
18 SEAL-DRIVE SHAFT 032560

Taylor C716 Specifications

General

Hopper Capacity	20 quarts (18.9 liters)
Separate Hopper Refrigeration (SHR)	Yes
Air Cooled	Yes
Freezing Cylinder	One
Mix Hopper	One
Electrical	208-230/60/1
Motor	1.5 HP
Indicator Lights	Mix Low
Refrigeration System	Air Cooled
