Models C709 & C717Operating Procedures
140121

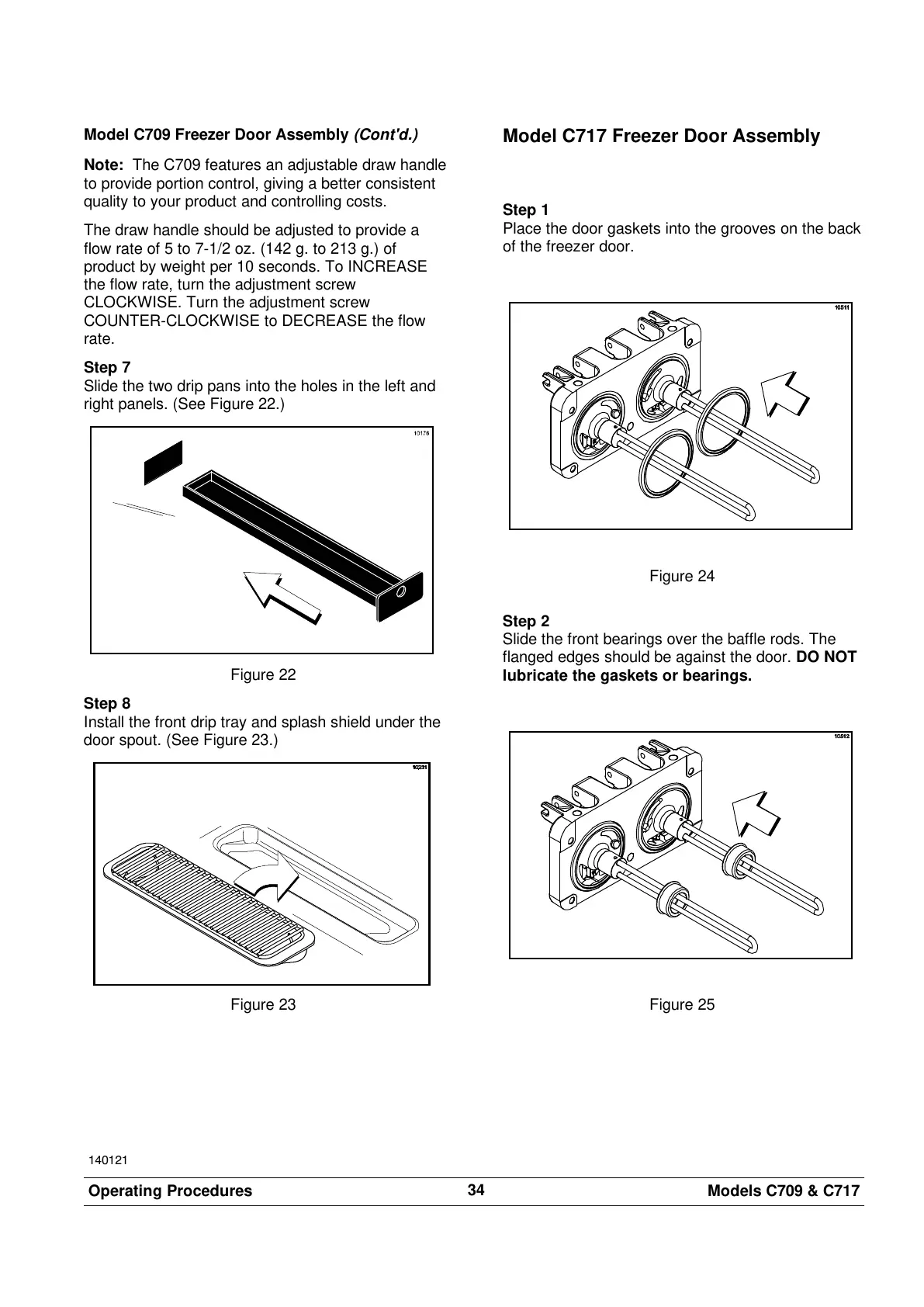

Model C709 Freezer Door Assembly (Cont'd.)
Note: The C709 features an adjustable draw handle
to provide portion control, giving a better consistent
quality to your product and controlling costs.
The draw handle should be adjusted to provide a
flow rate of 5 to 7-1/2 oz. (142 g. to 213 g.) of
product by weight per 10 seconds. To INCREASE
the flow rate, turn the adjustment screw
CLOCKWISE. Turn the adjustment screw
COUNTER-CLOCKWISE to DECREASE the flow
rate.
Step 7
Slide the two drip pans into the holes in the left and
right panels. (See Figure 22.)
Figure 22
Step 8
Install the front drip tray and splash shield under the
door spout. (See Figure 23.)
Figure 23
Model C717 Freezer Door Assembly
Step 1
Place the door gaskets into the grooves on the back
of the freezer door.
Figure 24
Step 2
Slide the front bearings over the baffle rods. The
flanged edges should be against the door. DO NOT
lubricate the gaskets or bearings.
Figure 25
