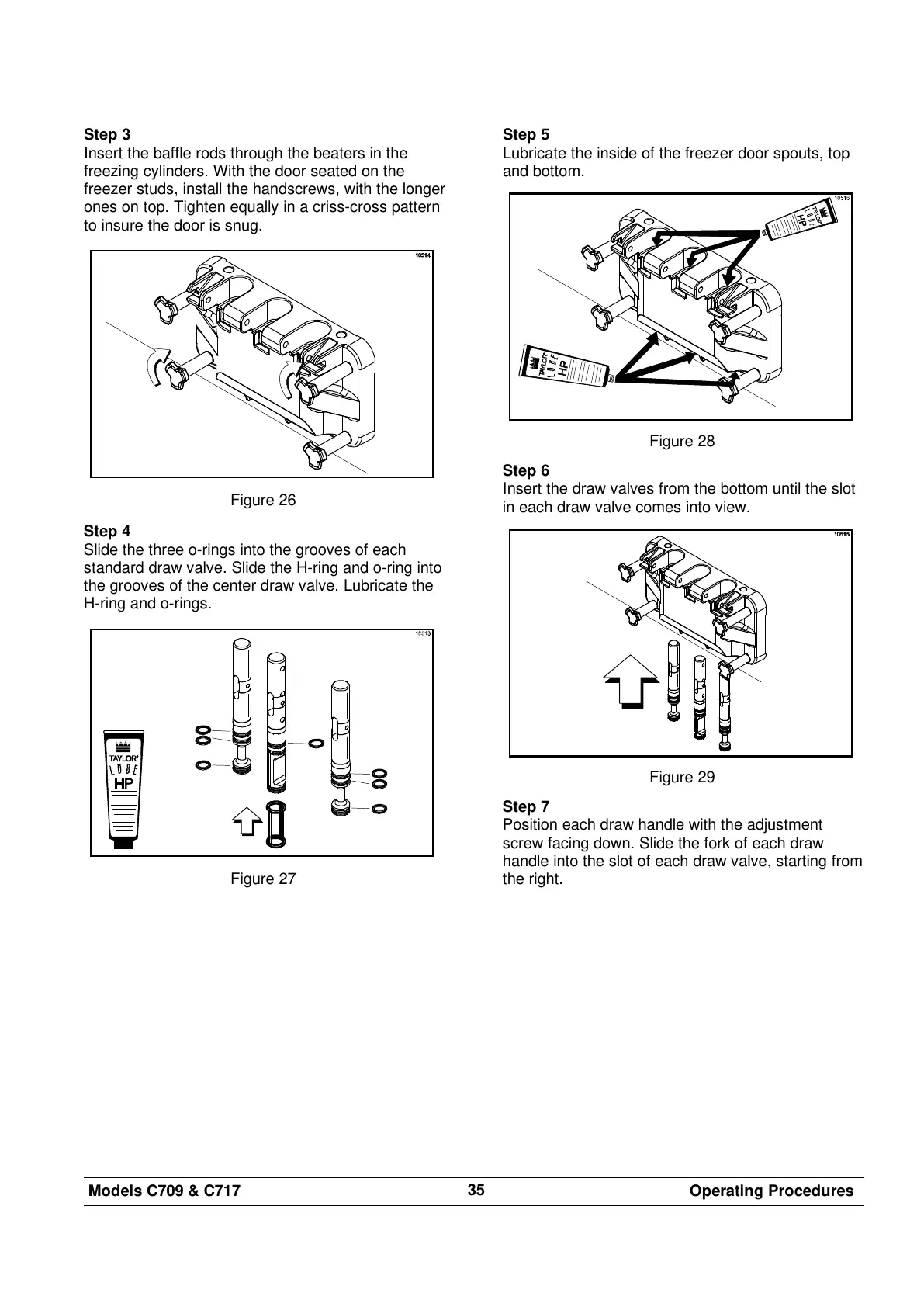

Models C709 & C717 Operating Procedures
Step 3
Insert the baffle rods through the beaters in the
freezing cylinders. With the door seated on the
freezer studs, install the handscrews, with the longer
ones on top. Tighten equally in a criss-cross pattern
to insure the door is snug.
Figure 26
Step 4
Slide the three o-rings into the grooves of each
standard draw valve. Slide the H-ring and o-ring into
the grooves of the center draw valve. Lubricate the
H-ring and o-rings.
Figure 27
Step 5
Lubricate the inside of the freezer door spouts, top
and bottom.
Figure 28
Step 6
Insert the draw valves from the bottom until the slot
in each draw valve comes into view.
Figure 29
Step 7
Position each draw handle with the adjustment
screw facing down. Slide the fork of each draw
handle into the slot of each draw valve, starting from
the right.
