36
Models C709 & C717Operating Procedures
140121

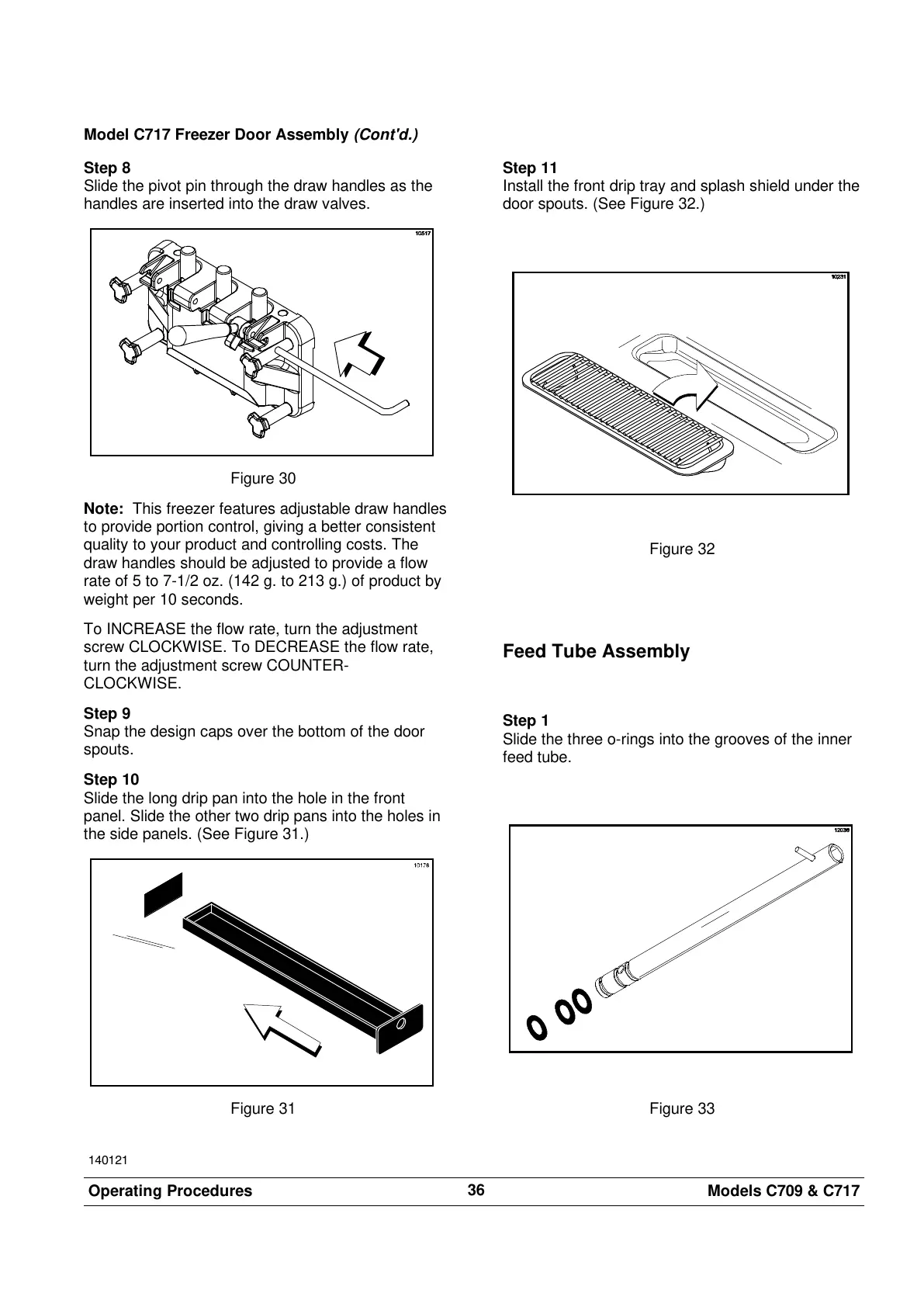

Model C717 Freezer Door Assembly (Cont'd.)
Step 8
Slide the pivot pin through the draw handles as the
handles are inserted into the draw valves.
Figure 30
Note: This freezer features adjustable draw handles
to provide portion control, giving a better consistent
quality to your product and controlling costs. The
draw handles should be adjusted to provide a flow
rate of 5 to 7-1/2 oz. (142 g. to 213 g.) of product by
weight per 10 seconds.
To INCREASE the flow rate, turn the adjustment
screw CLOCKWISE. To DECREASE the flow rate,
turn the adjustment screw COUNTER-
CLOCKWISE.
Step 9
Snap the design caps over the bottom of the door
spouts.
Step 10
Slide the long drip pan into the hole in the front
panel. Slide the other two drip pans into the holes in
the side panels. (See Figure 31.)
Figure 31
Step 11
Install the front drip tray and splash shield under the
door spouts. (See Figure 32.)
Figure 32
Feed Tube Assembly
Step 1
Slide the three o-rings into the grooves of the inner
feed tube.
Figure 33
