Model H60Important: To the Operator
Section 5 Important: To the Operator

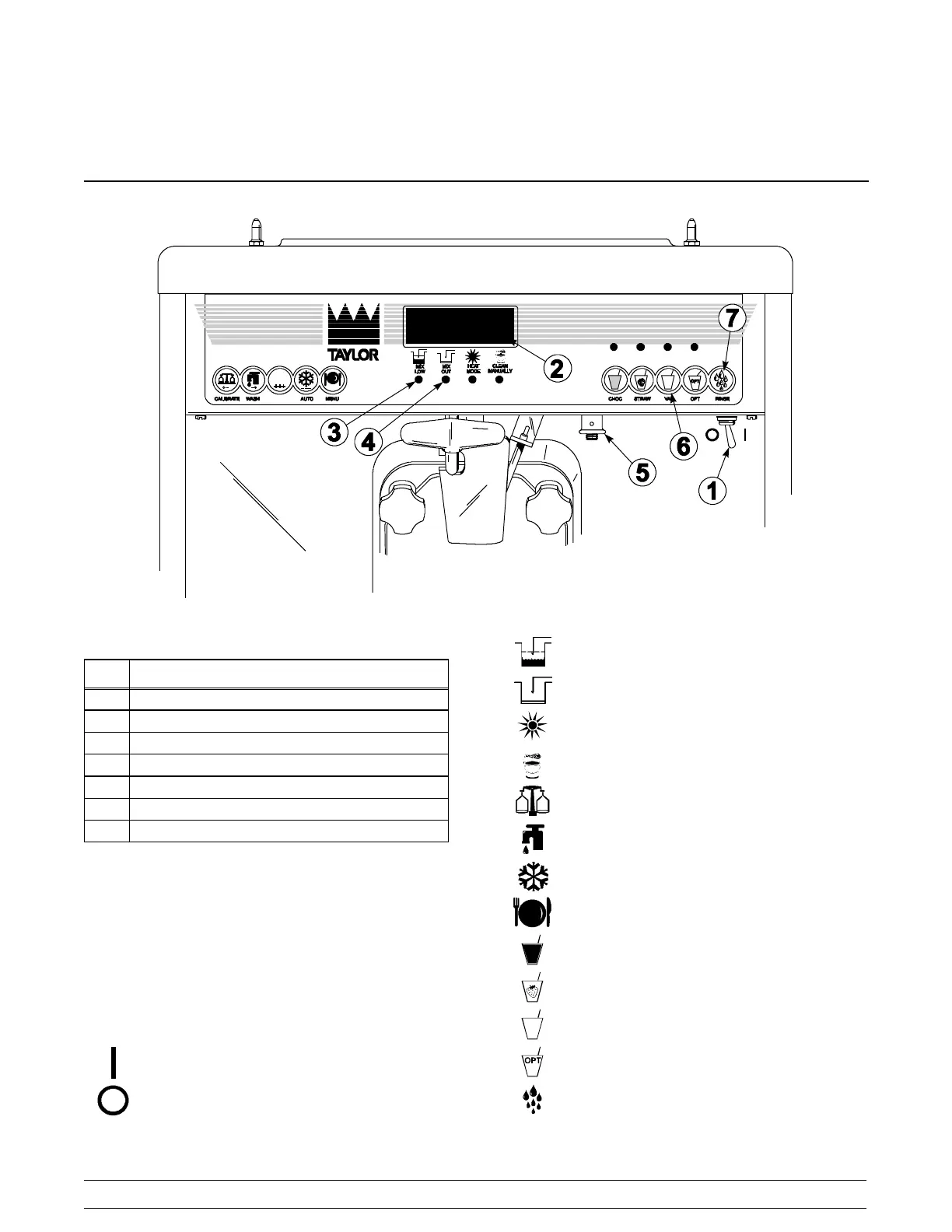

Item Description
1 Power Switch (Toggle)
2 Liquid Crystal Display
3 LCD Indicator - MIX LOW (PCB A.- LED)
4 LCD Indicator - MIX OUT (PCB A.- LED)
5 Consistency Control (Switch- Torque)
6 Flavor Selector Keypad (Switch- Membrane)
7 Rinse Key (Switch- Membrane)
Symbol Definitions
To better communicate in the International arena, the
words on many of our operator switches and buttons
have symbols to indicate their functions. Your Taylor
equipment is designed with these International
symbols.
The following chart identifies the symbol definitions
used on the operator switches.
=ON
=OFF
=MIXLOW
= MIX OUT
=HEATMODE
= CLEAN MANUALLY
=CALIBRATE
= WASH
=AUTO
=MENU
= CHOCOLATE
= STRAWBERRY
= VANILLA
= OPTIONAL
=RINSE
