MAIN PAGE EQ

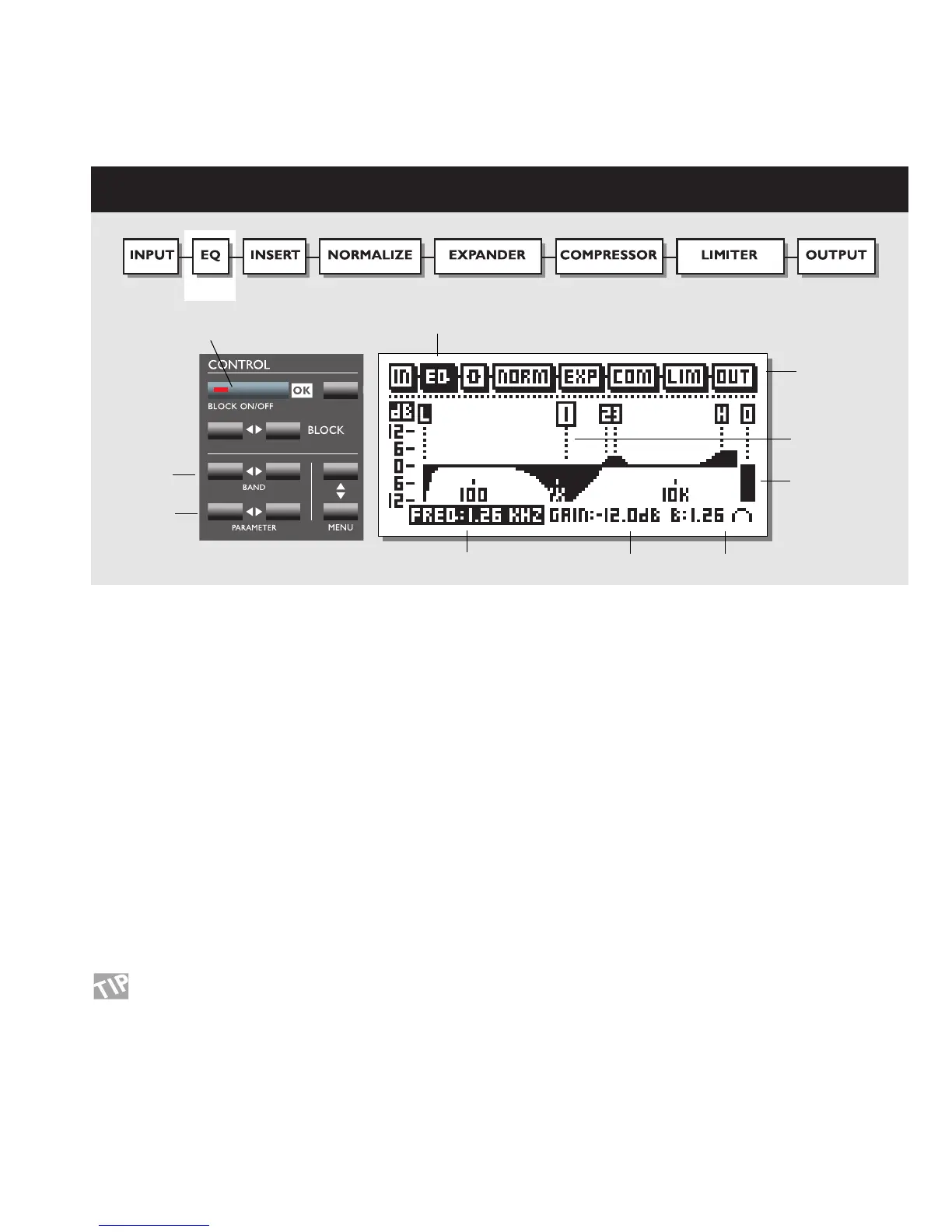

Effects blocks
Black box indicates selected block
EQ on/off
Parameter
Band
Output Level bar
Selected band
Frequency
Gain
Bandwidth/Slope
EQ
Select EQ by pressing the BLOCK keys.
Basic operation
Press PARAMETER keys to select frequency/gain/bandwidth/slope.
Turn ADJUST wheel to change values.
Press BAND keys to jump between the five bands.
EQ Ranges
Frequency Gain Bandwidth/Slope
Low Shelve 19.95 Hz to 5.01 kHz +/- 12 dB 3, 6, 9, 12 dB/Oct
Bell-shaped filter 1 19.95 Hz to 20 kHz +/- 12 dB 0.1 Oct to 4.0 Oct
Bell-shaped filter 2 19.95 Hz to 20 kHz +/- 12 dB 0.1 Oct to 4.0 Oct
Bell-shaped filter 3 19.95 Hz to 20 kHz +/- 12 dB 0.1 Oct to 4.0 Oct
High Shelve 501.2 Hz to 20 kHz +/- 12 dB 3, 6, 9, 12 dB/Oct
Output Gain - +/- 12 dB -
EQ Bypass
Press the blue BLOCK on/off key to bypass the EQ section.
Reset all filters by pressing both page keys simultaneously.
