For 10V model only:
1. Fix the wires to the Bus bars as shown in Figure 3-8.
2. Close the output protection assembly. In this model the plastic protectors will not be assembled.
M10
Screws
M10 Hex. Nut
Tightening torque:
220 ~ 265 lbf-in.
24.9~ 29.9 Nm
Flat
Washers
Flat washer
close to Bus
bars, then,
spring washer

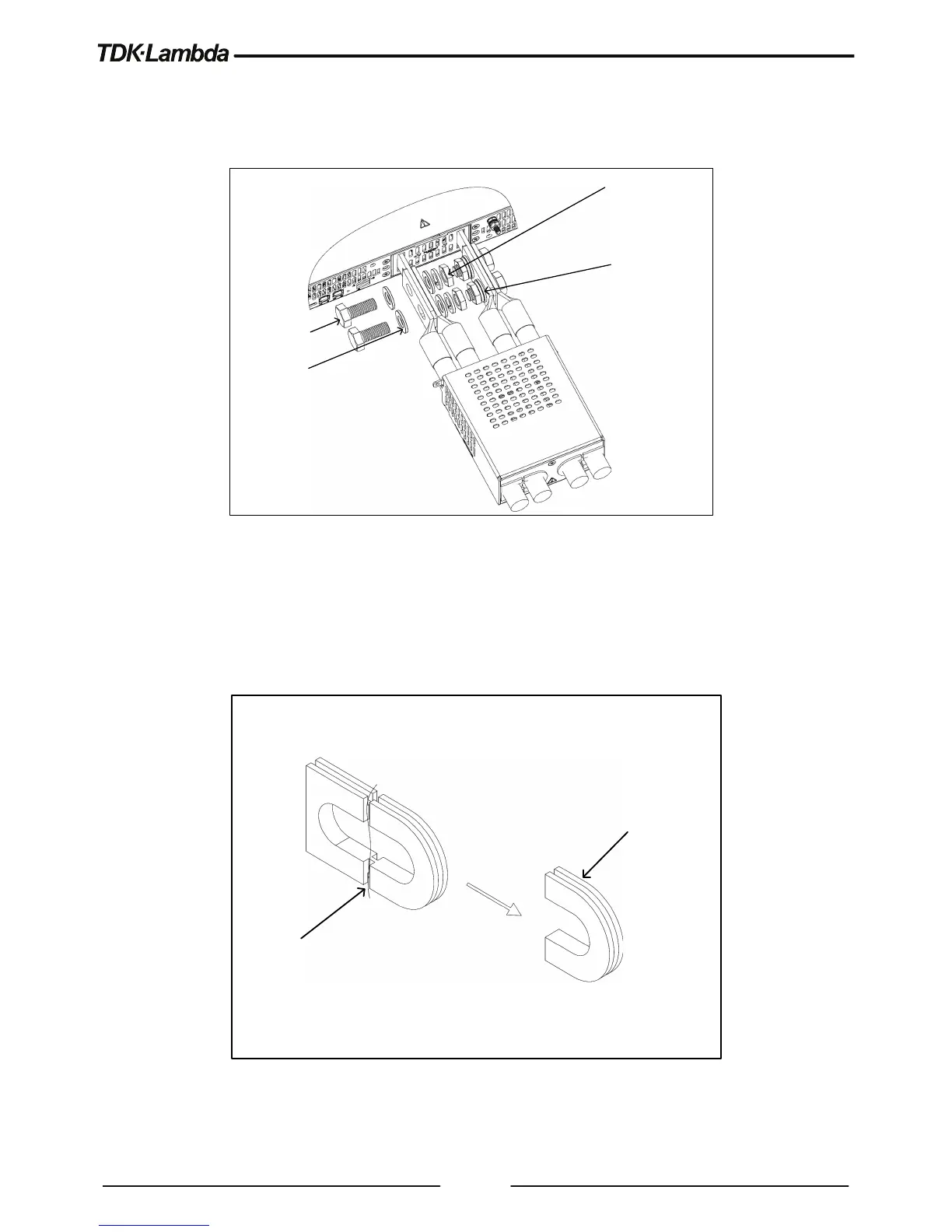

Figure 3-8: Assembly of 10V Wires
For 20V ~ 40V models:
1. Remove & Separate each plastic protector to two parts by cutting the plastic bridge between both
parts, as shown in Figure 3-9.
2. Insert back to the protection assembly only the specified part, as shown in Figure 3-9.
Cut line
Insert this part to
the protection
assembly
Figure 3-9: Plastic Protectors Separation
3. Fix the wires to the bus bars as shown in Figure 3-10. Close the output protection assembly with
one part of the plastic protector assembled on each side, as shown in Figure 3-10.
