45
M10
Screws
Flat washer close
to Bus bars, then
spring washer
Flat
Washers
M10 Hex. Nut
Tightening torque:
220 ~ 265 lbf-in.
24.9~ 29.9 Nm
One part of
plastic
protector
assembled

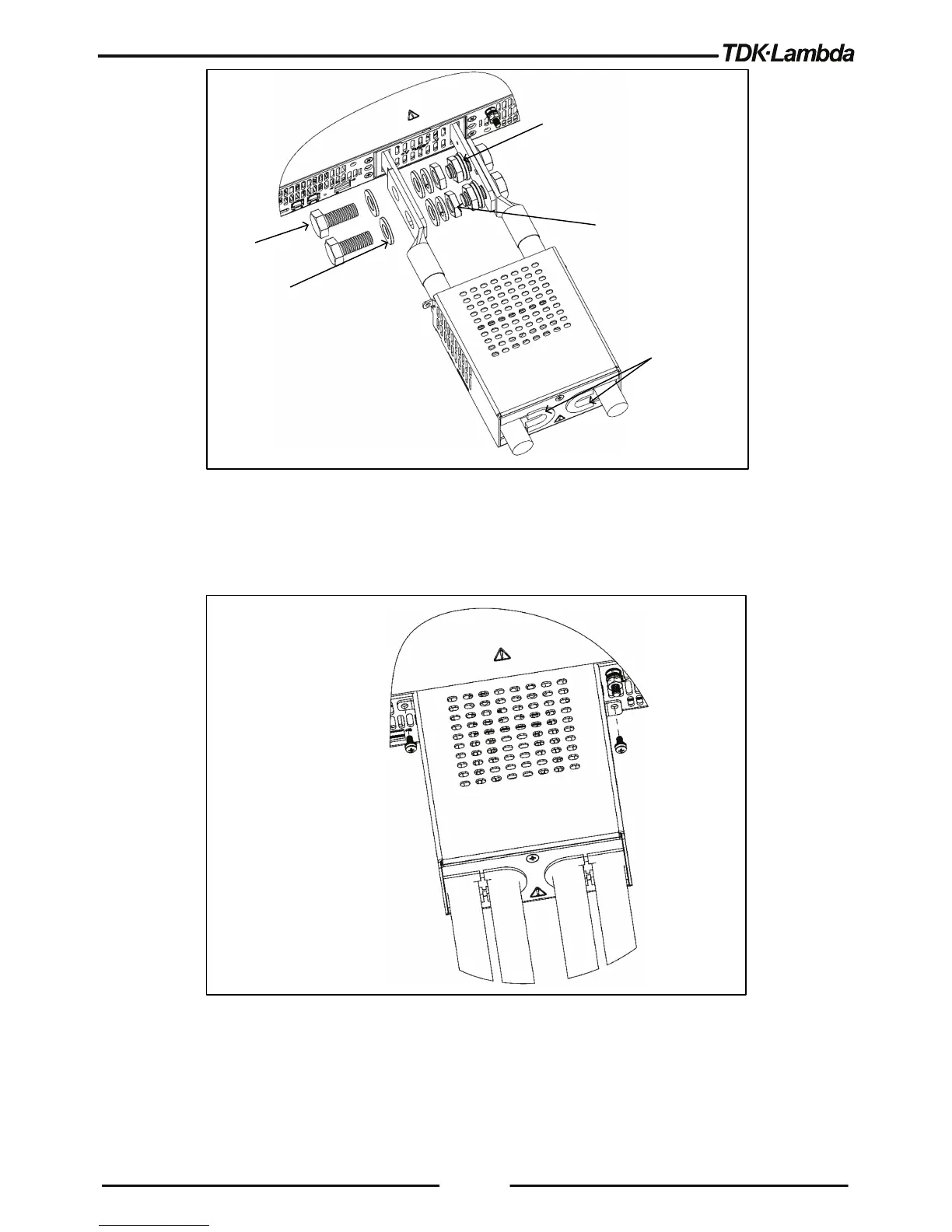

Figure 3-10: 20V ~ 40V Wires Assembly
4. Assemble the Bus bars protection assembly to the rear panel of the power supply, by using 2
M3X6 Sems screws from the accessories kit, as shown in Figure 3-11.
Tightening torque: 4.7 ~ 5.7
Lbf-inch (0.53 ~ 0.64 Nm).
Figure 3-11: Fixing Bus bars protection assembly to the rear panel
