INSTRUCTION MANUAL
HWS 3000G
TDK-Lambda
<Page>
25/49

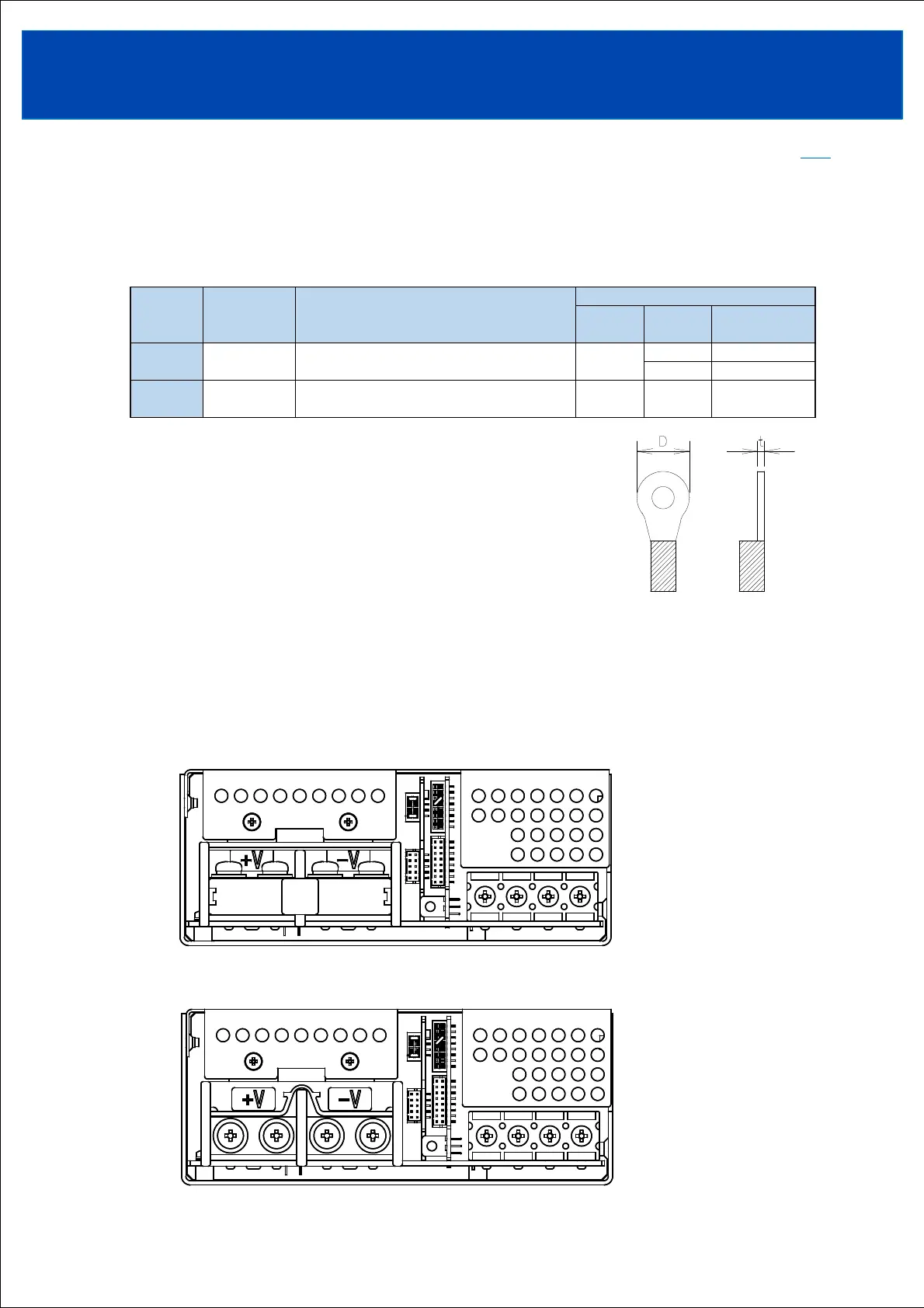

4-1. Input/output wiring
(1) The output load line and input line shall be separated, and use all lines as thick and short as possible
to make lower impedance. The output load line and input line shall be twisted or use shielded wire
to improve noise sensitivity.
The recommended wire type, torque and crimp-type terminal :
Note :Recommended wire type and crimp-type terminal vary depending
on use conditions. Choice most appropriate wire type and crimp-
type terminal after referring to wire maker recommended allowable
current and voltage drop.
Thick diameter wire is recommended.
(2) Noise can be reduced by attaching a capacitor to the load terminals.
(3) The output terminal can be wired on the top or front side.
For safety, we recommend installing the attached terminal cover on the side that will not be used.
At the time of shipment, the mounting screws are attached to the top surface.
It cannot be installed on two sides at the same time as there is a risk that the screws may come into
contact with each other internally.
Output terminal top side screw (Shipment condition)
TOPTOP
4. Notes on wiring
Output terminal front side screw
