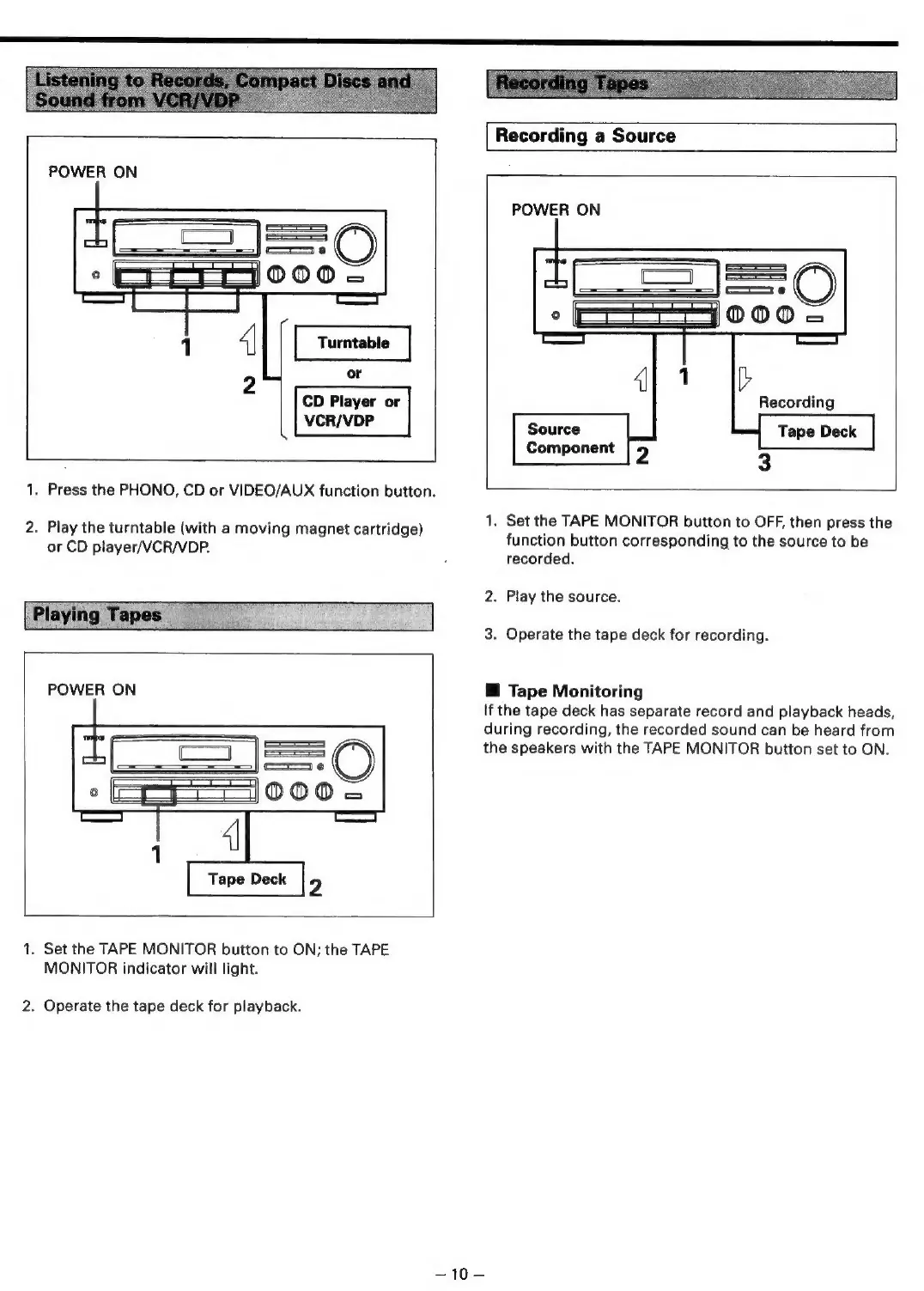

Teac AG-360 - Usage Scenarios; Playing Various Audio Sources; Recording and Monitoring Tapes

POWER ON
or
CD Player or
VCR/VDP |
1, Press the PHONO, CD or VIDEO/AUX function button.
=
2. Play the turntable (with a moving magnet cartridge)
or CD player/VCR/VDP.
|
|
ee | C)
° OOO-s
4{
Tape Deck 2
1. Set the TAPE MONITOR button to ON; the TAPE
MONITOR indicator will light.
2. Operate the tape deck for playback.
Recording a Source
POWER ON
Recording
Tape Deck
3
Source
Component
1. Set the TAPE MONITOR button to OFF, then press the
function button corresponding to the source to be
recorded.
2. Play the source.
3. Operate the tape deck for recording.
Hf Tape Monitoring
If the tape deck has separate record and playback heads,
during recording, the recorded sound can be heard from
the speakers with the TAPE MONITOR button set to ON.
Oi
