Teac HDR2700T User Manual

User’s Manual
8

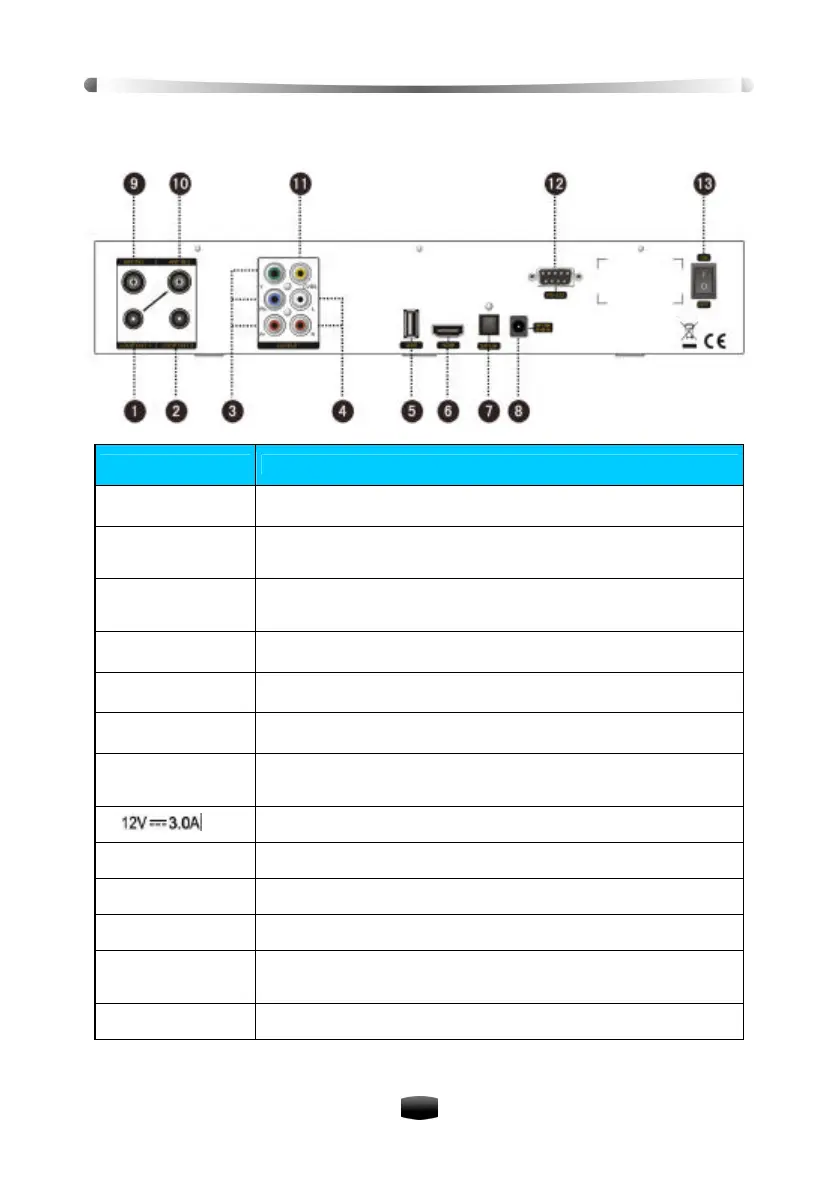

1.5 Rear Panel
Name Function
1. LOOP OUT1 Terrestrial broadcasting signal output socket through the first tuner.
2. LOOP OUT2
Terrestrial broadcasting signal output socket through the second
tuner.
3. YPbPr
Component video output socket, output YPbPr video signal to
TV(supporting high definition output).
4. L/R-AUDIO Output left, right or stereo audio signal to TV or amplifier.
5. USB Connect to specific USB device
6. HDMI Output high definition video and audio signal to TV.
7. S/P DIF
Optical output socket for Dolby digital, output digital audio signal
to
amplifier.
8. DC power supply
9. ANT IN1 Terrestrial broadcasting signal input socket for the first tuner.
10. ANT IN2 Terrestrial broadcasting signal input socket for the second tuner.
11. CVBS Composite video signal output socket for TV.
12. RS-232
Serial port used for software upgrade (authorized for qualified per-
sonnel).
13. ON/OFF Power switch.

Teac HDR2700T Specifications

General

Brand	Teac
Model	HDR2700T
Category	DVR
Language	English
