2. Setup
2.1 Connecting up your unit
There are several ways to connect up your unit as following. If you have any problem with your
setup or need help, contact your dealer.

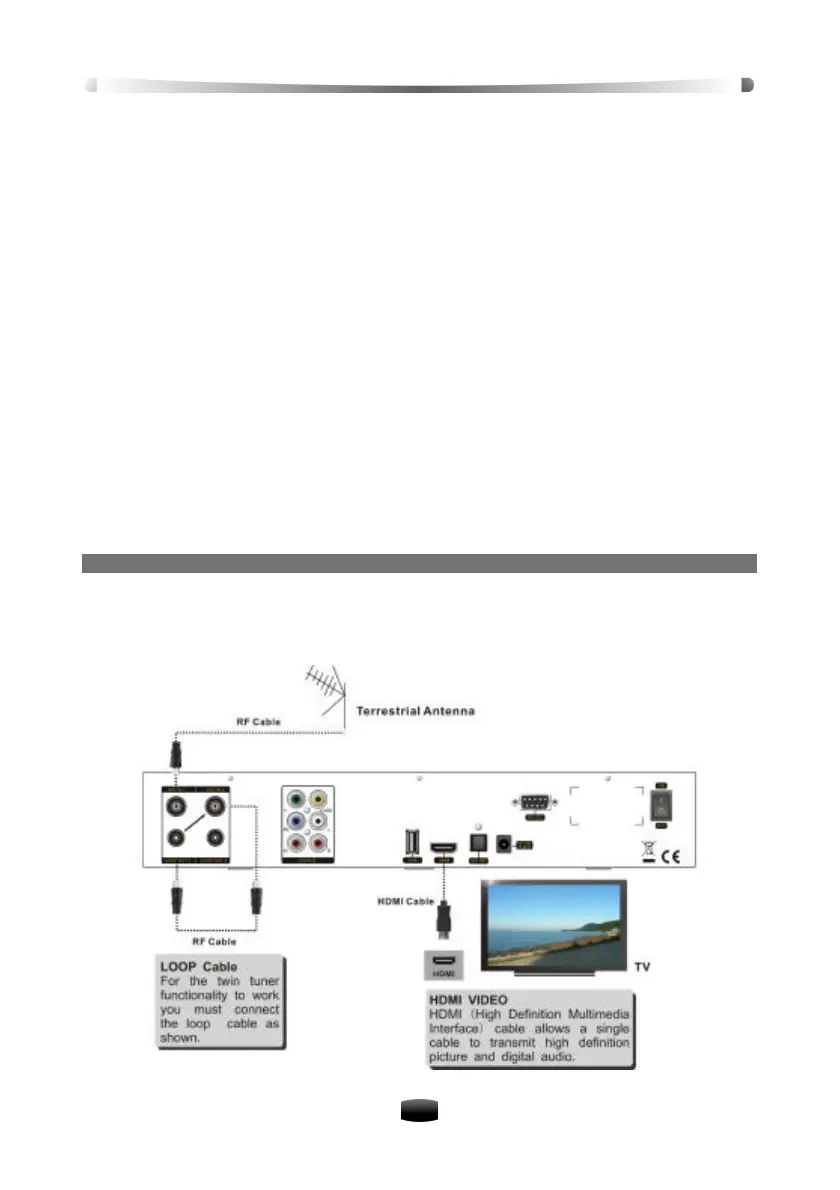

2.1.1 Connecting the antenna
v Connect the antenna cable to ANT IN 1 connector on the rear panel.
v If there are two twin tuners built-in to your unit, you must ensure that there is a connection
to both LOOP OUT 1 and ANT IN 2 connector with a loop cable, otherwise the unit will not
work at its full capacity.
v If you have another unit, connect it from LOOP OUT 2 connector.
v If you want to receive analogue channels on your TV, connect the antenna cable from the
TV to LOOP OUT 2 connector.
2.1.2 Connecting to your TV set
Between all the following connectors of the digital unit, we recommend you to use the HDMI
connection to get best picture quality. If your TV does not have the matching connector, then
use the next connection in the following order for better picture quality.
1. To use HDMI connector
Plug one end of the HDMI cable into HDMI socket on the unit, and plug the other end into the
matching socket on your TV.
Note: You do not have to make audio connection because HDMI connector can output
stereo audio or Dolby digital audio.
