3 - Technical Data
Dimensions and Weights
3.3 Dimensions and Weights
6 Slot MIO
Dimensions
Weights

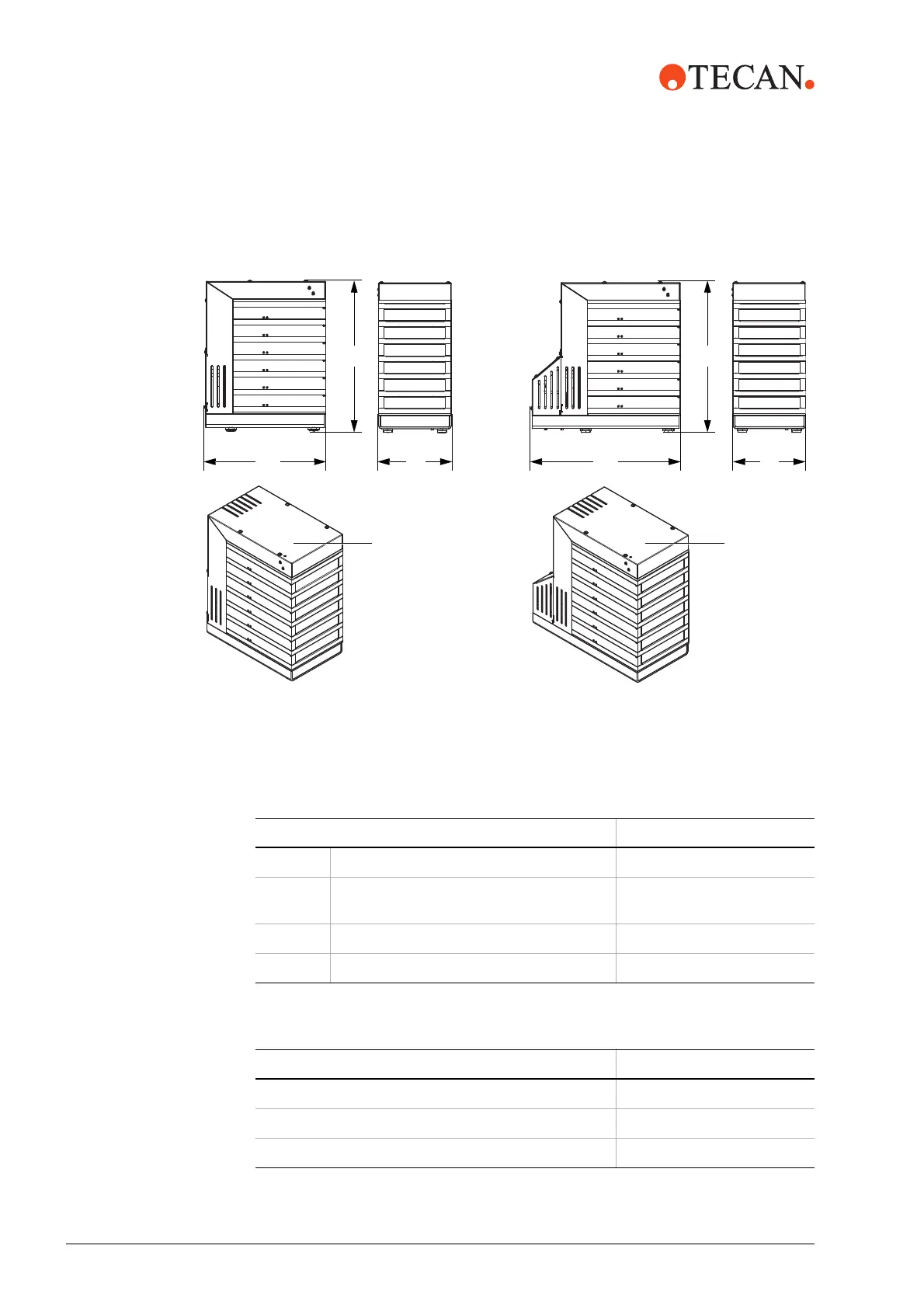

Fig. 3-4 Dimensions of the MIO2, 6 positions
W W
Lb
La
H H
A B
A MIO2 standard B MIO2 with shaker option
Tab. 3-2 Dimensions of the MIO2, 6 positions
Dimensions Value
La Length of standard configuration 213 mm (8.38 in.)
Lb Length with shaking assembly / fan option
configuration
265 mm (10.43 in.)
W Overall width 130.5 mm (5.13 in.)
H Overall height 267.5 mm (10.53 in.)
Tab. 3-3 Weight of configurations, 6 positions
Type Value
Standard configuration weight 3.5 kg (7.7 lbs.)
Shaking assembly configuration 4.8 kg (10.6 lbs.)
Shaking assembly with fan option configuration 4.9 kg (10.8 lbs.)
