automatically by the software.
GOP Structure
Base on the GOP structure definition and bandwidth to input
an appropriate parameter.
Frame Rate Setting
To select correct frame rate according to the input source. The
frame rate should be the same as that of input source.
PCR PID
To edit the PCR PID.
Video PID
To edit the video PID.
Audio PID
To edit the audio PID.
PMT PID
To edit the PMT PID.
Service ID
To Edit the Service ID.
Transport Stream ID
To edit the transport stream ID.
Program Name
To edit the program name.
Provider Name
To edit the program provider name.
Video Standard
Select the video standard from PAL, PAL-M, PAL-N, NTSC and
Automatic
After setting all the parameters, you should press ‘Apply’ button to save the settings.
 Status

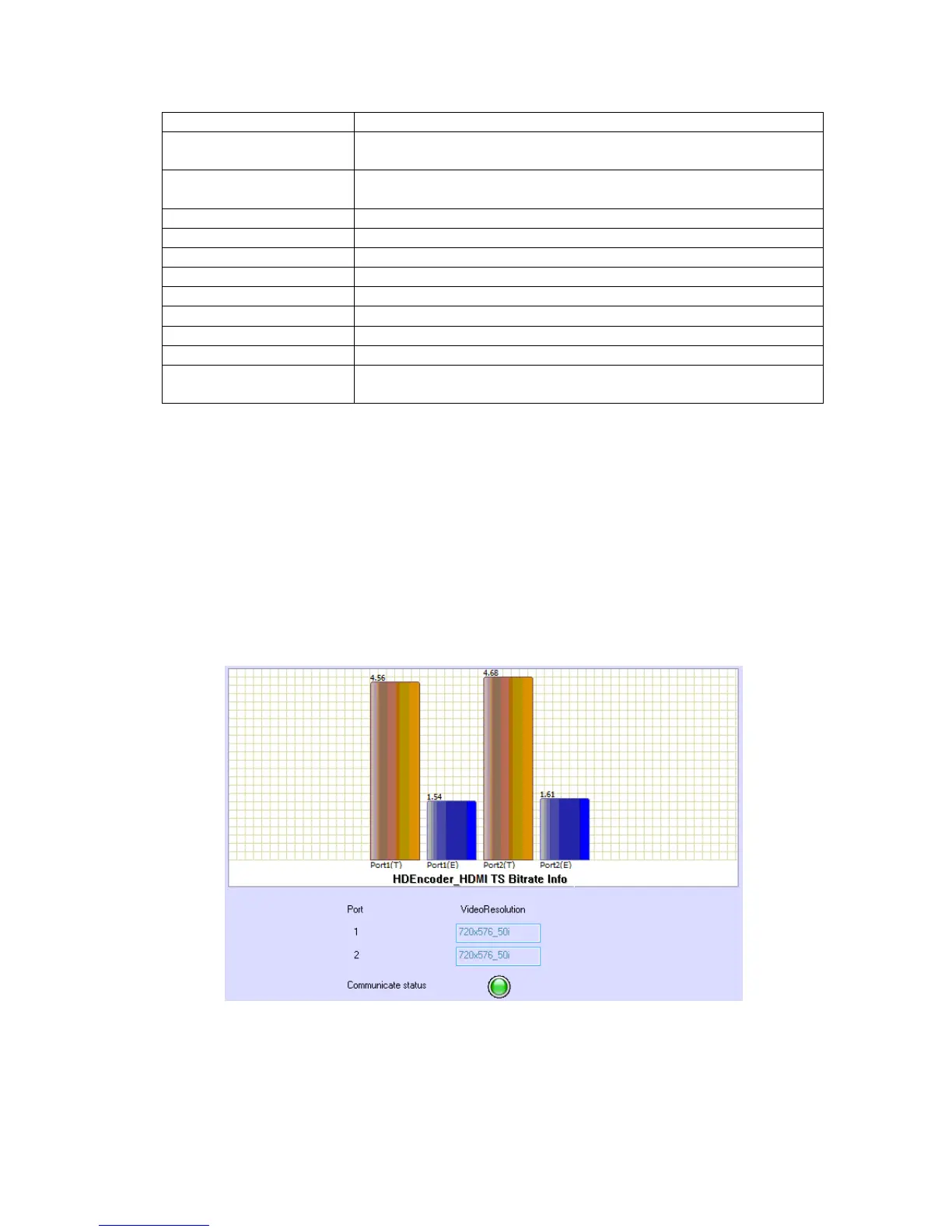

Go to “Status” tab and click sub-tab “HD-Encoder_HDMI”. The parameters of this part are
derived from the input signal; they will be gotten automatically when the input signal is available,
and cannot be changed by the user.
Pic-3.1-52
