Technaxx TX-29 User Manual

21

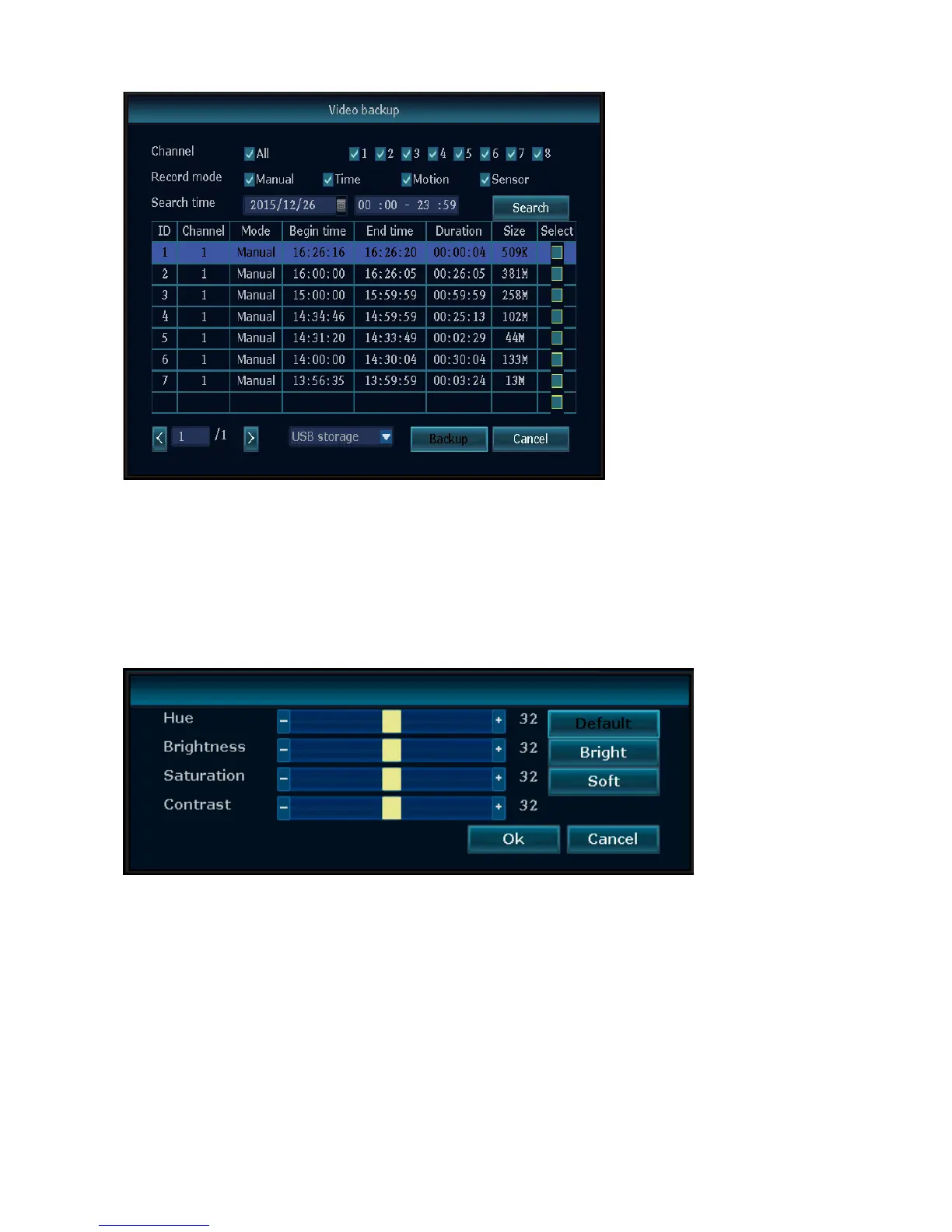

5.6 Color adjust
Before you can adjust the color you have to switch via the split screen function to the
channel you want to adjust. Then click the mouse right button on the main interface 
Color Adjust. Now on the right bottom appears a window where you can set the Hue,
Brightness, Saturation and Contrast. You can also choose from the presetting bright or soft.
If you don’t like the made changes press default to reset.
5.7 PTZ control (not for included cameras)
Open the menu by clicking the mouse right button on the main interface  PTZ control. On
the right bottom will be opened a window where you can vertical and horizontal move the
camera. You can also set a preset, start a tour, and zoom.

Technaxx TX-29 Specifications

General

LED type	IR
Rotating	-
Megapixel	1 MP
Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	Wi-Fi/RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	1
Fixed focal length	4 mm
Optical sensor size	1/4 \
Placement supported	Indoor
Camera shutter speed	1/25 - 1/25000 s
Minimum illumination	0.01 lx
Night vision distance	15 m
Connectivity technology	Wired & Wireless
Surveillance camera form factor	Bullet
International Protection (IP) code	IP66
Placement	Table, Wall
Display type	LCD
Display diagonal	10.1 \
HDD size	2.5 \
Video in	AV
HDD interface	Serial ATA
Channels quantity	- channels
Storage media type	HDD
USB 2.0 ports quantity	2
Maximum internal memory	4000 GB
Supported network protocols	UPnP, SMTP (SSL), PPPoE, DHCP, DDNS
Supported video modes	720p
Video compression formats	H.264
Ethernet interface type	Fast Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	150 mm
Camera width	97 mm
Camera height	87 mm
Camera weight	550 g
Display depth	250 mm
Display width	36 mm
Display height	166 mm
Display weight	1000 g
