4.3 Hard disk installation
Note: Select HDD (See chapter 11. Attachment) and suitable for devices. HDD needs to be
formatted manually for normal recording. HDD is needed for recording (Time, Motion,
Sensor), playback of recordings, saving log files and sending out Push Notifications.
TX-29 (HDD has to be 2.5 inch, max. 4TB)

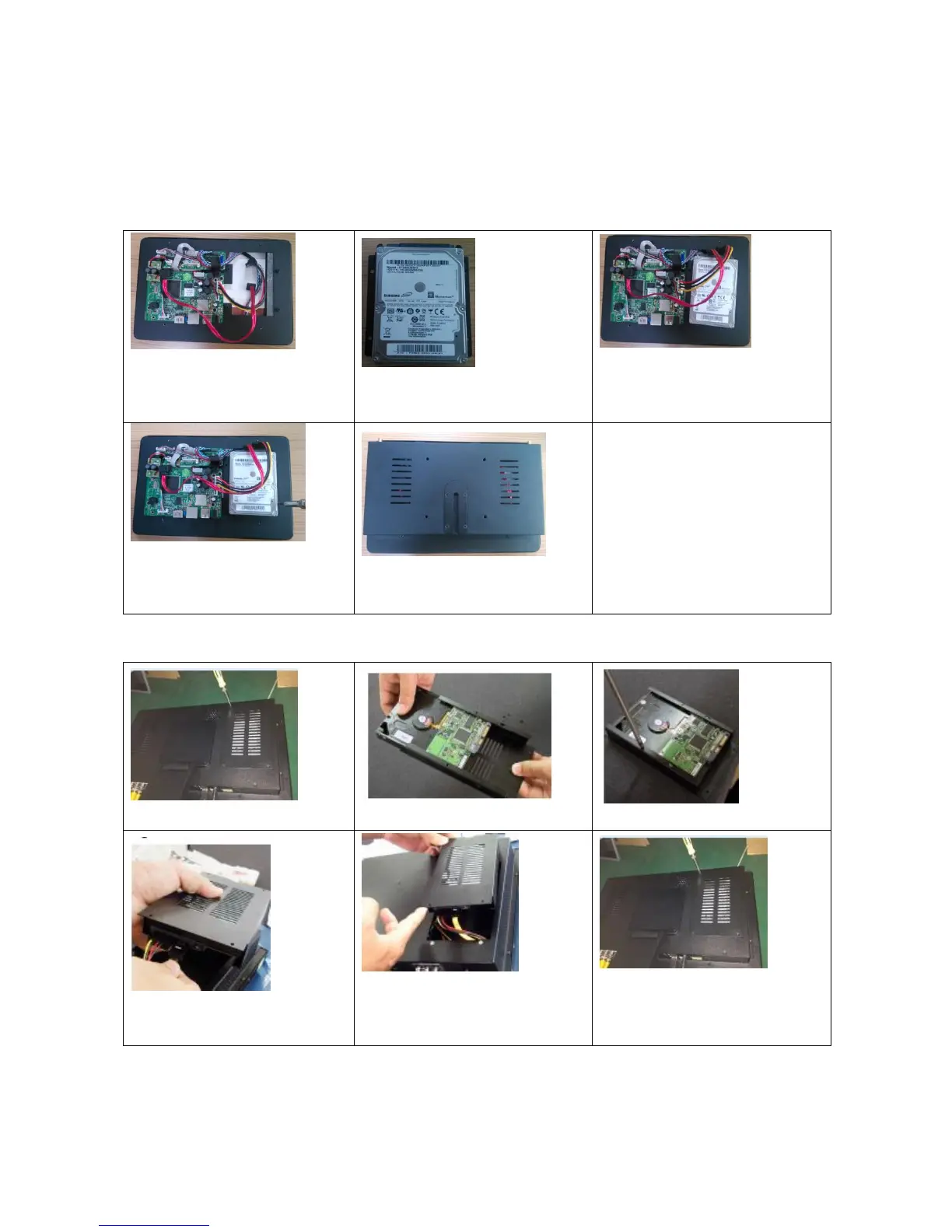

1. Remove the screws of
the device back cover.
2. Combine the HDD bracket
and HDD with screws.
3. Connect the data and
power cable.
4. Fix HDD to the device
mid-plate with screws.
5. Fix the back cover with
screws.
TX-30 (HDD has to be 3.5 inch, max. 4TB)
1. Remove the HDD cover.
2. Put in the HDD
3. Fix HDD with screws
4. Connect the data and
power cable.
5. Place the HDD cover
back on.
6. Fix the HDD cover with
screws.

Technaxx TX-29 Specifications

General

LED type	IR
Rotating	-
Megapixel	1 MP
Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	Wi-Fi/RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	1
Fixed focal length	4 mm
Optical sensor size	1/4 \
Placement supported	Indoor
Camera shutter speed	1/25 - 1/25000 s
Minimum illumination	0.01 lx
Night vision distance	15 m
Connectivity technology	Wired & Wireless
Surveillance camera form factor	Bullet
International Protection (IP) code	IP66
Placement	Table, Wall
Display type	LCD
Display diagonal	10.1 \
HDD size	2.5 \
Video in	AV
HDD interface	Serial ATA
Channels quantity	- channels
Storage media type	HDD
USB 2.0 ports quantity	2
Maximum internal memory	4000 GB
Supported network protocols	UPnP, SMTP (SSL), PPPoE, DHCP, DDNS
Supported video modes	720p
Video compression formats	H.264
Ethernet interface type	Fast Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	150 mm
Camera width	97 mm
Camera height	87 mm
Camera weight	550 g
Display depth	250 mm
Display width	36 mm
Display height	166 mm
Display weight	1000 g
