Technaxx TX-29 User Manual

12

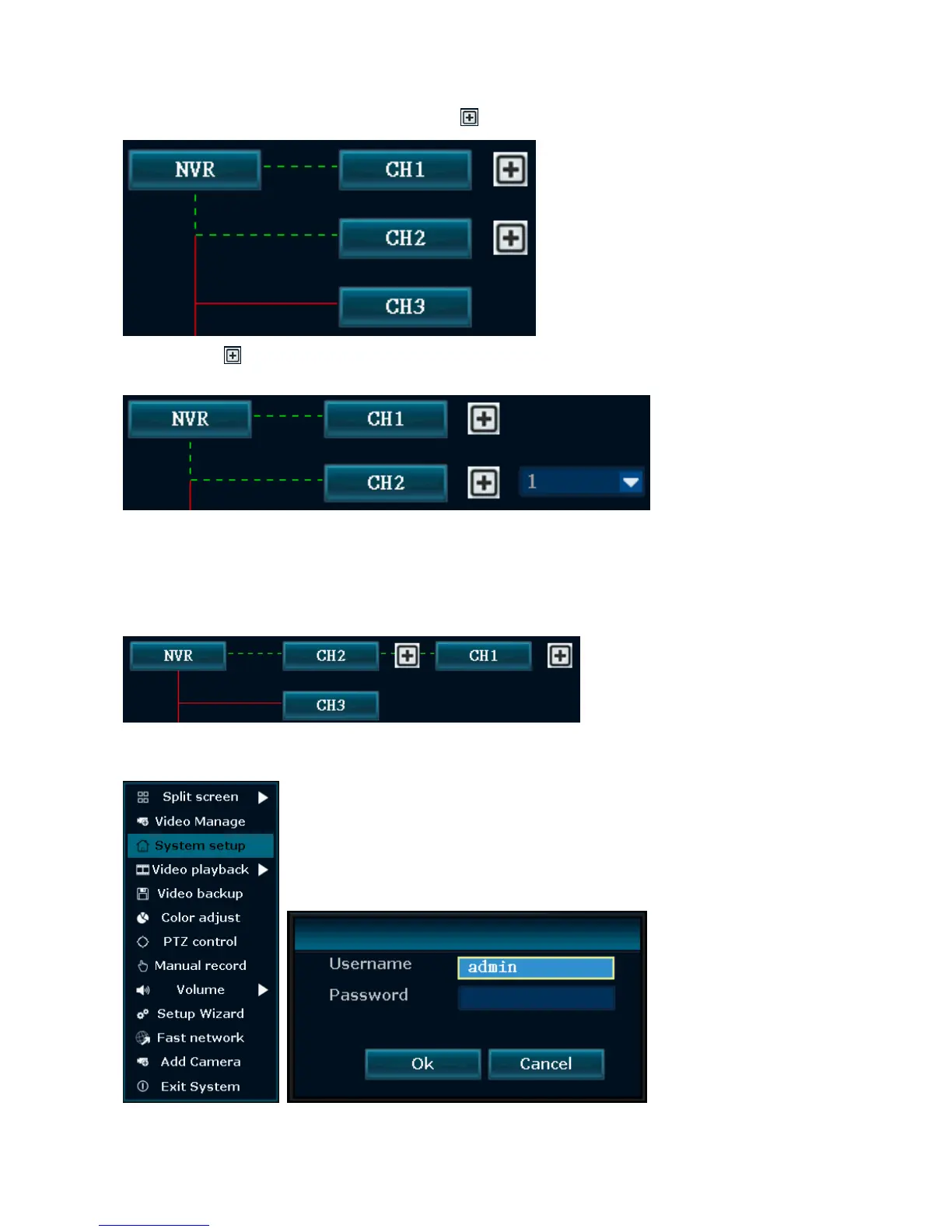

Both cameras must be first connected to the NVR (see chapter 4.4) and should be nearby
to the NVR and each other. Now press the button and see next step.
By pressing button a dropdown menu opens. Select the channel number (camera) that
you want to connect to the repeater.
After adding you can see the picture on the right. Both cameras are in a row. If you are sure
you want to configure press on Apply or OK to save the option. Tip: Now first try to find the
right place of range and connection before you firmly attach the cameras to the wall. Note:
If you finish this setup and you want to reconnect the second camera to the NVR again go
to chapter 4.4.
5.3 System setup

Technaxx TX-29 Specifications

General

LED type	IR
Rotating	-
Megapixel	1 MP
Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	Wi-Fi/RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	1
Fixed focal length	4 mm
Optical sensor size	1/4 \
Placement supported	Indoor
Camera shutter speed	1/25 - 1/25000 s
Minimum illumination	0.01 lx
Night vision distance	15 m
Connectivity technology	Wired & Wireless
Surveillance camera form factor	Bullet
International Protection (IP) code	IP66
Placement	Table, Wall
Display type	LCD
Display diagonal	10.1 \
HDD size	2.5 \
Video in	AV
HDD interface	Serial ATA
Channels quantity	- channels
Storage media type	HDD
USB 2.0 ports quantity	2
Maximum internal memory	4000 GB
Supported network protocols	UPnP, SMTP (SSL), PPPoE, DHCP, DDNS
Supported video modes	720p
Video compression formats	H.264
Ethernet interface type	Fast Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	150 mm
Camera width	97 mm
Camera height	87 mm
Camera weight	550 g
Display depth	250 mm
Display width	36 mm
Display height	166 mm
Display weight	1000 g
