Technaxx TX-29 User Manual

7
4.1 How to install TX-29 & TX-30
See figure 4-1 above and follow the steps below.
① Plug in the included USB mouse to one of the USB connector.
② Connect the output of the supplied 12V power adapter into the power socket on the
NVR.
③ Plug the power adapter into the wall socket.
④ Connect the output of the supplied 12V power adapter into the power socket on the
Camera.
⑤ Plug the power adapter into the wall socket.
Wait for a few minutes till the TX-29/TX-30 and the IP camera finished startup. So far, the
local surveillance system was done.
⑥ If you want to remote access this system with a Smartphone or computer, you should
connect the TX-29/TX-30 to your home wireless router with a RJ45 network cable and
make sure the router has been linked to internet. For Smartphone installation see chapter
6.3 Mobile application (Security Premium).

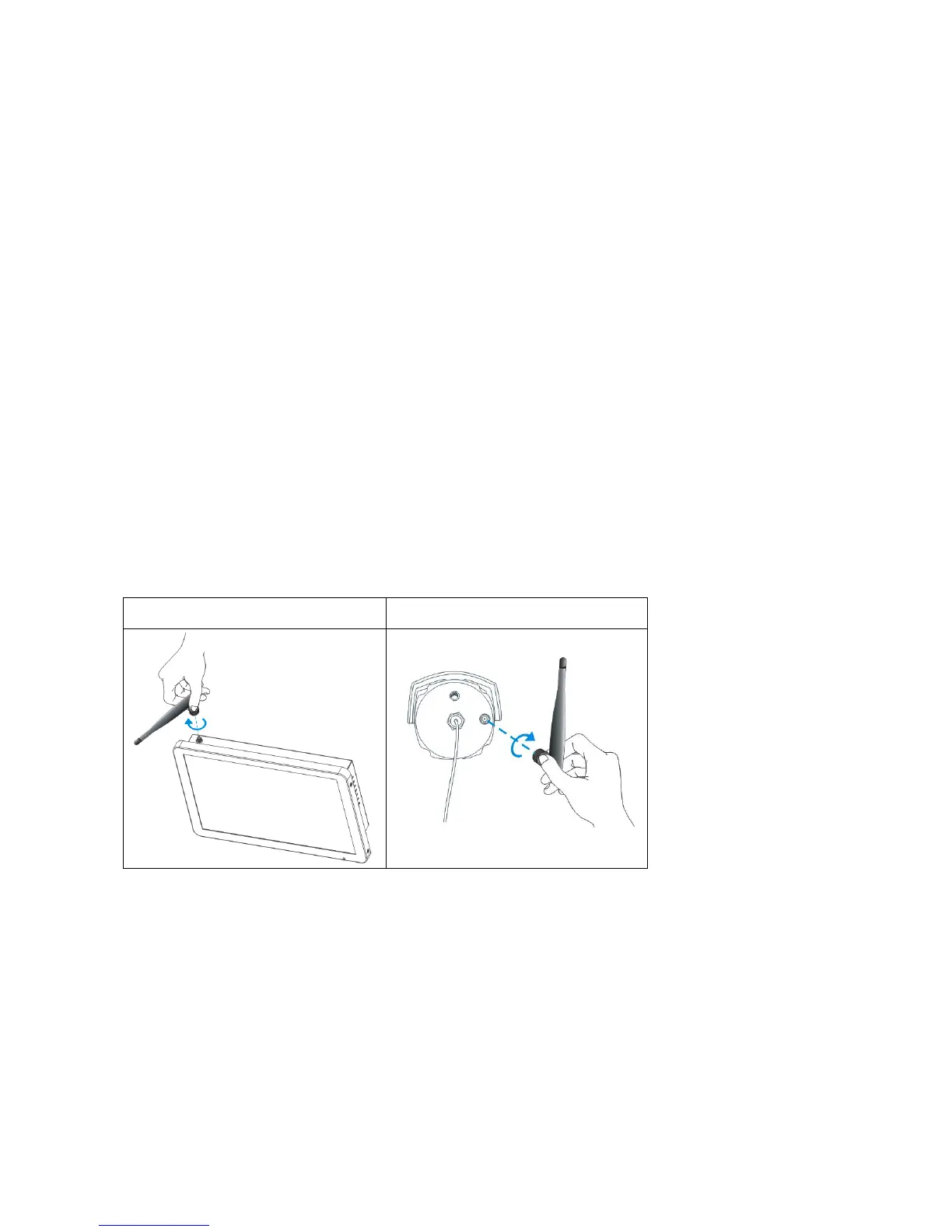

4.2 Antenna installation
Use a clockwise motion to connect the antenna. Make sure the antenna is connected firmly
but not excessively. You can adjust antenna horizontal or vertical direction to get best
reception.
Monitor
Camera

Technaxx TX-29 Specifications

General

LED type	IR
Rotating	-
Megapixel	1 MP
Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	Wi-Fi/RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	1
Fixed focal length	4 mm
Optical sensor size	1/4 \
Placement supported	Indoor
Camera shutter speed	1/25 - 1/25000 s
Minimum illumination	0.01 lx
Night vision distance	15 m
Connectivity technology	Wired & Wireless
Surveillance camera form factor	Bullet
International Protection (IP) code	IP66
Placement	Table, Wall
Display type	LCD
Display diagonal	10.1 \
HDD size	2.5 \
Video in	AV
HDD interface	Serial ATA
Channels quantity	- channels
Storage media type	HDD
USB 2.0 ports quantity	2
Maximum internal memory	4000 GB
Supported network protocols	UPnP, SMTP (SSL), PPPoE, DHCP, DDNS
Supported video modes	720p
Video compression formats	H.264
Ethernet interface type	Fast Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	150 mm
Camera width	97 mm
Camera height	87 mm
Camera weight	550 g
Display depth	250 mm
Display width	36 mm
Display height	166 mm
Display weight	1000 g
