4.4 Add camera to TX-29/TX-30
The included camera in the kit have been paired with NVR at the factory, no need execute
this operation. If you want to add more cameras to NVR, follow the below steps:

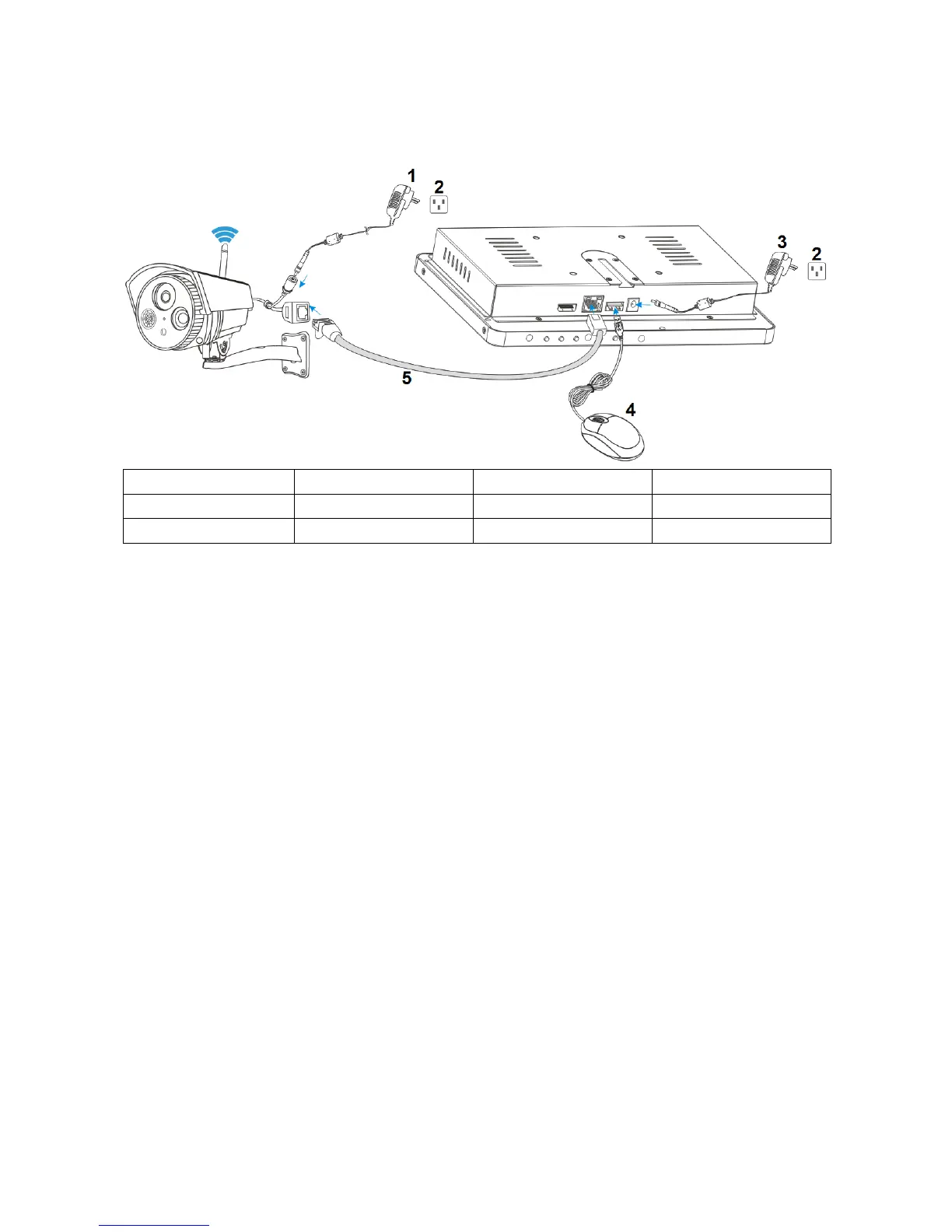

1
DC12V/1A
4
USB Mouse
2
AC Wall Socket
5
RJ45 Cable
3
DC12V/2A/3A
① Connect a new IP camera to the NVR with a network cable, then power the IP camera
on, wait for about 1 minute.
② Click the mouse right button on the main interface and click “Video Manage” Select
the protocol “N1” and press “refresh”->select the camera in the search list and press “Match
code” and answer with yes.
Note: Match code only works with cameras of the TX-29 or TX-30 system (additional
cameras).
③ After about 30 seconds the new camera will be occurred in the “added device” list, and
status displays ”Connect success”. Now the camera is connected via WIFI with the NVR,
④ After the camera has successfully connected with the NVR either connect more
cameras or unplugs the network cable from the camera and plug it back into the router or
NVR depending which network cable you used
⑤ Now you can place the camera up to 40m (open field) away of the NVR. It is also
possible to use the repeater function of the camera if you have at least two cameras. For
repeater function see chapter 5.2 Video Manage.
Note: It is also possible to connect the camera and NVR by network cable to the router or
the same network. The camera should be nearby the router. When you have set this up you
can go on with step ② above.

Technaxx TX-29 Specifications

General

LED type	IR
Rotating	-
Megapixel	1 MP
Sensor type	CMOS
Heat function	No
Camera included	Yes
Camera interface	Wi-Fi/RJ-45
Camera resolution	1280 x 720 pixels
Number of cameras	1
Fixed focal length	4 mm
Optical sensor size	1/4 \
Placement supported	Indoor
Camera shutter speed	1/25 - 1/25000 s
Minimum illumination	0.01 lx
Night vision distance	15 m
Connectivity technology	Wired & Wireless
Surveillance camera form factor	Bullet
International Protection (IP) code	IP66
Placement	Table, Wall
Display type	LCD
Display diagonal	10.1 \
HDD size	2.5 \
Video in	AV
HDD interface	Serial ATA
Channels quantity	- channels
Storage media type	HDD
USB 2.0 ports quantity	2
Maximum internal memory	4000 GB
Supported network protocols	UPnP, SMTP (SSL), PPPoE, DHCP, DDNS
Supported video modes	720p
Video compression formats	H.264
Ethernet interface type	Fast Ethernet
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Camera depth	150 mm
Camera width	97 mm
Camera height	87 mm
Camera weight	550 g
Display depth	250 mm
Display width	36 mm
Display height	166 mm
Display weight	1000 g
