Technicolor CGM4231 - Page 79

1/8/2018 Proprietary and Confidential - Technicolor 79

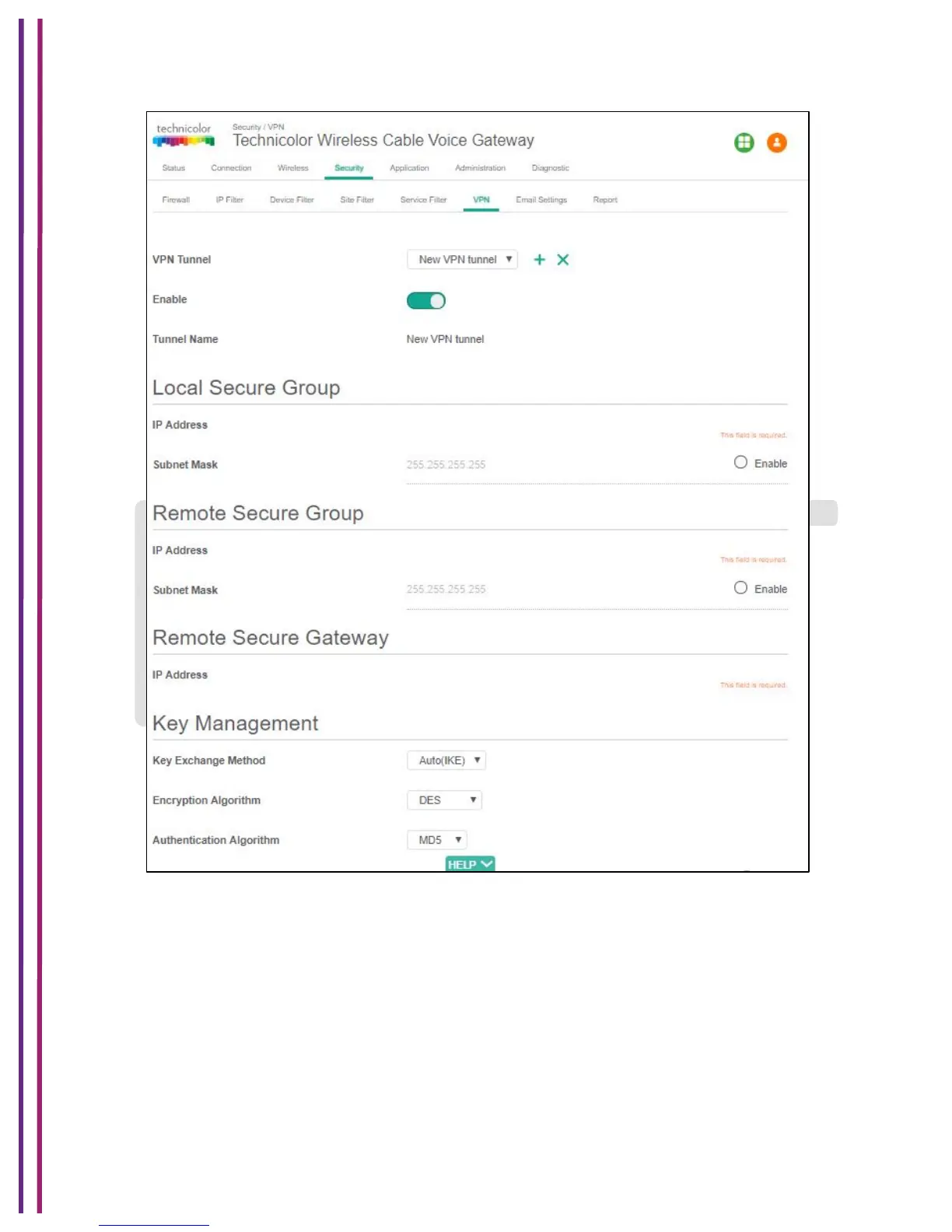

Figure 8.8
VPN Tunnel
Select Tunnel Entry: Select a tunnel to configure.
+ Button: Click this button to create a new tunnel.
‘X’ Button: Click this button to delete all settings for the
selected tunnel.
Enable
To Enable VPN Tunnel
Tunnel Name:
Enter a name for this tunnel, such as London Office.
Local Secure Group
Select the local LAN user(s) that can use this VPN tunnel.
This may be a single IP address or sub--network. Note that
the Local Secure Group must match the remote gateway's
