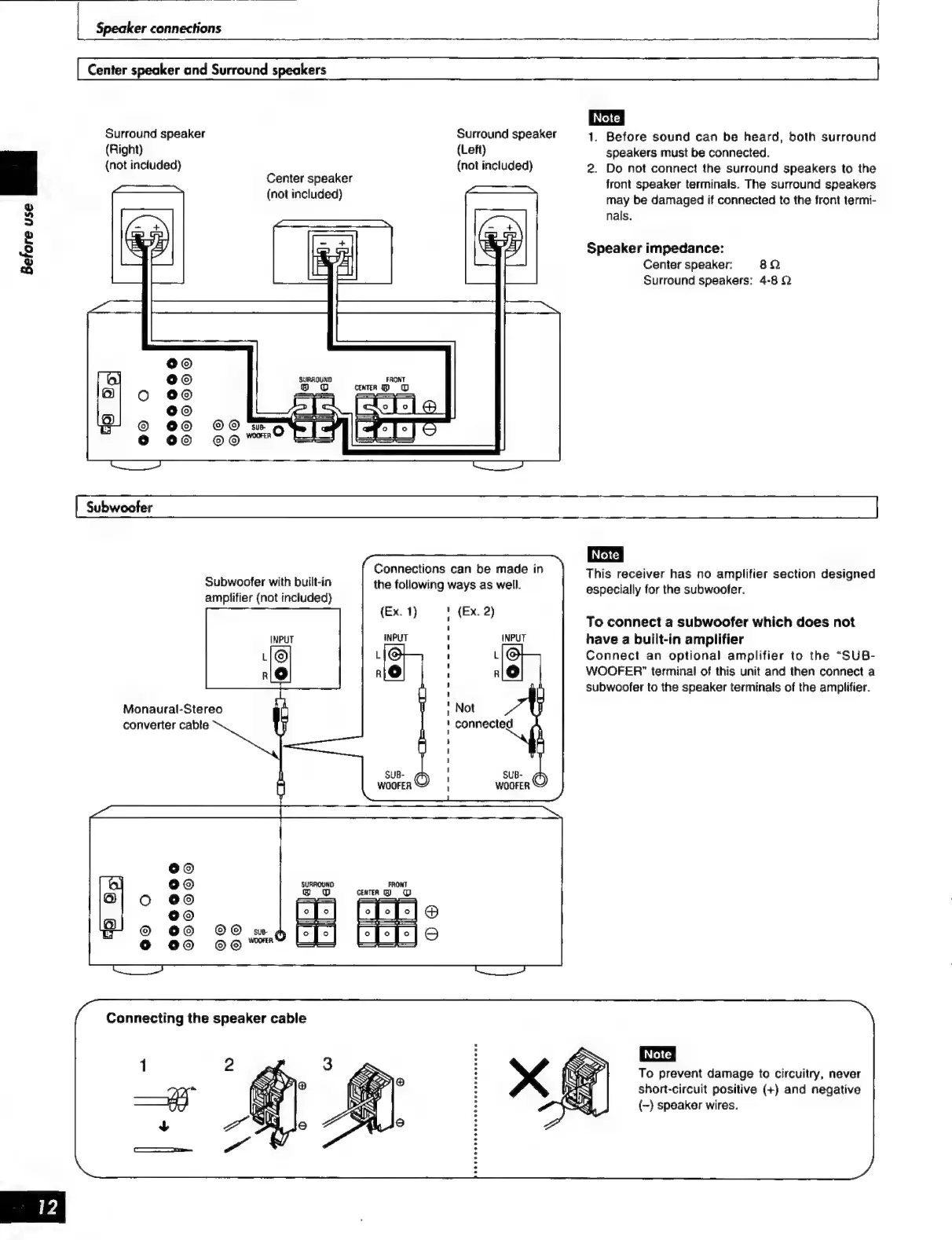

| Speaker connections |
Before use m
Center speaker and Surround speakers
Surround speaker Surround speaker 1. Before sound can be heard, both surround
(Right) (Left) speakers must be connected.
(not included) (not included) 2. Do not connect the surround speakers to the
Center speaker
front speaker terminals. The surround speakers
(not included) E р
may be damaged if connected to the front termi-
nals.
Speaker impedance:
Center speaker: во
Surround speakers: 4-8 Q
mem Connections can be made in This receiver has no amplifier section designed
эшо Ше WiN Брич the following ways as well. especially for the subwoofer
amplifier (not included) :
(Ex 1) — ' (Ex. 2)
To connect a subwoofer which does not
INPUT
have
a
built-in
amplifier
Connect an optional amplifier to the “SUB-
WOOFER" terminal of this unit and then connect a
subwoofer to the speaker terminals of the amplifier.
Monaural-Stereo
converter cable
To prevent damage to circuitry, never
short-circuit positive (+) and negative
(-) speaker wires.
