Technics SA-EX320 Operating Instructions

Operation Ш
Front Center Front | —
speaker speaker (Right)
speaker (Left)
Surround
speaker (Right)
Surround
speaker (Left)
Front Су, Center Front
speaker (Left) | I speaker speaker (Right)
S IF
2 C13 о
For SURROUND mode
SURROUND
3 STEREO
пале
ІШІ ГТ HG 114
І
| . * *

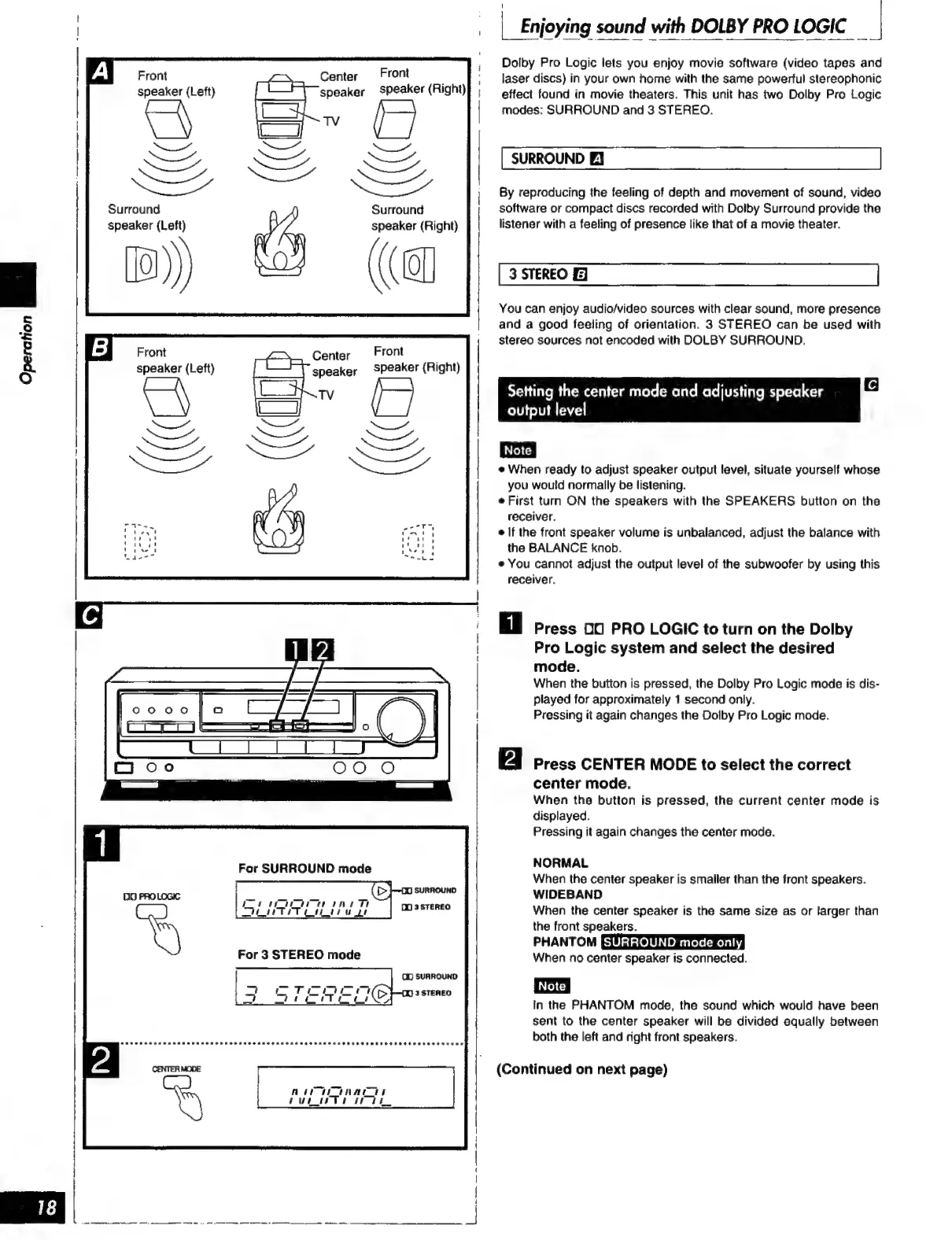

| Enjoying sound with DOLBY PRO LOGIC |
Dolby Pro Logic lets you enjoy movie software (video tapes and
laser discs) in your own home with the same powerful stereophonic
effect found in movie theaters. This unit has two Dolby Pro Logic
modes: SURROUND and 3 STEREO.
SURROUND Я
By reproducing the feeling of depth and movement of sound, video
software or compact discs recorded with Dolby Surround provide the
listener with a feeling of presence like that of a movie theater.
3 STEREO Б
You can enjoy audio/video sources with clear sound, more presence
and a good feeling of orientation. 3 STEREO can be used with
stereo sources not encoded with DOLBY SURROUND.
Setting the center mode and adjusting speaker
output level
Note |
e When ready to adjust speaker output level, situate yourself whose
you would normally be listening.
e First turn ON the speakers with the SPEAKERS button on the
receiver.
e Її the front speaker volume is unbalanced, adjust the balance with
the BALANCE knob.
e You cannot adjust the output level of the subwoofer by using this
receiver.
Press 00 PRO LOGIC to turn on the Dolby
Pro Logic system and select the desired
mode.
When the button is pressed, the Dolby Pro Logic mode is dis-
played for approximately 1 second only.
Pressing it again changes the Dolby Pro Logic mode.
Press CENTER MODE to select the correct
center mode.
When the button is pressed, the current center mode is
displayed.
Pressing it again changes the center mode.
NORMAL
When the center speaker is smaller than the front speakers.
WIDEBAND
When the center speaker is the same size as or larger than
the front speakers.
PHANTOM
When no center speaker is connected.
їп the PHANTOM mode, the sound which would have been
sent to the center speaker will be divided equally between
both the left and right front speakers.
(Continued on next page)
