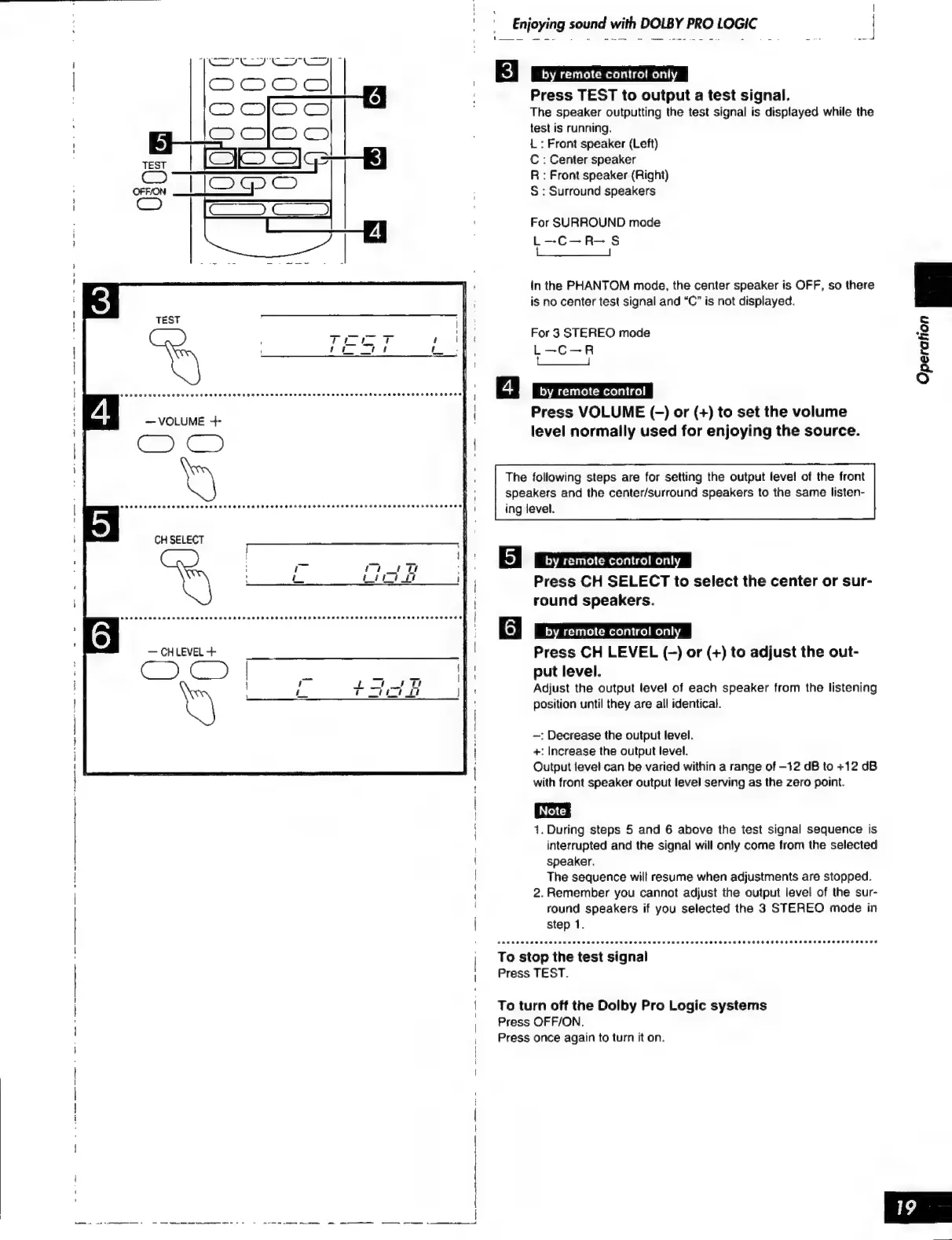

| | Enjoying sound with DOLBY PRO LOGIC
by remote control onl
Press TEST to output a test signal.
The speaker outputting the test signal is displayed while the
test is running.
L : Front speaker (Left)
C : Center speaker
R : Front speaker (Right)
5 : Surround speakers
CCI COG)
абдал дар Seep eines | |
' For SURROUND mode
| L—C—R-—S
| РАДА 7.
{п the PHANTOM mode, the center speaker is OFF, so there
is no center test signal and “С” is not displayed.
For 3 STEREO mode
L—C—R
tL.
NETS 4
| Press VOLUME (-) or (+) to set the volume
level normally used for enjoying the source.
— VOLUME +
The following steps are for setting the output level of the front
speakers and the center/surround speakers to the same listen-
ing level.
by remote control oni
Press CH SELECT to select the center or sur-
round speakers.
g
Press CH LEVEL (-) or (+) to adjust the out-
put level.
Adjust the output level of each speaker from the listening
position until they are all identical.
-: Decrease the output level.
+: Increase the output level.
Output level can be varied within a range of —12 dB to +12 dB
with front speaker output level serving as the zero point.
1. During steps 5 and 6 above the test signal sequence is
interrupted and the signal will only come from the selected
speaker.
The sequence will resume when adjustments are stopped.
2. Remember you cannot adjust the output level of the sur-
| round speakers if you selected the 3 STEREO mode in
| step 1.
«ачвасоваонасвьнорченовусорчереввчечовитьсоовче %%%ее%06%0900%6%еееааепчевтетттетчоте
| То stop the test signal
| Press TEST.
To turn off the Dolby Pro Logic systems
Press OFF/ON.
Press once again to turn it on.
