Technics SA-EX320 Operating Instructions

Operation ШЕ
O sa~
prm
© Gu
MIN MAX
@ PHONES
Headphones
(not included)

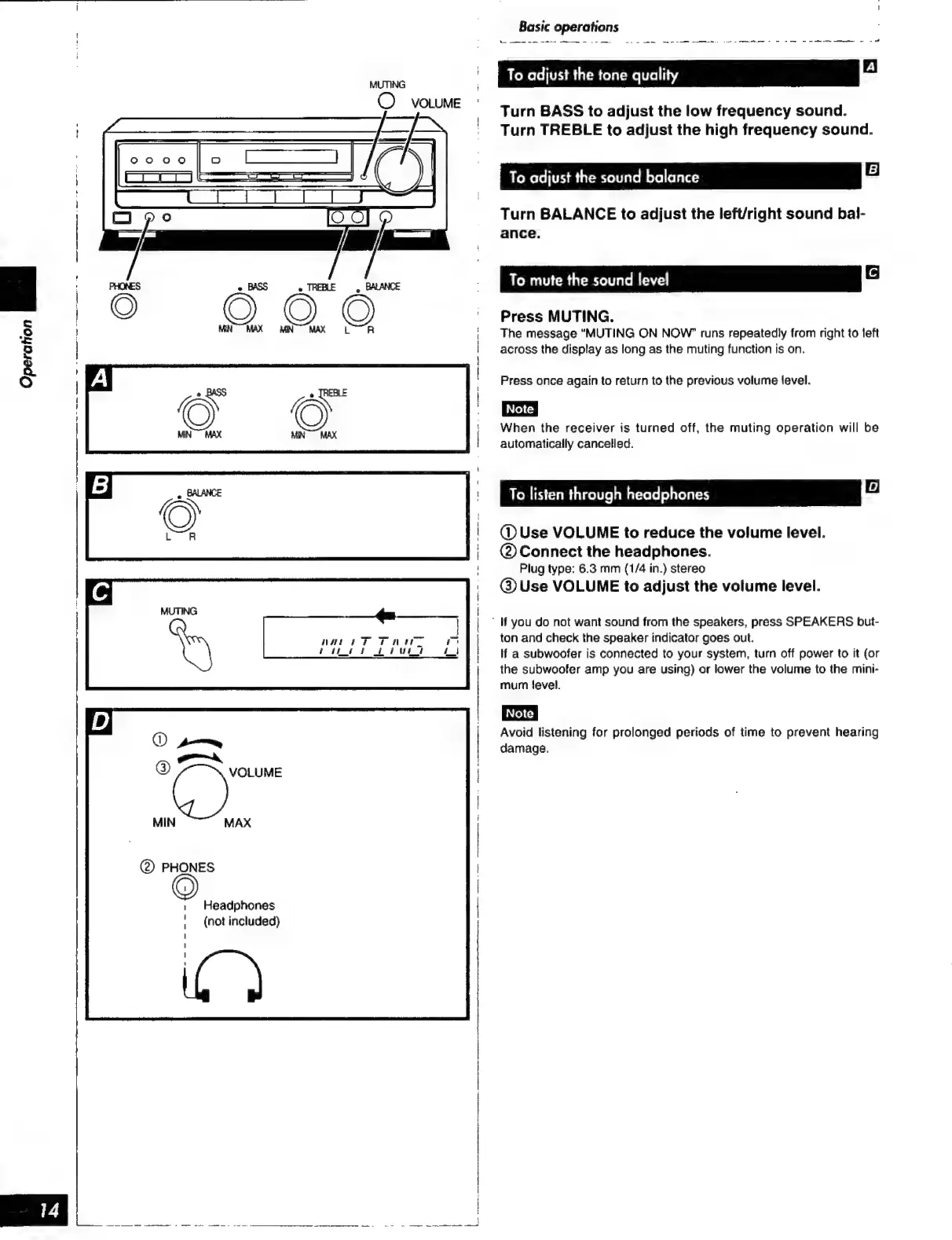

Basic operations
Re eee РР ne РЕНІ wey ны, тіласты tee н aged eee: SS) Sp е eee ee el,
To
adjust
the
tone
quality
Er
Turn BASS to adjust the low frequency sound.
Turn TREBLE to adjust the high frequency sound.
To adjust the sound balance E
Turn BALANCE to adjust the left/right sound bal-
ance.
To mute the sound level
Press MUTING.
The message "MUTING ON NOW" runs repeatedly from right to left
across the display as long as the muting function is on.
Press once again to return to the previous volume level.
When the receiver is turned off, the muting operation will be
automatically cancelled.
To listen through headphones B
(DUse VOLUME to reduce the volume level.
@ Connect the headphones.
Plug type: 6.3 mm (1/4 in.) stereo
@ Use VOLUME to adjust the volume level.
` If you do not want sound from the speakers, press SPEAKERS but-
ton and check the speaker indicator goes out.
If a subwoofer is connected to your system, turn off power to it (or
the subwoofer amp you are using) or lower the volume to the mini-
mum level.
Avoid listening for prolonged periods of time to prevent hearing
damage.

Technics SA-EX320 Specifications

General

Tuning Range	FM, MW
Total Harmonic Distortion	0.08%
Signal to Noise Ratio	80 dB (MM)
Speaker Load Impedance	8Ω to 16Ω
Input Sensitivity/Impedance	2.5mV/47kΩ (MM)
Speaker Impedance	6 Ω - 16 Ω
