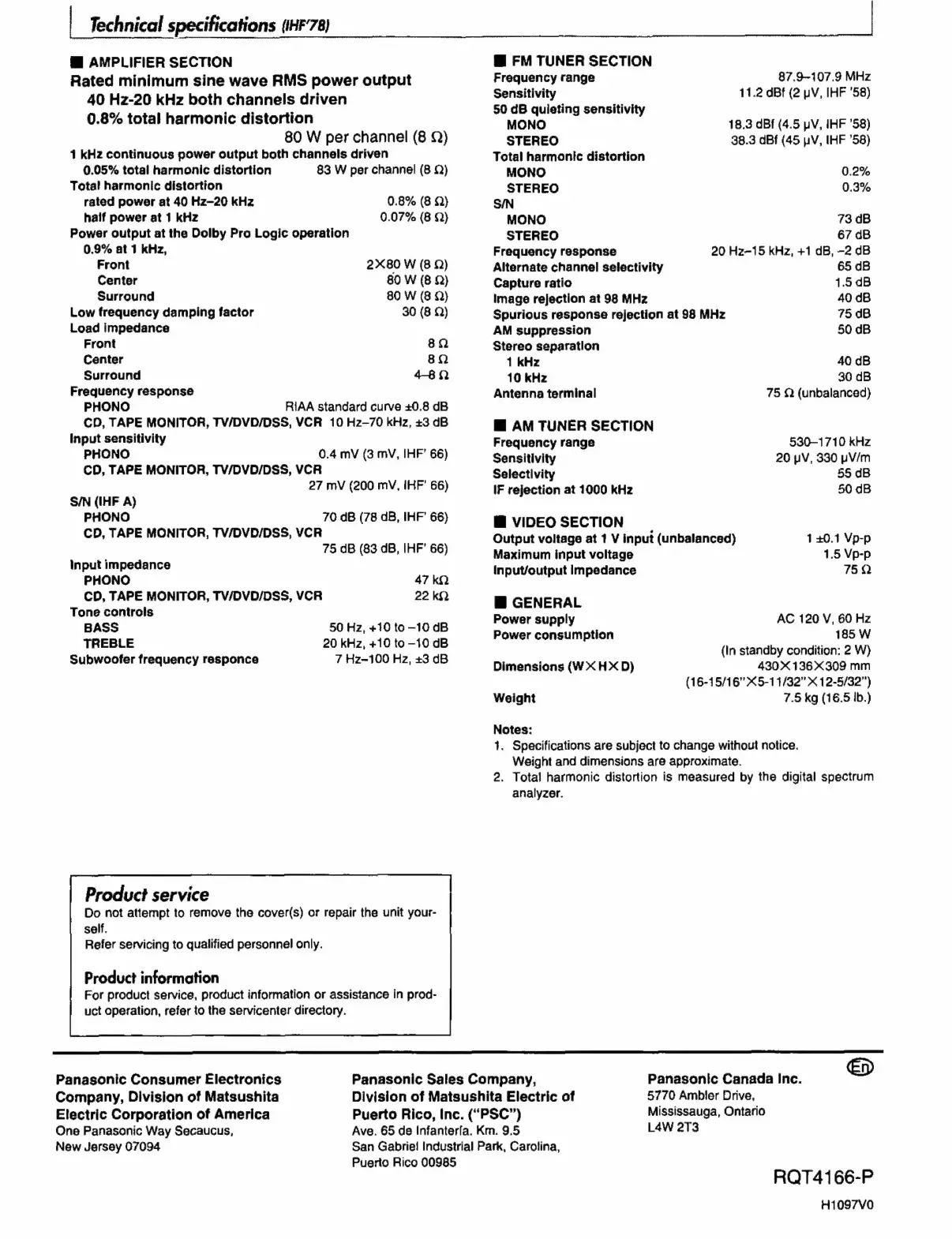

Technics SA-EX320 Operating Instructions

| Technical specifications (IHF'78)
Ш AMPLIFIER SECTION
Rated minimum sine wave RMS power output
40 Hz-20 kHz both channels driven
0.896 total harmonic distortion
80 W per channel (8 Q)
1 kH2 continuous power output both channels driven
0.05% total harmonic distortion 83 W per channel (8 0)
Total harmonic distortion
rated power at 40 Hz-20 kHz 0.8% (8 Q)
half power at 1 kHz 0.07% (8 9)
Power output at the Dolby Pro Logic operation
0.9% at 1 kHz,
Front 2X80 W (8 Q)
Center 80 W (8 Q)
Surround 80 W (8 Q)
Low frequency damping factor 30 (8 Q)
Load impedance
Front во
Center 8Q
Surround 4-80
Frequency response
PHONO RIAA standard curve +0.8 dB
CD, TAPE MONITOR, TV/DVD/DSS, VCR 10 Hz-70 kHz, +3 dB
Input sensitivity
PHONO 0.4 mV (3 mV, IHF’ 66)
CD, TAPE MONITOR, TV/DVD/DSS, VCR
27 mV (200 mV, IHF’ 66)
S/N (IHF A)
PHONO
CD, TAPE MONITOR, TV/DVD/DSS, VCR
75 dB (83 АВ, IHF’ 66)
70 dB (78 dB, IHF’ 66)
Input impedance
PHONO 47 КО
CD, TAPE MONITOR, TV/DVD/DSS, VCR 22 ко
Tone controls
BASS 50 Hz, +10 to -10 dB
TREBLE 20 kHz, +10 to -10 dB
Subwoofer frequency responce 7 Hz-100 Hz, +3 dB
Product service
Do not attempt to remove the cover(s) or repair the unit your-
self.
Refer servicing to qualified personnel only.
Product information
For product service, product information or assistance in prod-
uct operation, refer to the servicenter directory.
Ш FM TUNER SECTION
Frequency range 87.9-107.9 MHz
Sensitivity 11.2 dBf (2 uV, IHF '58)
50 dB quieting sensitivity
MONO 18.3 dBf (4.5 pV, IHF '58)
STEREO 38.3 dBf (45 ум, IHF '58)
Total harmonic distortion
MONO 0.296
STEREO 0.396
S/N
MONO 73 dB
STEREO 67 dB
Frequency response 20 Hz-15 kHz, +1 dB, -2 dB
Alternate channel selectivity 65 dB
Capture ratio 1.5 dB
Image rejection at 98 MHz 40 dB
Spurious response rejection at 98 MHz 75 dB
AM suppression 50 dB
Stereo separatlon
1 kHz 40 dB
10 kHz 30 dB
Antenna terminal 75 Q (unbalanced)
Ш AM TUNER SECTION
Frequency range 530-1710 kHz
Sensitivity 20 им, 330 uV/m
Selectivity 55 dB
IF rejection at 1000 kHz 50 dB
Ш VIDEO SECTION
Output voltage at 1 V input (unbalanced) 1 20.1 Vp-p
Maximum input voltage 1.5 Vp-p
Input/output impedance 750
Ш GENERAL
Power supply AC 120 V, 60 Hz
Power consumption 185 W
(In standby condition: 2 W)
Dimensions (WX HX Б) 430X 136х309 mm
(16-15/16" X5-11/32" X 12-5/32")
Weight 7.5 kg (16.5 ib.)
Notes:
1. Specifications are subject to change without notice.
Weight and dimensions are approximate.
2. Total harmonic distortion is measured by the digital spectrum
analyzer.
€»
Panasonic Consumer Electronics Panasonic Sales Company, Panasonic Canada Inc.
Company, Division of Matsushita Division of Matsushita Electric of 5770 Ambler Drive,
Electric Corporation of America Puerto Rico, Inc. (“PSC”) Mississauga, Ontario
One Panasonic Way Secaucus, Ave. 65 de Infantería. Km. 9.5 LAW 273
New Jersey 07094 San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
RQT4166-P
H1097V0

Technics SA-EX320 Specifications

General

Tuning Range	FM, MW
Total Harmonic Distortion	0.08%
Signal to Noise Ratio	80 dB (MM)
Speaker Load Impedance	8Ω to 16Ω
Input Sensitivity/Impedance	2.5mV/47kΩ (MM)
Speaker Impedance	6 Ω - 16 Ω
