RQT7231
10

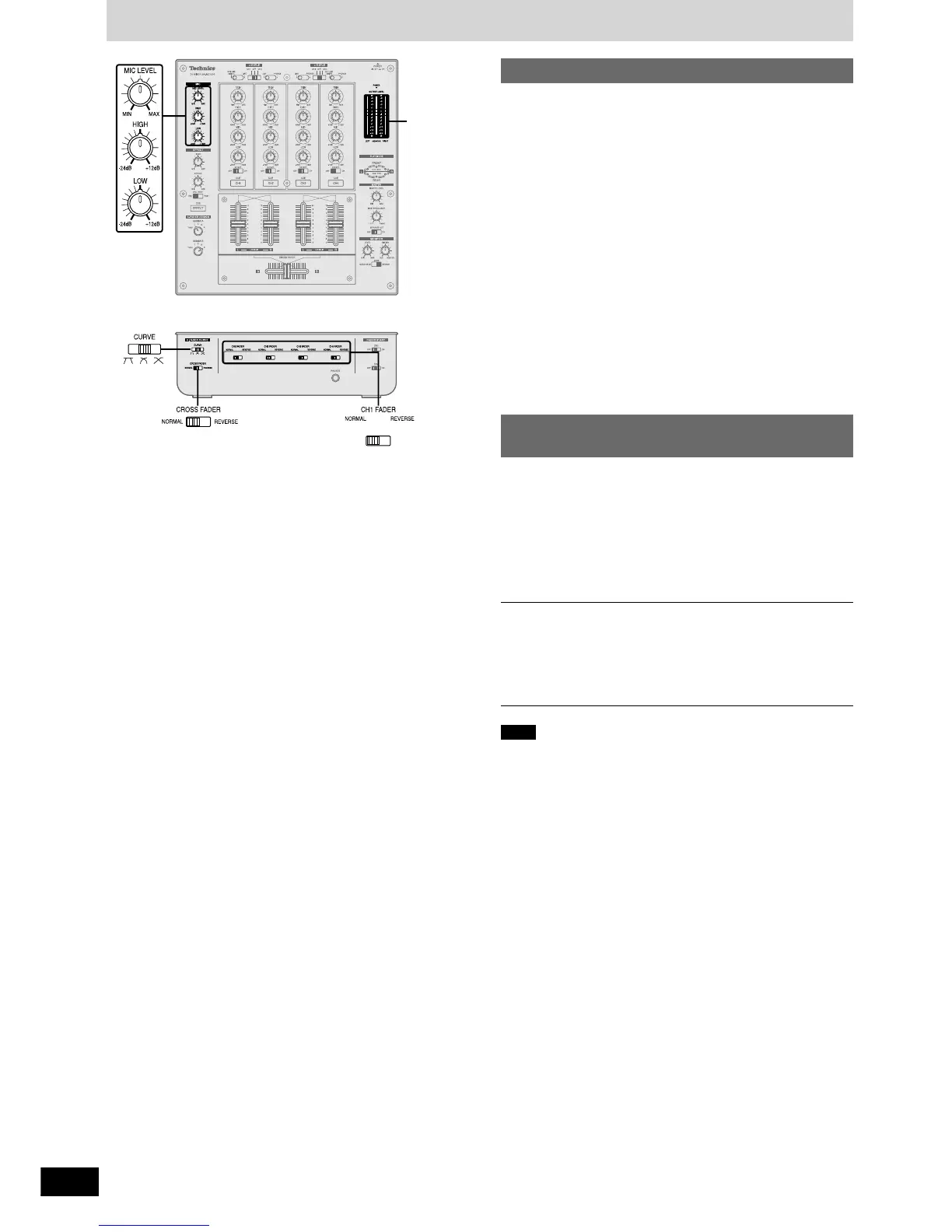

Using the microphone
Turn [MIC LEVEL], [HIGH] and [LOW] to
adjust volume and sound
Adjusts the microphone volume and sound connected
to MIC 1 and MIC 2 terminals.
MIC LEVEL:
Adjusts the microphone volume (Attenuation: – ∞ to 0 dB)
HIGH:
Adjusts the high tone microphone sound. Sound is flat at the center
position.
Turn to the right to increase (to approximately +12 dB at 10 kHz)
Turn to the left to decrease (to approximately –24 dB at 10 kHz)
LOW:
Adjusts the low tone microphone sound. Sound is flat at the center
position.
Turn to the right to increase (to approximately +12 dB at 100 Hz)
Turn to the left to decrease (to approximately –24 dB at 100 Hz)
•Input of MIC 1 and MIC 2 is mixed and output through the MASTER
OUT 1 left (L) and right (R) terminals.
Recording and playing on external
equipment
You can record and play on externally
connected equipment.
Using the REC OUT terminal
The same source as MASTER OUT 1 is output.
Using the DIGITAL OUT terminal
The same digital signal source as MASTER OUT 1 is output.
Even if the MASTER LEVEL or the MASTER BALANCE is changed
the REC OUT or DIGITAL OUT output does not change and recording
or play remains unaffected.
Note
The channel fader and cross fader used with this unit are designed
for extended use however, depending on the way they are being used
(e.g. quick, repetitive movements such as Hip Hop transfer play,etc.)
replacement may be necessary.
•Contact your nearest dealer to have your channel fader and or
cross fader replaced.
•To the dealer:
The “Fader Replacement Instructions” are included with the
replacement product.
Replacement part number
Channel fader (Part No. REP3743A-S)
Cross fader (Part No. REP3742A-S)
OUTPUT
LEVEL
meter
Mixing (Basic operations)
Changing the channel fader, cross fader operation
method
Use the channel fader switch to change the operation method for each
channel.
(e.g. using CH1) Switch [CH1 FADER] and [CROSS FADER]
NORMAL: Operation is as indicated on the panel
REVERSE: Operation is reverse as indicated on the panel
Changing the cross fader curve
Select from 1 of 3 types of cross fader startup curves.
Switch [CURVE]
Output level meter display
•The mixed left (L) and right (R) volume level of the selected channel
(CH1-CH4) is displayed in the LEFT and RIGHT columns of the
output level meter.
Display range: –20 to +8 dB
•Even if the MASTER LEVEL or MASTER BALANCE is changed
the OUTPUT LEVEL meter display does not change.
To Next Page
