Technics SH-MZ1200 User Manual

RQT7231
2
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions
carefully.

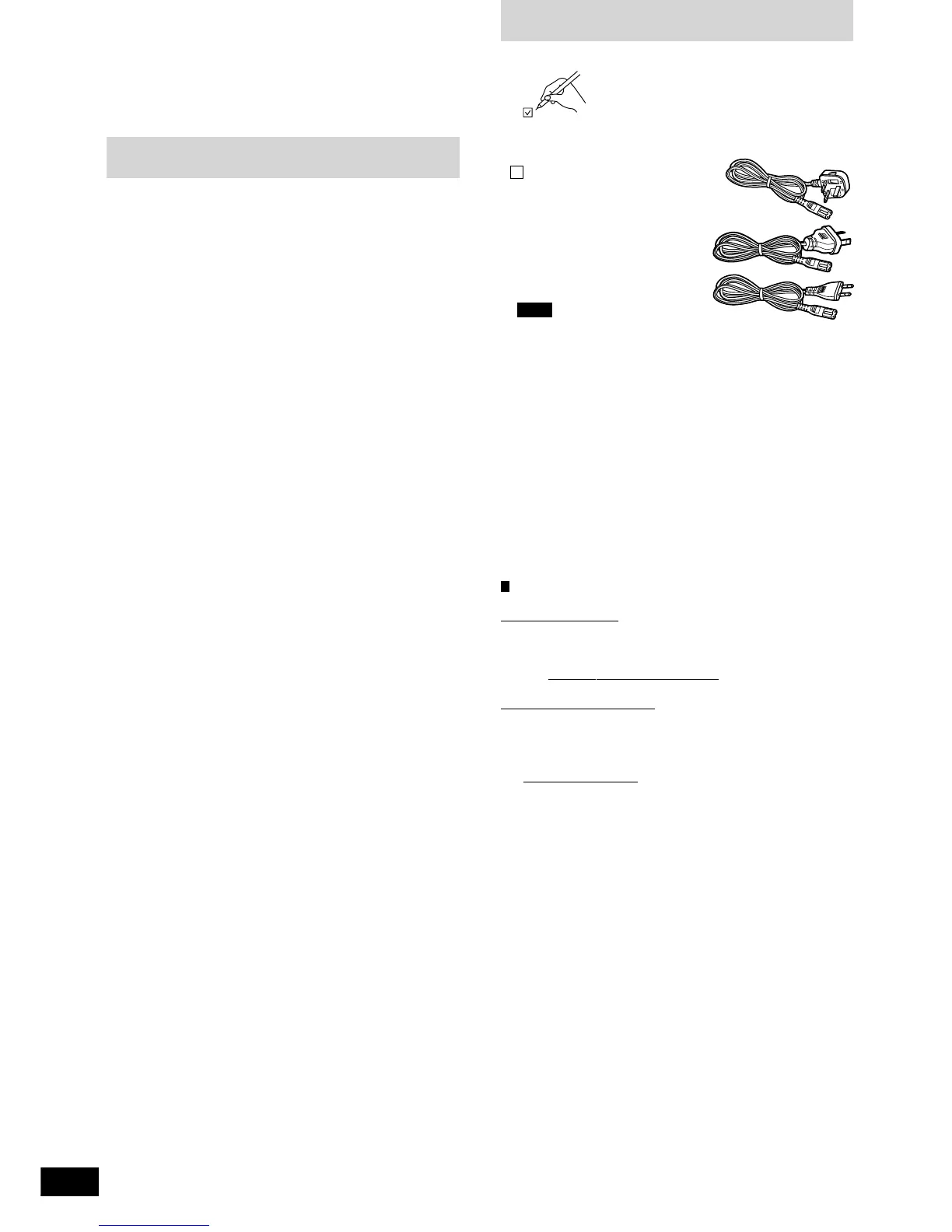

AC mains lead ........................... 1
F or the United Kingdom (RJA0053-3X)
For Australia and New Zealand
(K2CJ2DA00008)
For others (RJA0019-2X)
Note
The included AC mains lead is for use with this unit only.
Do not use it with other equipment.
Sales and Support Information
(For United Kingdom and Republic of Ireland)
Customer Care Centre
•For UK customers: 08705 357357
•For Republic of Ireland customers: 01 289 8333
•Visit our website for product information
•E-mail: customer.care@panasonic.co.uk
Direct Sales at Panasonic UK
•Order accessory and consumable items for your product with ease
and confidence by phoning our Customer Care Centre Monday-
Friday 9:00am-5:30pm. (Excluding public holidays)
•Or go on line through our Internet Accessory ordering application
at www.panasonic.co.uk
•Most major credit and debit cards accepted.
•All enquiries transactions and distribution facilities are provided
directly by Panasonic UK Ltd.
•It couldn’t be simpler!
•Also available through our Internet is direct shopping for a wide
range of finished products, take a browse on our website for further
details.
Supplied accessories
Please check and identify the supplied
accessories.
For the United Kingdom only:
Use the numbers indicated in parentheses
when asking for replacements parts.
Supplied accessories ................................................................... 2
Caution for AC Mains Lead ......................................................... 3
Safety precautions ....................................................................... 4
Main features ................................................................................ 4
Component part names ............................................................... 5
Connections .................................................................................. 7
Output side connections ............................................................ 7
Input side connections ............................................................... 8
Mixing (Basic operations) ........................................................... 9
Using the microphone .............................................................. 10
Recording and playing on external equipment ........................ 10
Additional mixing operations .................................................... 11
Adjusting the effect ................................................................... 11
Adjusting the monitor ................................................................ 11
Using play mode functions ....................................................... 12
Individually adjusting the left (L) and right (R) input ............... 12
Output separation (dual output separation) ............................ 12
Fader start function .................................................................... 13
Start using the channel fader ................................................... 13
Start using the cross fader ....................................................... 13
Block diagram ............................................................................. 14
Maintenance ................................................................................ 15
Troubleshooting guide ............................................................... 15
Specifications ............................................................... Back page
Table of contents

Technics SH-MZ1200 Specifications

Input Sensitivity and Impedance

PHONO input sensitivity	2.5 mV
PHONO input impedance	47 kΩ
LINE input sensitivity	250 mV
LINE input impedance	10 kΩ
EFFECT RETURN input sensitivity	250 mV
EFFECT RETURN input impedance	47 kΩ
MIC input sensitivity	0.7 mV
MIC input impedance	1 kΩ

Output Voltage and Impedance

MASTER 1, 2 (RCA) output voltage	1 V
MASTER 1, 2 (RCA) output impedance	600 Ω
MASTER 1 (XLR) output voltage	1 V
MASTER 1 (XLR) output impedance	600 Ω
MONITOR output voltage	1 V
MONITOR output impedance	1 kΩ
REC OUT output voltage	250 mV
REC OUT output impedance	1 kΩ
EFFECT SEND output voltage	250 mV
EFFECT SEND output impedance	1 kΩ
Headphone output power	30 mW
Headphone output impedance	32 Ω

Frequency Response

MASTER 1, 2 frequency response	20 Hz to 20 kHz
REC OUT frequency response	20 Hz to 20 kHz
EFFECT RETURN frequency response	20 Hz to 20 kHz
MIC frequency response	20 Hz to 20 kHz

Digital Audio

Coaxial digital input compatible sampling rate	48 kHz/44.1 kHz/32 kHz
Coaxial digital output sampling rate	44.1 kHz

Equalizer Characteristics

CD/LINE/PHONO LOW EQ gain	+12 dB, –24 dB (50 Hz)
CD/LINE/PHONO MID EQ gain	+12 dB, –24 dB (1 kHz)
CD/LINE/PHONO HIGH EQ gain	+12 dB, –24 dB (10 kHz)
MIC LOW EQ gain	+12 dB, –24 dB (100 Hz)
MIC HIGH EQ gain	+12 dB, –24 dB (10 kHz)

General

Power supply	AC 230-240 V, 50 Hz
Power consumption	35 W
Dimensions (WxHxD)	300 mm x 103 mm x 330 mm
Mass	5.3 kg
