Component part names
Input switch for adjusting left and right input
individually (L/R SPLIT) ...................................
,
Input switch (CH1-CH4) ..........................................
CD/LINE DIGITAL: Line or CD input, Digital input
LINE: Line input
PHONO 1-3: Turntable phono input
Input control knob (CH1-CH4) ...............................
Input level control knob (TRIM)
High-tone input control knob (HIGH)
Mid-tone input control knob (MID)
Low-tone input control knob (LOW)
Channel effect (CH1-CH4) switch (EFFECT) ........
Power indicator lamp (POWER) ............................
Output level meter (OUTPUT LEVEL) ............ ,
Play mode lamp (PLAY MODE) ..............................
Master output control knob (MASTER) .................
Master level volume control knob (MASTER LEVEL)
Master balance control knob (MASTER BALANCE)
Output separation ON, OFF switch (SEPARATE OUT)
The unshaded numbers etc, correspond to the numbered illustrations. The shaded numbers etc, are reference pages.
Monitor control knob (MONITOR)..........................
Monitor level volume control knob (LEVEL)
Monitor mixing control knob (MIXING)
Monitor mode switch (MODE)
Monitor select button-display lamp (CUE) ...........
CH1-CH4: CH1-CH4 monitor selector
EFFECT: Effector monitor selector
Channel fader (CH1 - CH4) .............................. ,
Cross fader (CROSS FADER) ......................... ,
Cross fader Assign A, B switch
(C. FADER ASSIGN) .........................................
,
Effector output switch (PRE/POST) ......................
Input-output effect control knob (EFFECT) ..........
Output effect control knob (SEND)
Input effect control knob (RETURN)
Microphone input control knob (MIC) ...................
Microphone level volume control knob (MIC LEVEL)
High-tone microphone control knob (HIGH)
Low-tone microphone control knob (LOW)

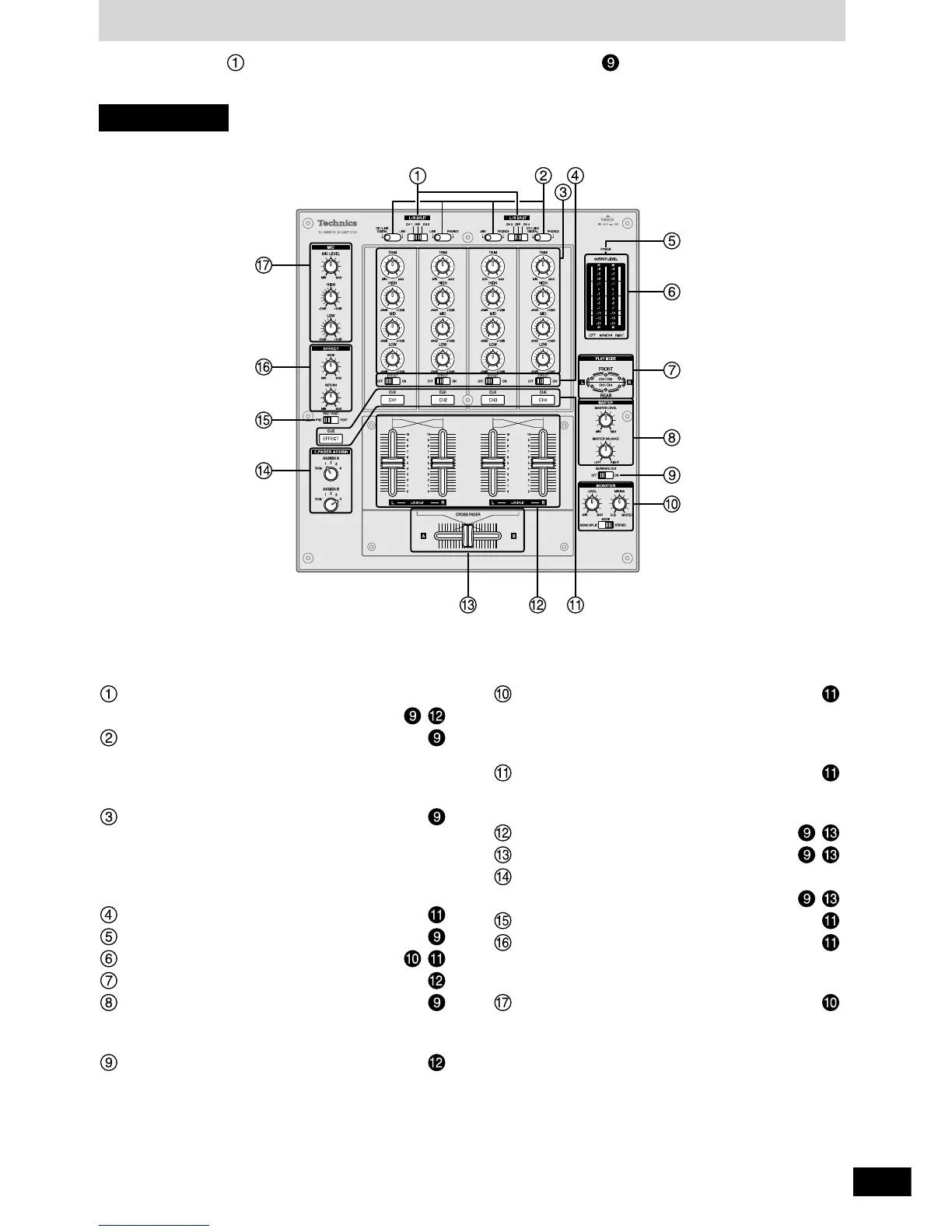

Control panel

Technics SH-MZ1200 Specifications

Input Sensitivity and Impedance

PHONO input sensitivity	2.5 mV
PHONO input impedance	47 kΩ
LINE input sensitivity	250 mV
LINE input impedance	10 kΩ
EFFECT RETURN input sensitivity	250 mV
EFFECT RETURN input impedance	47 kΩ
MIC input sensitivity	0.7 mV
MIC input impedance	1 kΩ

Output Voltage and Impedance

MASTER 1, 2 (RCA) output voltage	1 V
MASTER 1, 2 (RCA) output impedance	600 Ω
MASTER 1 (XLR) output voltage	1 V
MASTER 1 (XLR) output impedance	600 Ω
MONITOR output voltage	1 V
MONITOR output impedance	1 kΩ
REC OUT output voltage	250 mV
REC OUT output impedance	1 kΩ
EFFECT SEND output voltage	250 mV
EFFECT SEND output impedance	1 kΩ
Headphone output power	30 mW
Headphone output impedance	32 Ω

Frequency Response

MASTER 1, 2 frequency response	20 Hz to 20 kHz
REC OUT frequency response	20 Hz to 20 kHz
EFFECT RETURN frequency response	20 Hz to 20 kHz
MIC frequency response	20 Hz to 20 kHz

Digital Audio

Coaxial digital input compatible sampling rate	48 kHz/44.1 kHz/32 kHz
Coaxial digital output sampling rate	44.1 kHz

Equalizer Characteristics

CD/LINE/PHONO LOW EQ gain	+12 dB, –24 dB (50 Hz)
CD/LINE/PHONO MID EQ gain	+12 dB, –24 dB (1 kHz)
CD/LINE/PHONO HIGH EQ gain	+12 dB, –24 dB (10 kHz)
MIC LOW EQ gain	+12 dB, –24 dB (100 Hz)
MIC HIGH EQ gain	+12 dB, –24 dB (10 kHz)

General

Power supply	AC 230-240 V, 50 Hz
Power consumption	35 W
Dimensions (WxHxD)	300 mm x 103 mm x 330 mm
Mass	5.3 kg
