Technics SH-MZ1200 User Manual

RQT7231
6

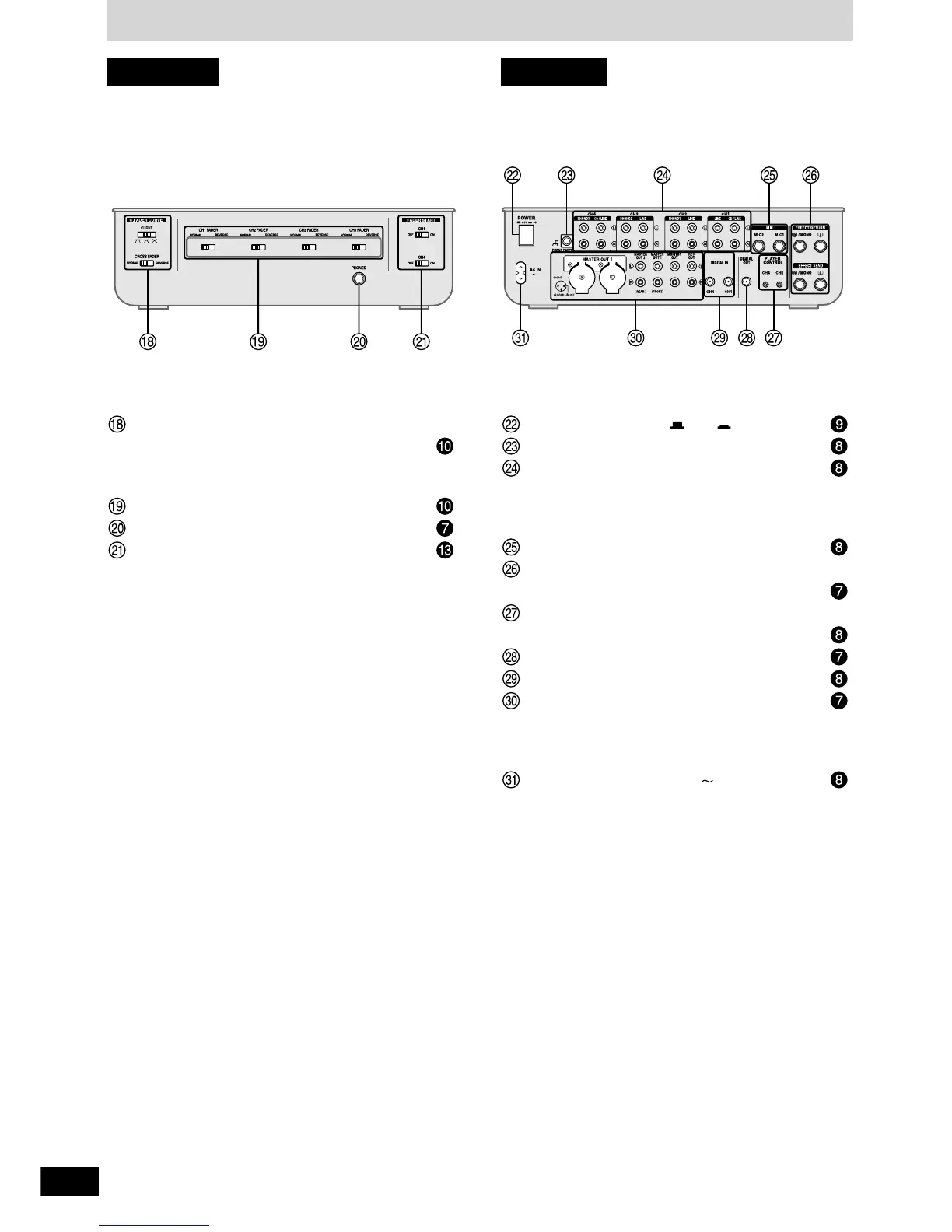

Component part names
Cross fader curve control switch
(C.FADER CURVE) ..................................................
Curve switch (CURVE)
Cross fader operation switch (CROSS FADER)
Fader operation switch (CH1-CH4 FADER) ..........
Headphone terminal (PHONES) .............................
Fader start (ON, OFF) switch (FADER START) .....
Front panel Rear panel
Power button (POWER OFF ON) ...................
Turntable earth terminal (PHONO EARTH) ...........
Input terminal (CH1-CH4) .......................................
CD/LINE: CD or line terminal
LINE: Line terminal
PHONO 1-3: Turntable phono terminal
Microphone input terminal (MIC1, MIC2) ..............
Effector input-output terminal
(EFFECT RETURN, EFFECT SEND) ......................
Player control (CH1, CH4) terminal
(PLAYER CONTROL) ..............................................
Digital output terminal (DIGITAL OUT)..................
Digital input (CH1, CH4) terminal (DIGITAL IN) ....
Output terminal .......................................................
Master out 1, 2 terminal (MASTER OUT)
Monitor out terminal (MONITOR OUT)
Rec terminal (REC OUT)
Power input terminal (AC IN ) ............................

Technics SH-MZ1200 Specifications

Input Sensitivity and Impedance

PHONO input sensitivity	2.5 mV
PHONO input impedance	47 kΩ
LINE input sensitivity	250 mV
LINE input impedance	10 kΩ
EFFECT RETURN input sensitivity	250 mV
EFFECT RETURN input impedance	47 kΩ
MIC input sensitivity	0.7 mV
MIC input impedance	1 kΩ

Output Voltage and Impedance

MASTER 1, 2 (RCA) output voltage	1 V
MASTER 1, 2 (RCA) output impedance	600 Ω
MASTER 1 (XLR) output voltage	1 V
MASTER 1 (XLR) output impedance	600 Ω
MONITOR output voltage	1 V
MONITOR output impedance	1 kΩ
REC OUT output voltage	250 mV
REC OUT output impedance	1 kΩ
EFFECT SEND output voltage	250 mV
EFFECT SEND output impedance	1 kΩ
Headphone output power	30 mW
Headphone output impedance	32 Ω

Frequency Response

MASTER 1, 2 frequency response	20 Hz to 20 kHz
REC OUT frequency response	20 Hz to 20 kHz
EFFECT RETURN frequency response	20 Hz to 20 kHz
MIC frequency response	20 Hz to 20 kHz

Digital Audio

Coaxial digital input compatible sampling rate	48 kHz/44.1 kHz/32 kHz
Coaxial digital output sampling rate	44.1 kHz

Equalizer Characteristics

CD/LINE/PHONO LOW EQ gain	+12 dB, –24 dB (50 Hz)
CD/LINE/PHONO MID EQ gain	+12 dB, –24 dB (1 kHz)
CD/LINE/PHONO HIGH EQ gain	+12 dB, –24 dB (10 kHz)
MIC LOW EQ gain	+12 dB, –24 dB (100 Hz)
MIC HIGH EQ gain	+12 dB, –24 dB (10 kHz)

General

Power supply	AC 230-240 V, 50 Hz
Power consumption	35 W
Dimensions (WxHxD)	300 mm x 103 mm x 330 mm
Mass	5.3 kg
