RQT7231
11

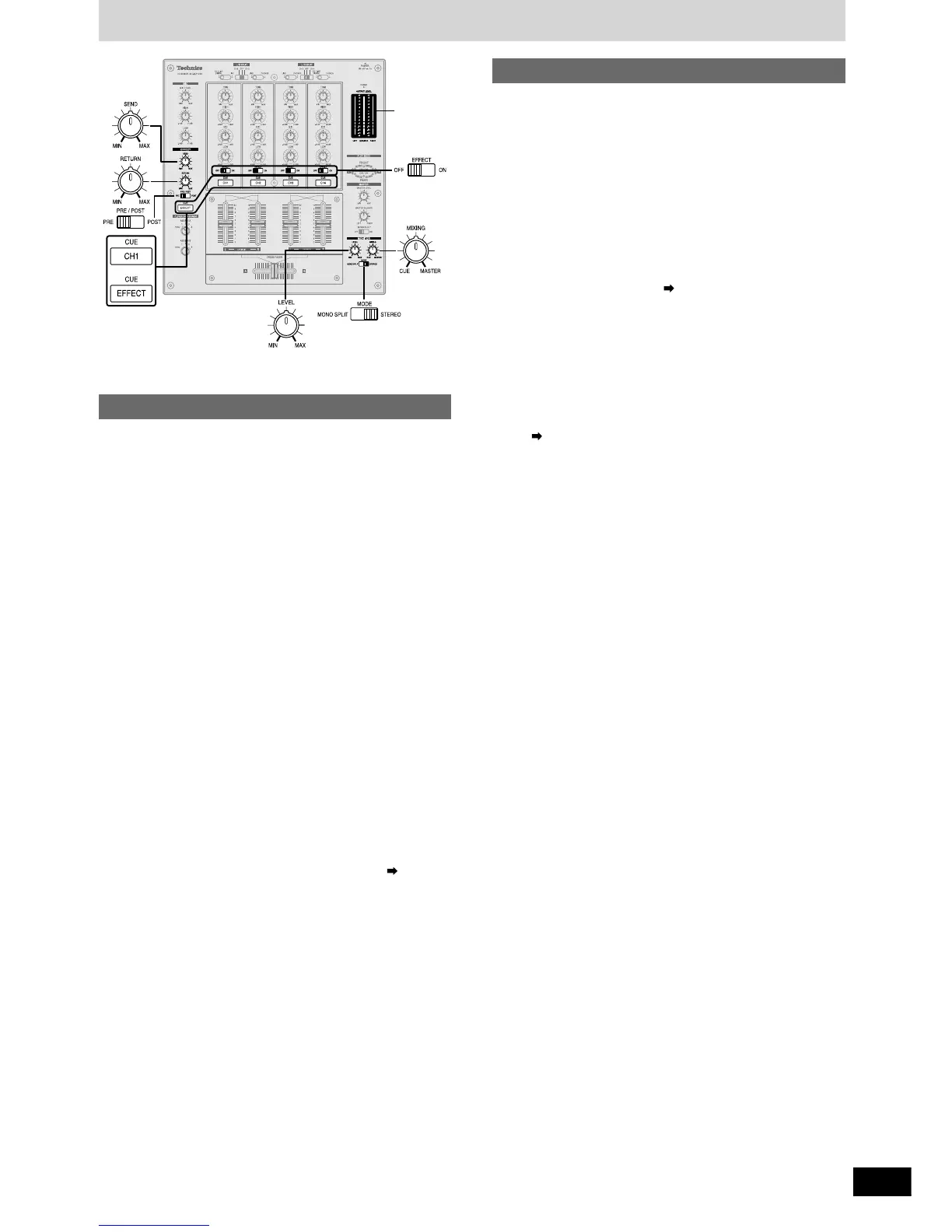

Additional mixing operations
OUTPUT
LEVEL
meter
Adjusting the monitor
You can check the sound on the headphones etc. during play and cue
the channel you want to mix, and adjust the volume and check the
mixing sound.
Monitoring CH1
1 Press [CUE CH1] to turn on the monitor
sound
•The display lamp lights once the CUE button is pressed.
•Monitor sound from the selected channel is output to
PHONES (Headphones) and MONITOR OUT terminal.
•Mixed sound can be output by pressing multiple CUE buttons.
When using an effector ( left side of this page)
Press [CUE EFFECT] to turn on the
monitor sound
•Monitor EFFECT RETURN is output.
2 Select the input, adjust the input level,
sound, and adjust the volume with the
channel fader and cross fader
( page 9, Mixing, instructions 3 - 7)
3 Turn [MIXING] and adjust mixing
•Turn completely to the right for audio from the master output.
•Turn completely to the left for audio from the channel selected
with the CUE button.
•When the control knob is in the center position the audio
level of the master output and the channel selected with the
CUE button is half and half.
•The monitor volume level is displayed in the MONITOR
column of the output level meter.
4 Switch [MODE] and select the monitor
sound
You can select the monitor sound to be stereo or
split between the channel selected with CUE button
(L) and master (R).
Select MONO SPLIT and the monitor output will become
monaural, left (L) will output audio from the channel selected
with the CUE button, and the right (R) will output audio from
the master output channel.
5 Turn [LEVEL] to adjust the monitor
volume
•Even if the MASTER LEVEL and MASTER BALANCE is
changed the monitor sound does not change.
Adjusting the effect
You can adjust the volume level and select the output point when
using an externally connected effector.
1 Switch [EFFECT] to ON
Outputs to the external effector.
2 Switch [PRE/POST] and select the
output point
PRE: Outputs before the channel fader
POST: Outputs after the channel fader
3 Turn [SEND] to adjust the output level
Adjusts the output volume level sent to the external
effector.
4 Turn [RETURN] to adjust the input level
Adjusts the input volume level from the external
effector.
•An effect is applied to the input source sound and output to
the MASTER OUT 1 terminal.
On the channel you have selected to use
effect output
Using output separation
When using output separation (dual output separation) ( page 12),
audio is output through the MASTER OUT 2 (REAR) terminal.
