7. Insert the new gearbox oil filter. For mounting direction see
Fig. 6.51 and Fig. 6.52.

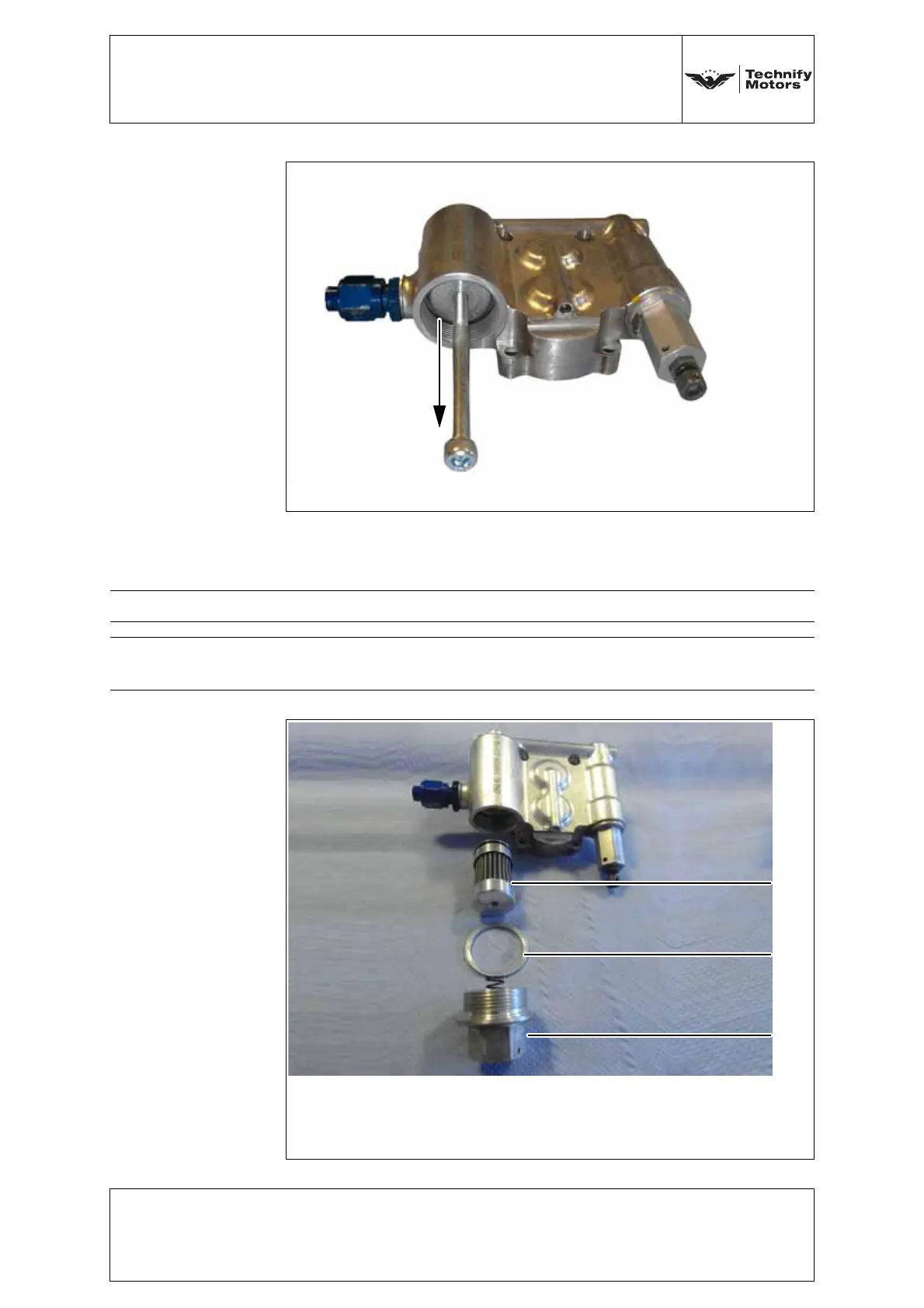

Fig. 6.50 Removal of gearbox oil filter
 CAUTION: Only use an original Technify Motors GmbH gearbox oil filter.
 Note: Make sure that the new o-ring is correctly mounted to the new
oil-filter. The o-ring is part of the new oil filter (Fig. 6.51, item a).
Fig. 6.51 Gearbox oil filter assembling
a Filter element with o-ring
b Sealing ring (aluminum)
c Filter cap with spring
