8. Attach the new aluminum sealing ring to the filter cap
(see Fig. 6.51, item b).
9. Remount the filter cap and tighten it to the specified
tightening torque.
Tightening Torque:
30 Nm
10. Loosen the oil filler screw and remove it. (Fig. 6.49, item a).
11. Fill in 1 liter new gearbox oil.
12. Remount the oil filler screw with a new sealing ring and
tighten it to the specified tightening torque.
Tightening Torque:
35 Nm
13. Preset the proportional pressure reducing valve. Refer to
Chapter 72-10.05 of RM-02-02.

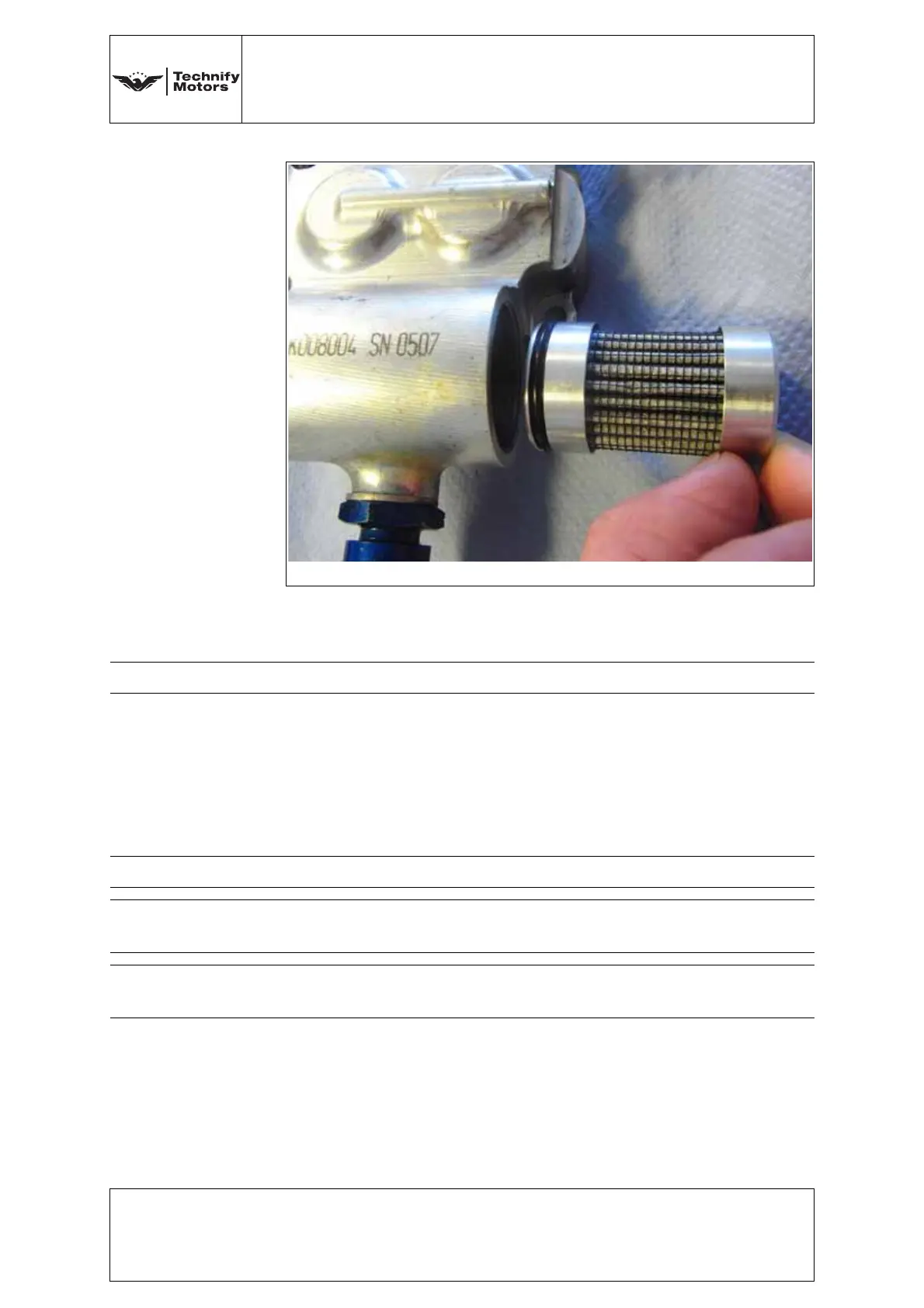

Fig. 6.52 Mounting direction of the oil filter
Note: Make sure that the spring in the filter cap is fixed.
CAUTION: Do not overfill the gearbox!
CAUTION: Use only gearbox oil which is specified in Chapter 3, Section
3.5, Page 3 of this Manual.
Note: Before refilling, shake the gearbox oil bottle, in order to mix the
gearbox oil and the additives.
