Techpro NVR-ELT4 - Wifi

177
 UDP port: Default value is 37778.
 HTTP port: Default value is 80.
 HTTPS port: Default value is 443.
 RTSP port: Default value is 554.
Important: System needs to reboot after you changed and saved any setup of the above four ports.
Please make sure the port values here do not conflict.

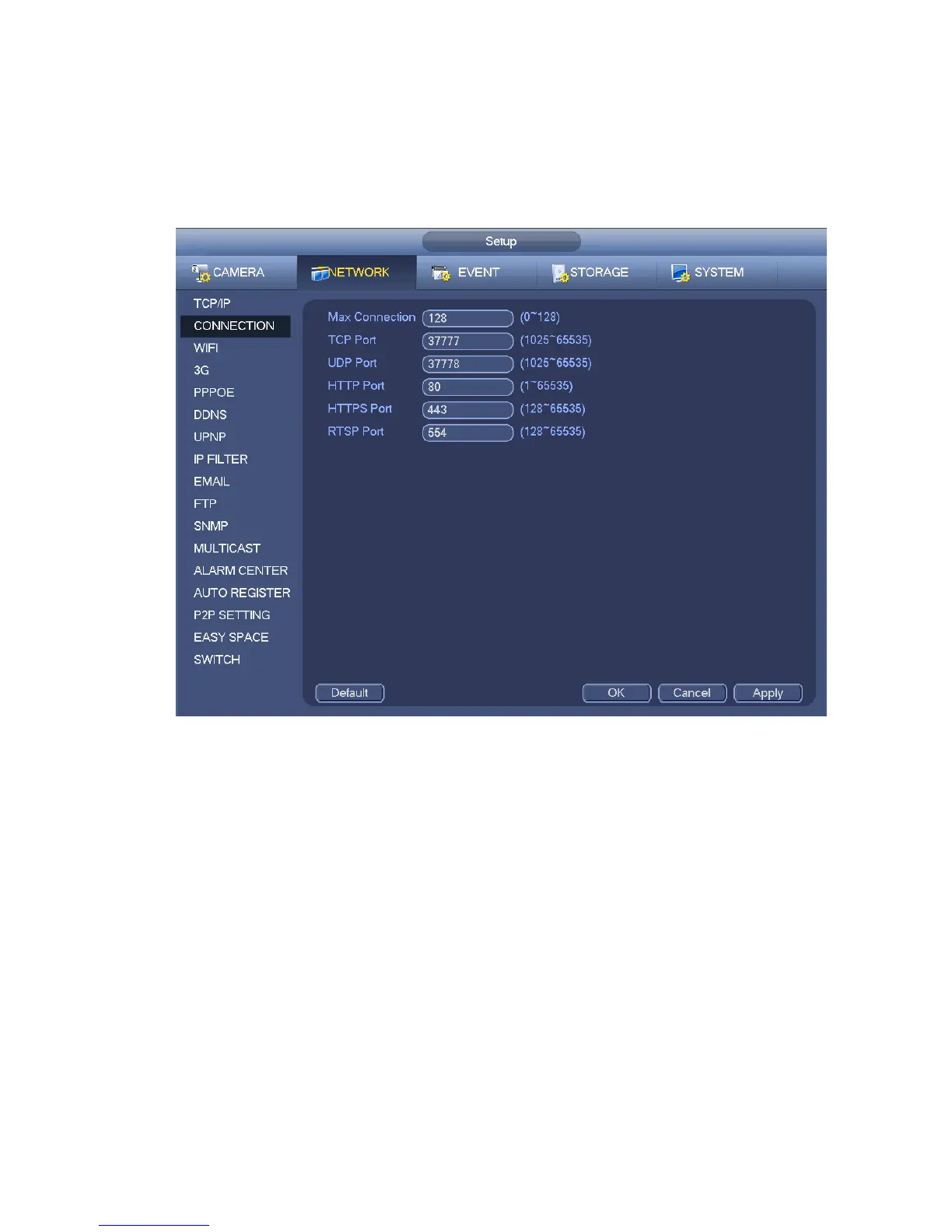

Figure 4-101
4.12.1.3 WIFI
The WIFI interface is shown as below. See Figure 4-102.
 Enable: Check the box here to enable WIFI function.
 Refresh: You can click it to search the hotspot list again. It can automatically add the information
such as the password if you have set it before.
 Disconnect: Here you can click it to turn off the connection.
 Connect: Here you can click it to connect to the hotspot. System needs to turn off current connection
and then connect to a new hotspot if there is connection of you selected one.
