2 Front Panel and Rear Panel
2.1 Front Panel
2.1.1 NVR-ELT-4 / NVR-ELT-4-POE4 / NVR-ELT-16
The front panel
is shown as in Figure 2-1.

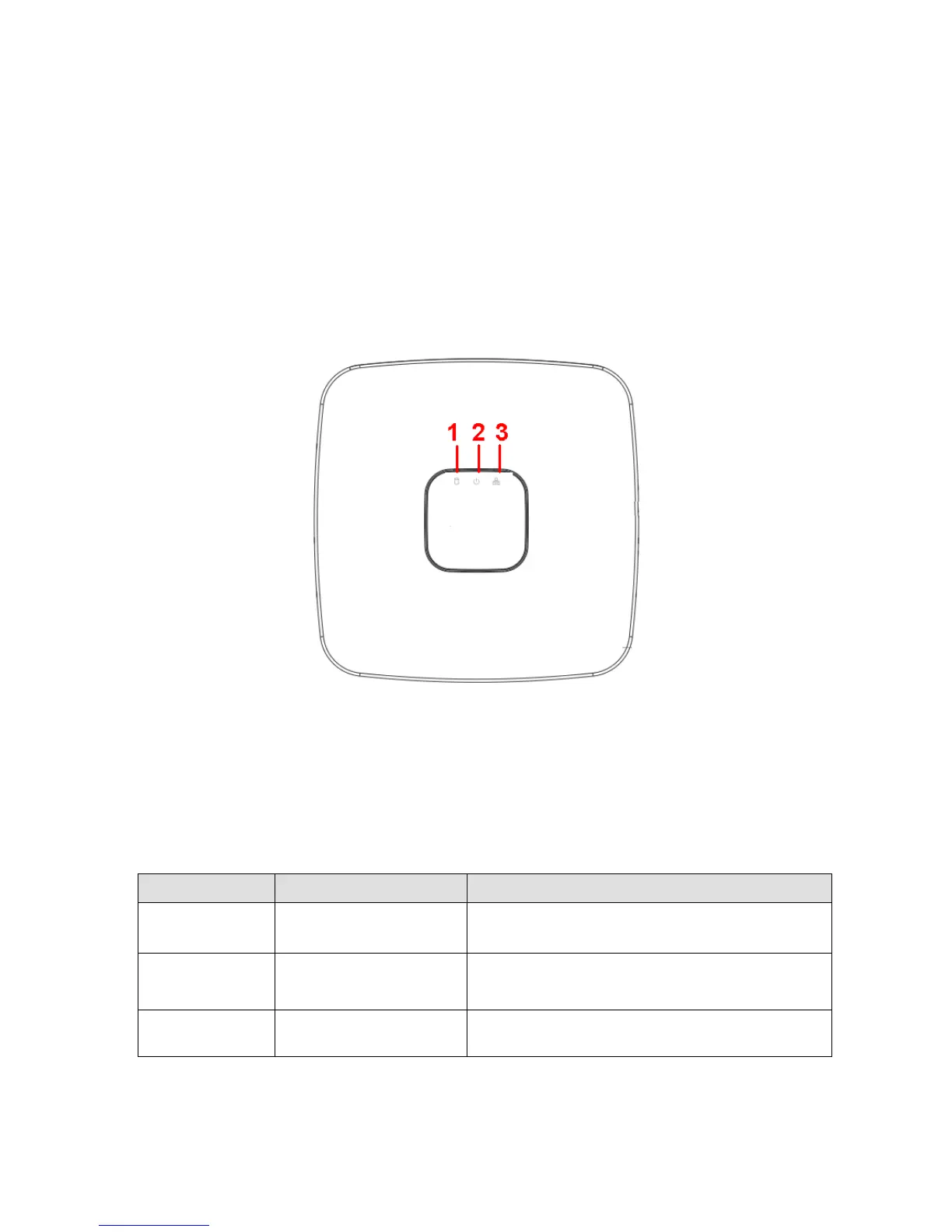

Figure 2-1
Please refer to the following sheet for detailed information.
SN Name Function
1
HDD status indictor light The red light becomes on when HDD is abnormal.
2
Power indicator light
The red light becomes on when the power
connection is OK.
3
Network status indicator
light
The red light becomes on when the network
connection is abnormal.
