Techpro NVR-ELT4 - Page 66

140

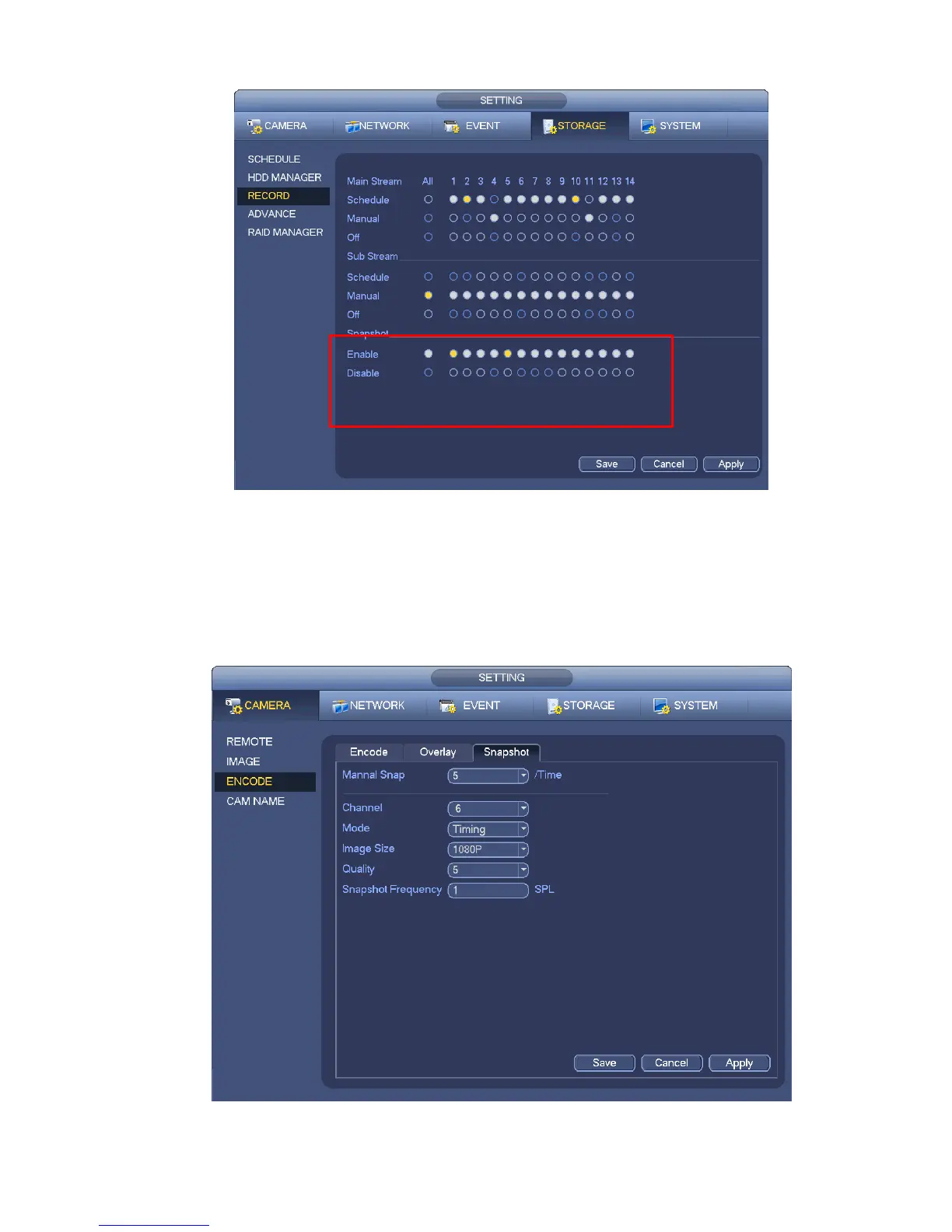

Figure 4-58
From Main menu->Setting->Camera->Encode->Snapshot, you can go to snapshot interface. See Figure
4-59.
Select the snapshot channel from the dropdown list and then select snapshot mode as Timing (Schedule)
from the dropdown list and then set picture size, quality and snapshot frequency.
Figure 4-59
