6.3. NOSE LANDING GEAR
The nose gear (fig. C-17) is attached to the engine mount with two hinges (1)
and is equipped with a Sava 4.00-6 type tire.
Steering motion is transmitted from the pedals through two steering tubes that
are attached to the nose gear strut by means of two brackets (2) welded to the
strut.
Gear fork is made up of light alloy plates (4) & (5) and a spacer (6); it hinges on
the strut leg and is braced by a rubber-disc shock absorber (3).

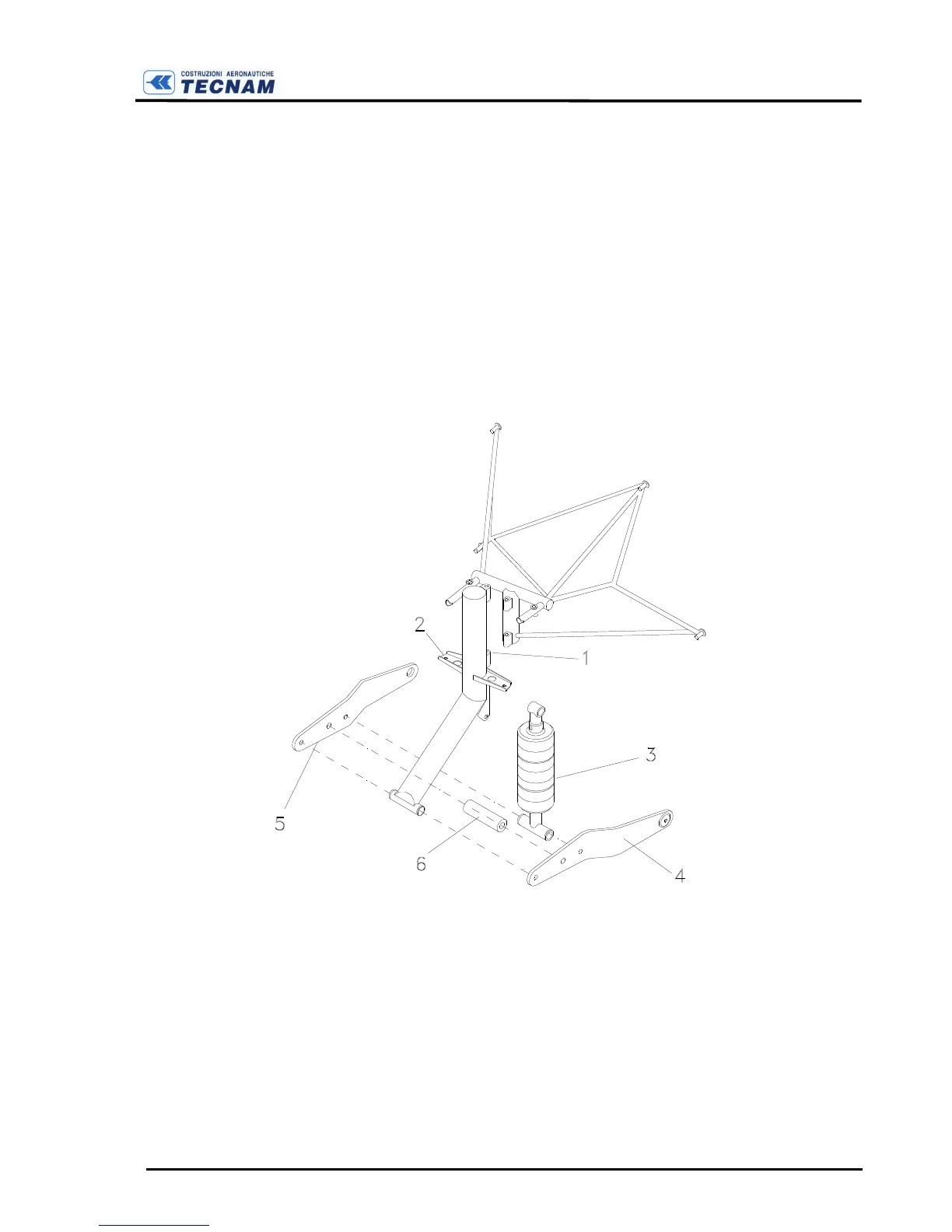

F
IGURE
C-17
N
OSE
L
ANDING
G
EAR LEG
