2.1 - ENGINE INSTRUMENTATION
- An electric tachometer is installed;
- An electric oil temperature indicator is installed. The sensor is located on
the oil pump tube and is marked with “TO” on the pump flange.

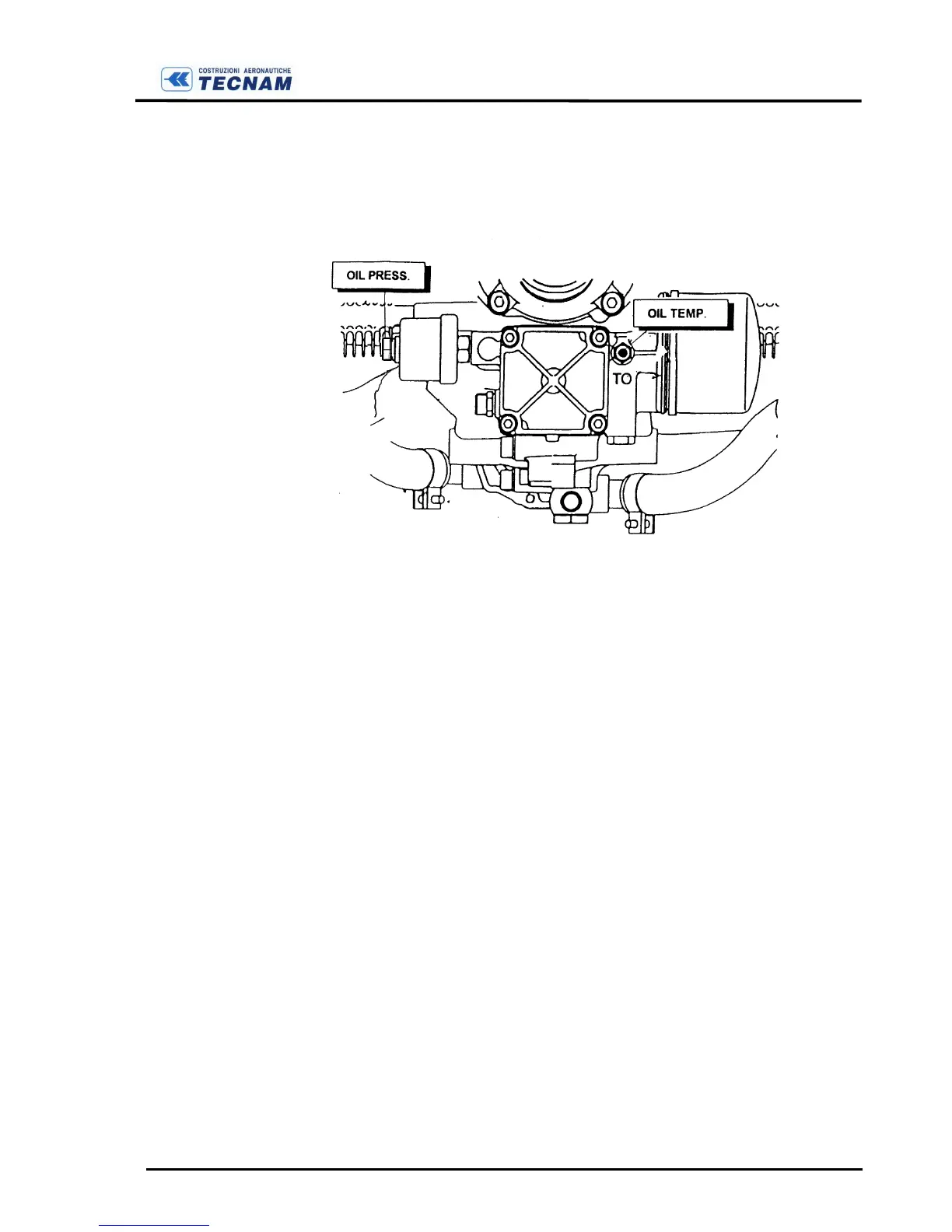

F IGURE E-5 P RESSURE AND OIL TEMP . SENSORS
- An oil pressure instrument is installed. Sensor is located on oil tube.
- Cylinder head temperature sensors are located on cylinders 2 or 3 and are
linked with relative instrumentation.
