Tecnam P2002 Sierra - 1 General

2
st
Edition, April 22
th
, 2008
P2002 Sierra
MAINTEN ANC E MAN UAL
SECTION F
ELECTRICAL
SYSTEM
pag. F-2
1 - GENERAL
The aircraft's electrical system consists of a 12 Volt DC circuit. An 18 Ah lead
battery provides the energy necessary to start the engine and acts as an emergency
stand-by supply of electrical power for electrical components in case of generator
malfunction.
A single-phase generator connected to a regulator/rectifier supplies DC power to
the bus bars and to recharge the battery.

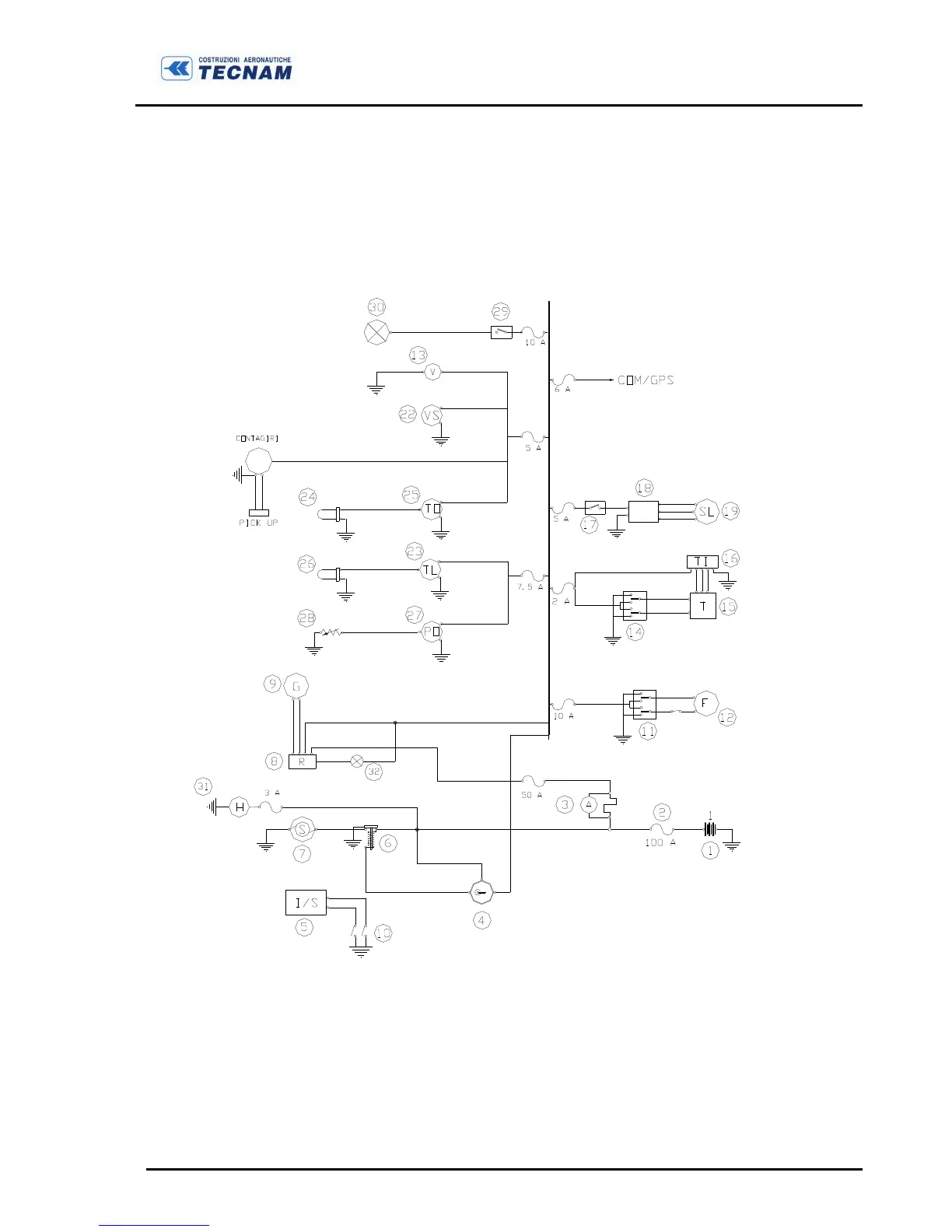

F IGURE F-1 W IRING D IAGRAM
