1 – FUEL SYSTEM

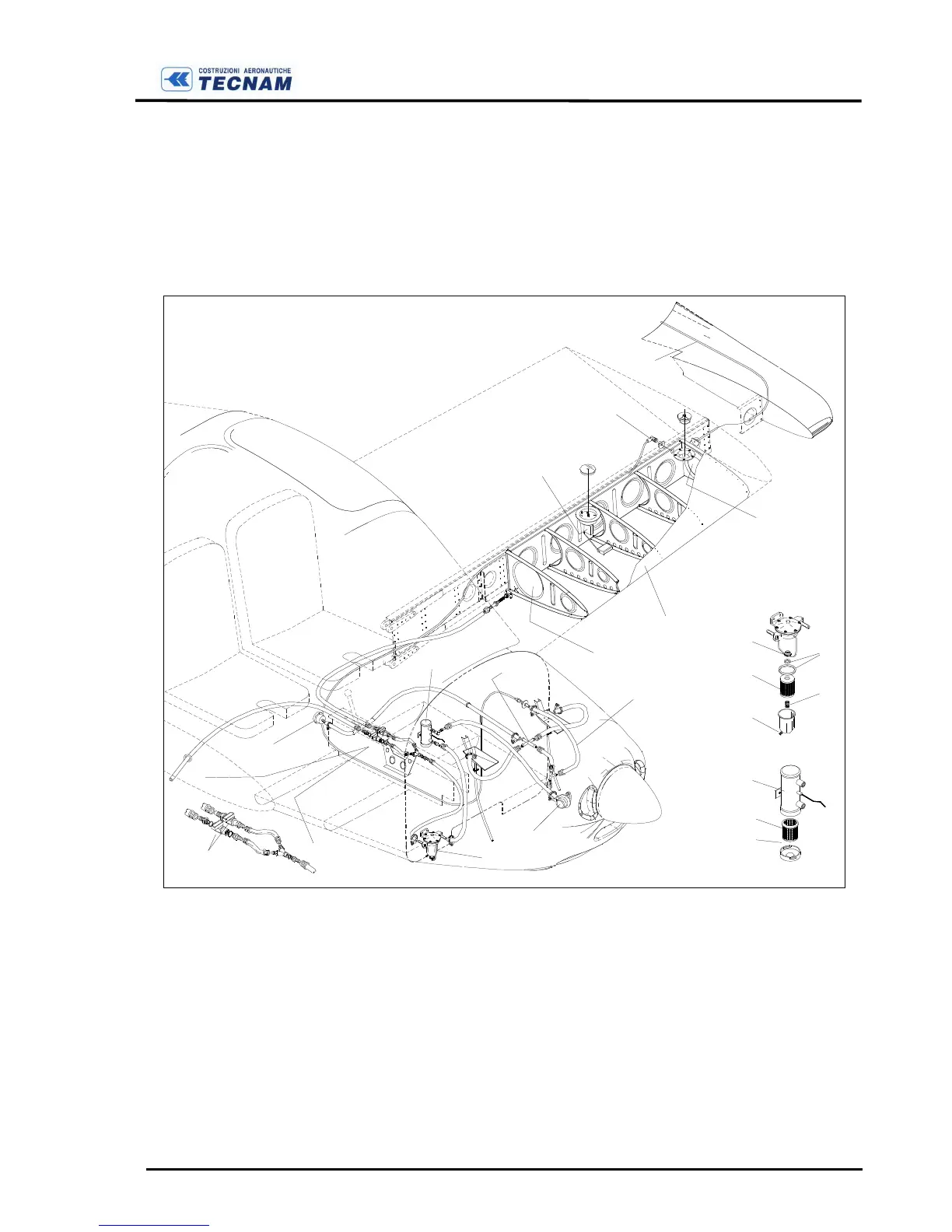

The system is equipped with two aluminium fuel tanks (1) integrated within the
wing leading edge and accessible for inspection through dedicated doors (2). Ca-
pacity of individual tank is 50lt for a total of 100lt.
F
IGURE
E-1
F
UEL
S
YSTEM
Each fuel tank is equipped with a cabin installed shutoff valve (5). A strainer cup
with a drainage valve (6) (Gascolator) is located on the engine side of the fire-
wall. Fuel level indicators for each tank are located on instrument panel, each
fuel tank is equipped with individual sensor-floats (3). Fuel feed is through an
engine-driven mechanical pump (8) and through an electric pump (7). Electric
pump is equipped with a thin-mesh filter (7a) that can be accessed for inspection
via the bayonet-style filler cap (7b). A fuel pressure indicator gauge is located on
8
7b
5
6
9
12
7
1
11
2
7a
7
6e
6c
6d
6a
6b
3
4
10
2
