Main Gear
!
4.7.2 Removal of cup-bearing from main gear wheel
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!

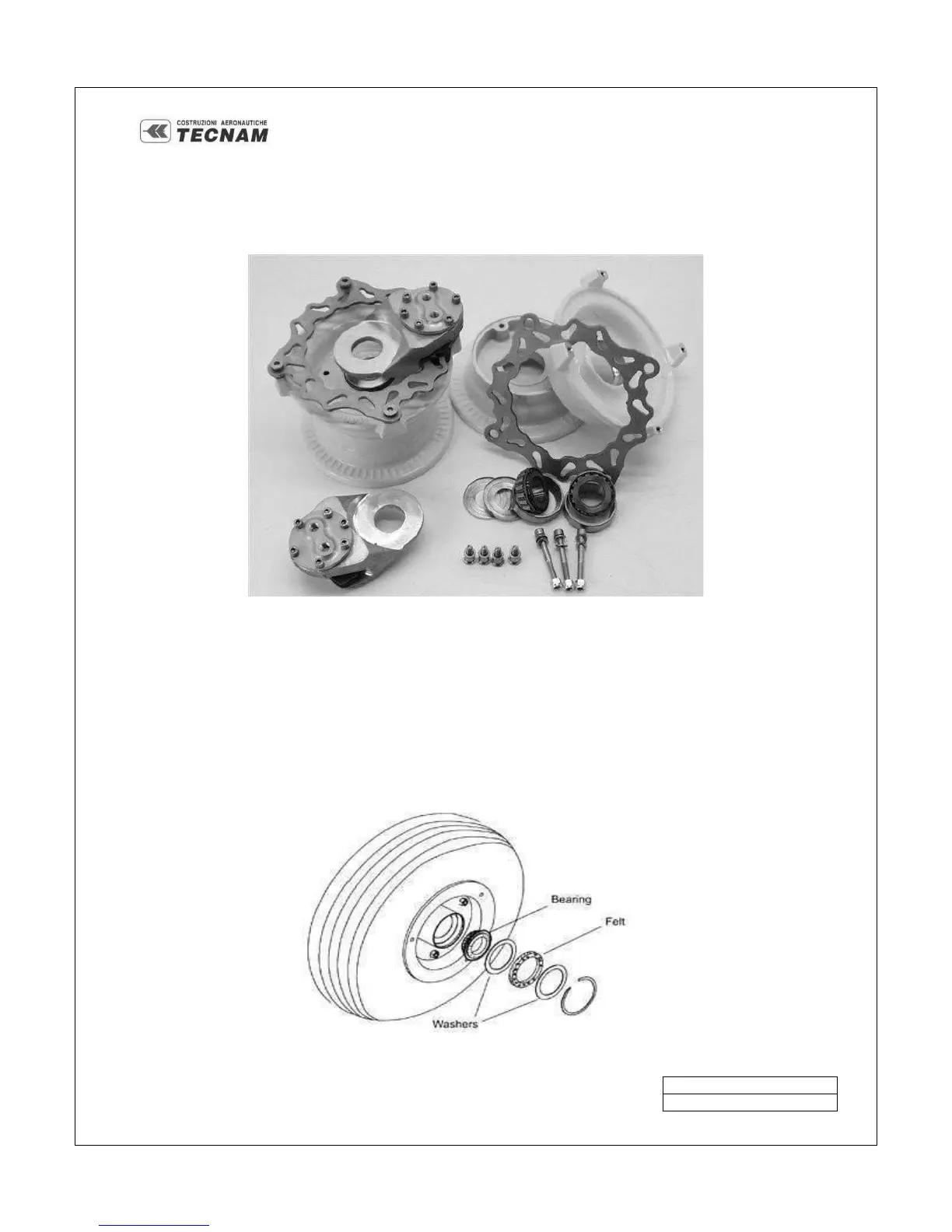

Figure 4-16 Marc Ingegno Wheel
Assembly
!
Removal of cup-bearing from main gear wheel (see fig.4-17)
Removal of a wheel bearing becomes necessary when excessive friction occurs during wheel motion. Procedure is as
follows:
!
Using an appropriate tool, remove “Seeger” type snap ring”
!
Remove the two ring-grease seals and the felt-grease seal
!
Remove the cup bearing
!
Clean the bearings accurately using appropriate solvent and wipe wheel rim side. Grease using FIAT ZETA2.
Reverse procedure to re-install. Insert ring-grease and felt-grease seals by sliding them perpendicular to hole
without forcing them
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
Figure 4-17 Removal of cup-bearing
!
!
