P92 Echo Super
Maintenance Manual
!
Top fluid level to 3/4 and close cap
!
To drain the brake system:
D. Pull brake lever (5) to pressurize circuit
E. Loosen small escape valve (7) allowing fluid spurt
F. Close small valve and release brake lever
!
Repeat operations D, E and F until fluid comes out clean and no longer in spurts proving absence of air bubbles.
!
!
Top-off reservoir with needed amount of brake fluid
!
Close reservoir and repeat operation for other brake
!
Hydraulic fluid may also be replaced using gravity after disconnecting the circuit. This method is however more
laborious and less reliable.
!
6.5.2 Replacing brake pads
When thickness of lining is less than 2.4 mm, brake pads should be replaced using the following procedure and the fig.
6
-
11:
!
Make sure parking brake is released
!
Remove fairings to expedite operation
!
Loosen bolts (2) from the caliper (1)
!
Remove brake pads (3)
!
Replace brake pads
!
Reassemble

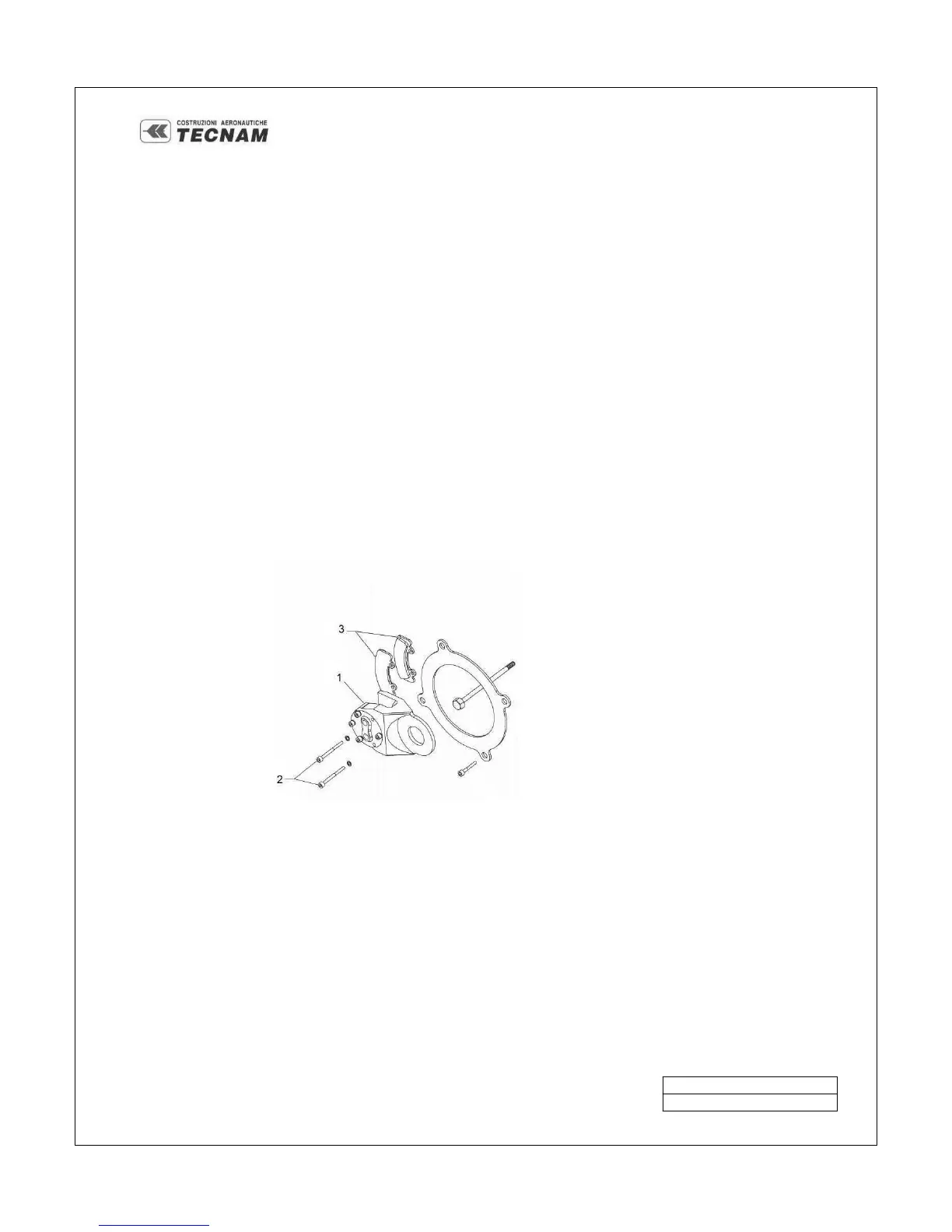

Figure 6-11 Brake
Assemblies
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
58
Revision Date:
10-29-2007
Revision Number:
3.01
