Tecnam P92 Echo Super - Aircraft Markings and Placards; 8.1 Markings and Placards Identification; 8.1.1 Magnetic Compass Compensation Table; 8.1.2 Parking Brake Valve Placard

P92 Echo Super
Maintenance Manual
Revision Date: 10-29-2007
Revision Number: 3.01
61
SECTION 8
MARKING & PLACARDS
8 Markings and Placards

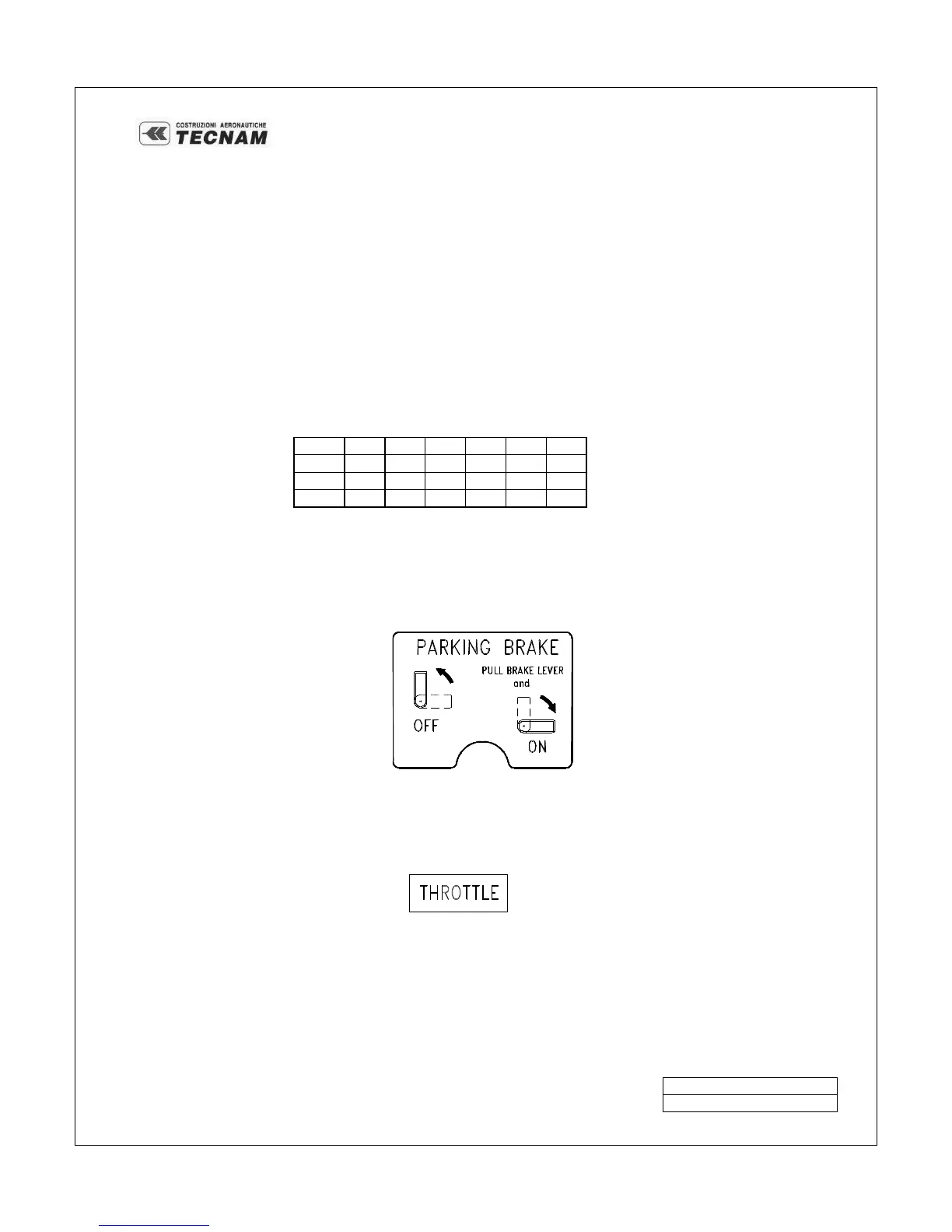

8.1.1 Magnetic compass compensation table
To compensate the deviation errors of the magnetic compass, the following correction table is located just below the
compass:
For
N
30
60
E
120
150
Steer
For
S
210
240
W
300
330
Steer
DATE
RADIO ON
AIRPATH
8.1.2 Parking brake valve
The following placard (55x42mm) is located on the central tunnel behind the two seats next to the parking brake shutoff
valve.
8.1.3 Engine throttle
Two throttle control knobs are located on the instrument panel. One positioned centrally while the other is on the upper left-
hand side. The following placard (7x20mm) is located near each one of them.
