control to either RH or LH control stick. The following placard is positioned just
above it:

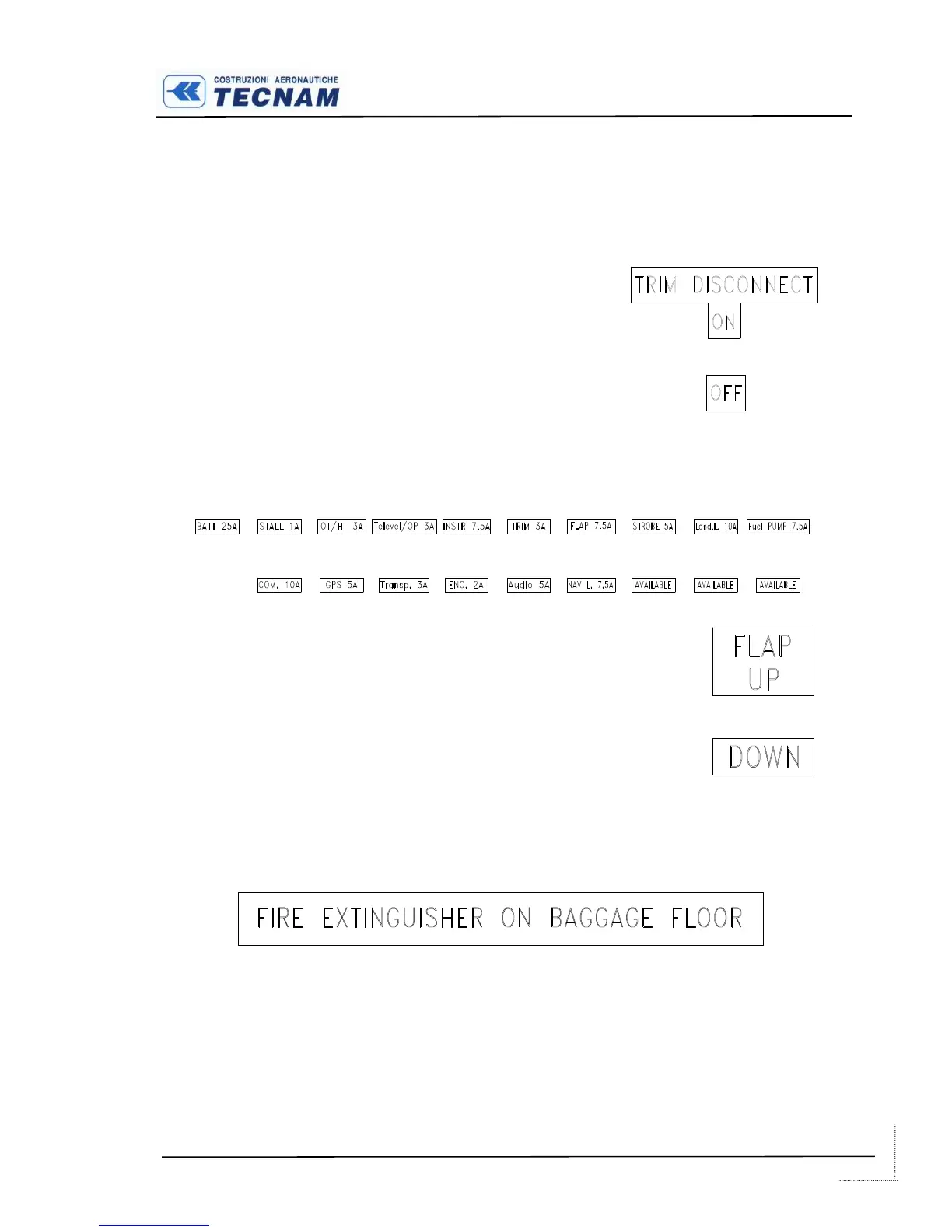

A switch located on the upper central area of the
instrument panel interrupts power supply to the trim
system in case of malfunction. The following placard
is positioned near switch:
Circuit breakers are located on lower right side of instrument panel and each
breaker is individually marked as follows: (from left to right):
The flap control switch is located on the lower portion of the
instrument panel, slightly towards the right. The following
placards are just next to it:
A placard measuring 74x7 mm is located on the instrument panel to indicate fire
extinguisher position:
