ow to access the evaporator for cleaning

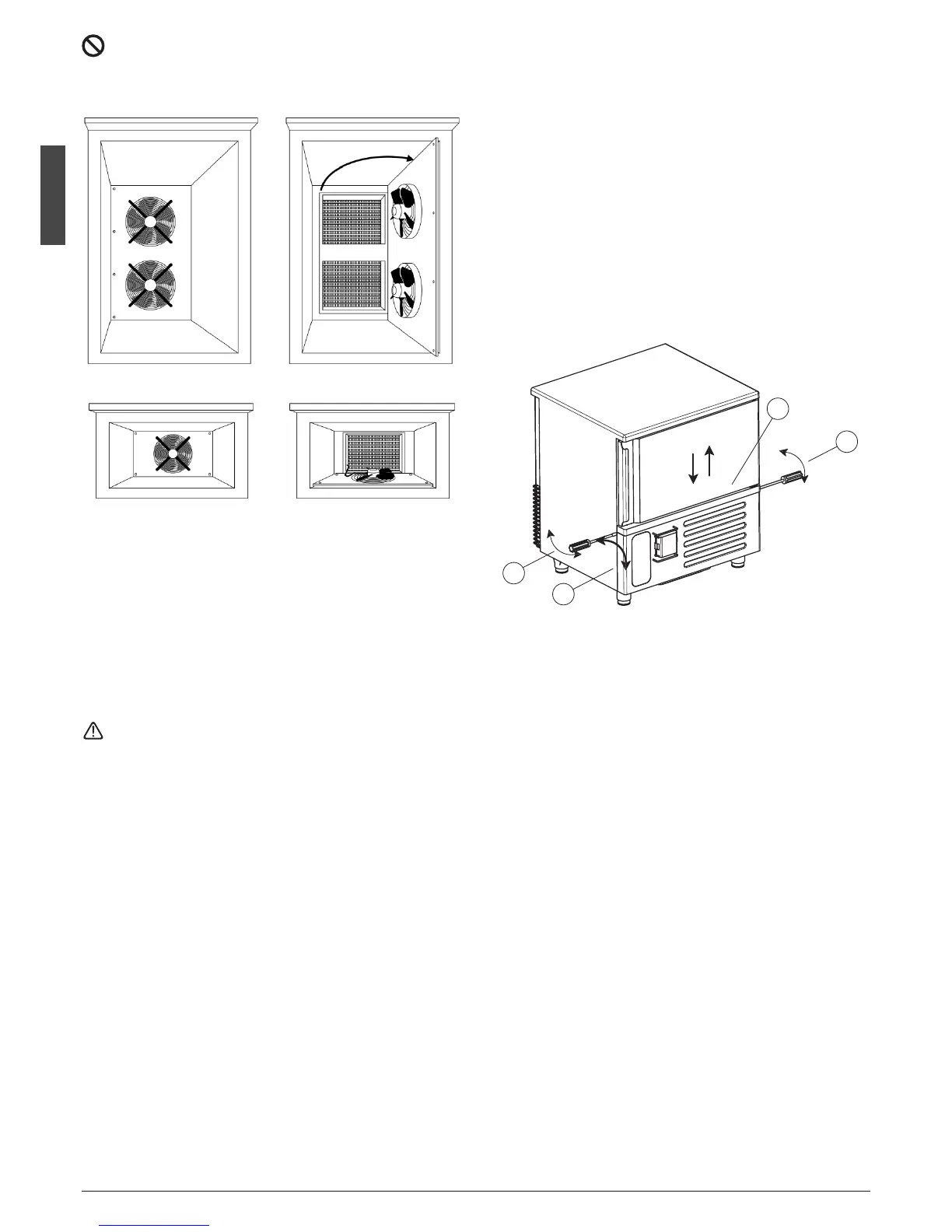

• It is possible to gain access to the inside part of the evapo-
rator, to perform the cleaning of the same:
• Removing the screws located on the front fan panel and
opening it to the right side, or removing the panel.
• Periodically, provide to clean the evaporator, using nebuli-
zed hot water at low pressure, and addressing the water
throw on the evaporator battery.
• Finished the cleaning, provide to dry the evaporator using
air pressure in order to desiccate and remove the residues of
presence of water . After that refit the fan panel in proper po-
sition.
• To carefully clean with a cloth the surfaces adjacent to the
evaporator and provide to reassemble the frontal fans panel.
Before starting the machine pls verify to have removed
the equipments used in precedence for the cleaning.
7
.5 DEFROST WATER DRAINAGE
• The system is prearranged for automatic and manual defro-
sting, as necessary.
• Make sure that the water from the evaporator drains out into
the collecting tray, and that the drain tube is not clogged.
7.5 PERIODIC CLEANING OF THE AIR CONDENSER FILTER
(only for MOD.
e
)
• Press with a screwdriwer on both sides of front panel (see
d
rawing). Take and clean the filter.
• Put the filter in the original position.
• Push with the hands and close the panel.
1
1
2
3
Fig. 1 Fig . 2
Fig . 3 Fig . 4
