F_06: Frequency Upper Limit Range = 1 ~ 200Hz
F_07: Frequency Lower Limit Range = 1 ~ 200Hz
F_06: Factory setting refer to F_25.
NOTE:
If F_07 = 0Hz, the frequency instruction is equal to 0Hz; the AC drive will stop at 0 speed.
If F_07 > 0Hz, the AC drive will output a minimum speed according to the setting in F_07.
F_08: SP1 Frequency = 1 ~ 200Hz
F_09: JOG Frequency = 1 ~ 200Hz
1. When F_19 or F_20 = 2 (multi-function input setting) and the multi-function input terminal is ON, the inverter operates at
SP1 frequency (F_08).
2. When F_19 or F_20 = 1 (multi-function input setting) and the multi-function input terminal is ON, the inverter operates at JOG
frequency (F_09).
3. When multi-function input terminals 1 and 2 are configured for SP1 frequency and JOG frequency, the priority of the
frequency setting is: JOG, SP1, Keypad setting, external frequency signal using a speed pot.
40
FLUXMASTER 50 INSTRUCTION MANUAL

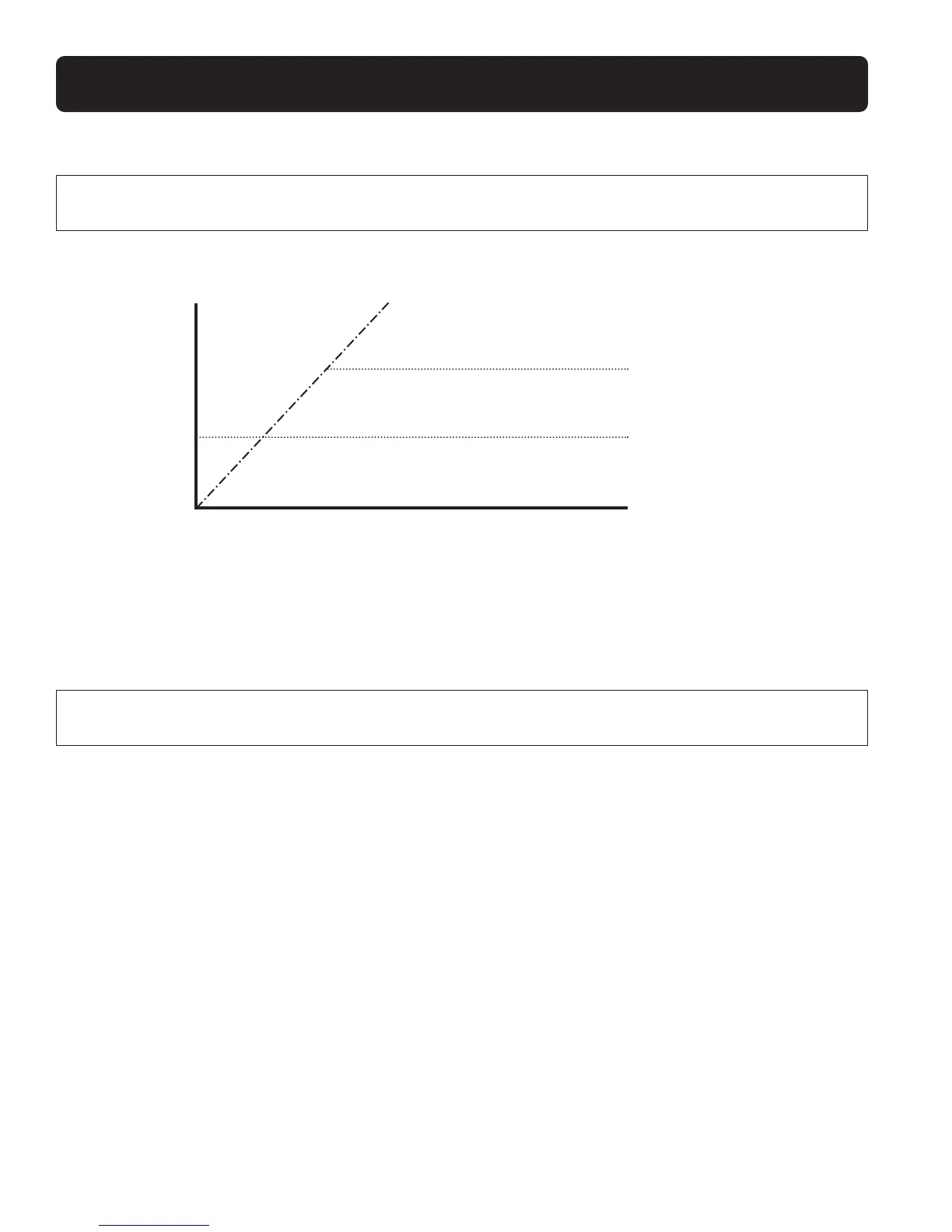

Frequency Setting Signal
Internal
Frequency
Signal
(Note)
F_06 (Freq.Upper Limit)
F_07 (Freq.Lower Limit)
