TECO JSDAP-50A3 - Page 248

9-17

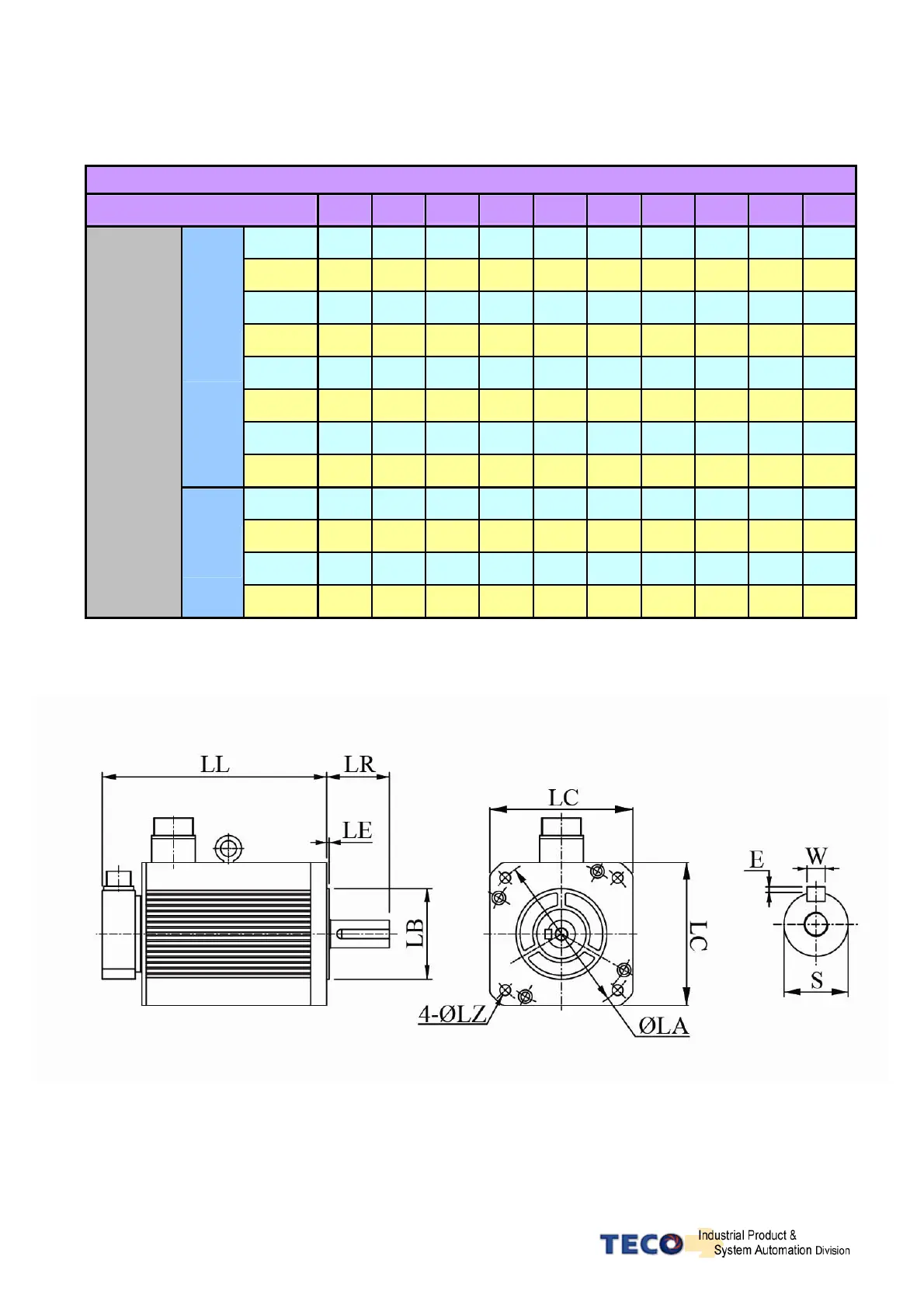

※ JSMA-PM/PH motor dimension diagram (400V Class)
400 Class
Motor Mode
LZψ LAψ
LC E W
Sψ LBψ
LE LR LL
MB10
9 145 130.4 2.5 6 22 110 6 58 163.8
MB15
9 145 130.4 2.5 6 22 110 6 58 183.8
MB20
9 145 130.4 2.5 6 22 110 6 58 213.8
MB30
9 145 130.4 2.5 6 22 110 6 58 263.8
MH30
13.5 200 180 3 10 35 114.3 3.2 79 221
MH44
13.5 200 180 3 10 35 114.3 3.2 79 249
MH55
13.5 200 180 3 12 42 114.3 3.2 113 275
Without
Brake
MH75
13.5 200 180 3 12 42 114.3 3.2 113 330
MB10
9 145 130.4 2.5 6 22 110 6 58 218.3
MB15
9 145 130.4 2.5 6 22 110 6 58 238.3
MB20
9 145 130.4 2.5 6 22 110 6 58 268.3
JSMA-PM
JSMA-PH
Series
With
Brake
MB30
9 145 130.4 2.5 6 22 110 6 58 318.3
Unit: mm
