TECO JSDAP-50A3 - Speed Control Mode

5-8
SPD 1 、SPD 2
Once Smooth
AC/deceleration
Speed
Rotating Direction
Input Contact
SPDINV
Speed Controller
Speed Feed Back
Cn004
Linear
AC/deceleration
Sn206
Sn208~Sn210
S-Curve
AC/deceleration
Sn205
AC/deceleration Method
Analog Speed Command Limit
Sn218
Sn217
Sn216
A/D
Analog Speed Command
Host Controllor
Cn005
Encoder Signal
Encode-ratio Output
Sn201~Sn203
Internal Speed Command
Ratio
Bias Adjusting
TLMT
Input Contact PCNT
G-SEL
Analog Torque Limit
A/D
Analog Torque Limit
Internal Torque
Limit
Cn010, Cn011
Torque Control
Loop
Speed Controller 1
Sn211, Sn212
Speed Controller 2
Sn213, Sn214
Input ContactGain switch method
Cn015~Cn024
Resonance filter
Cn013, Cn014
Speed
Feed Back
Smooth Filter
Cn032
Speed Feed Back
Speed Command
From Speed
Processor
5-3 Speed Mode

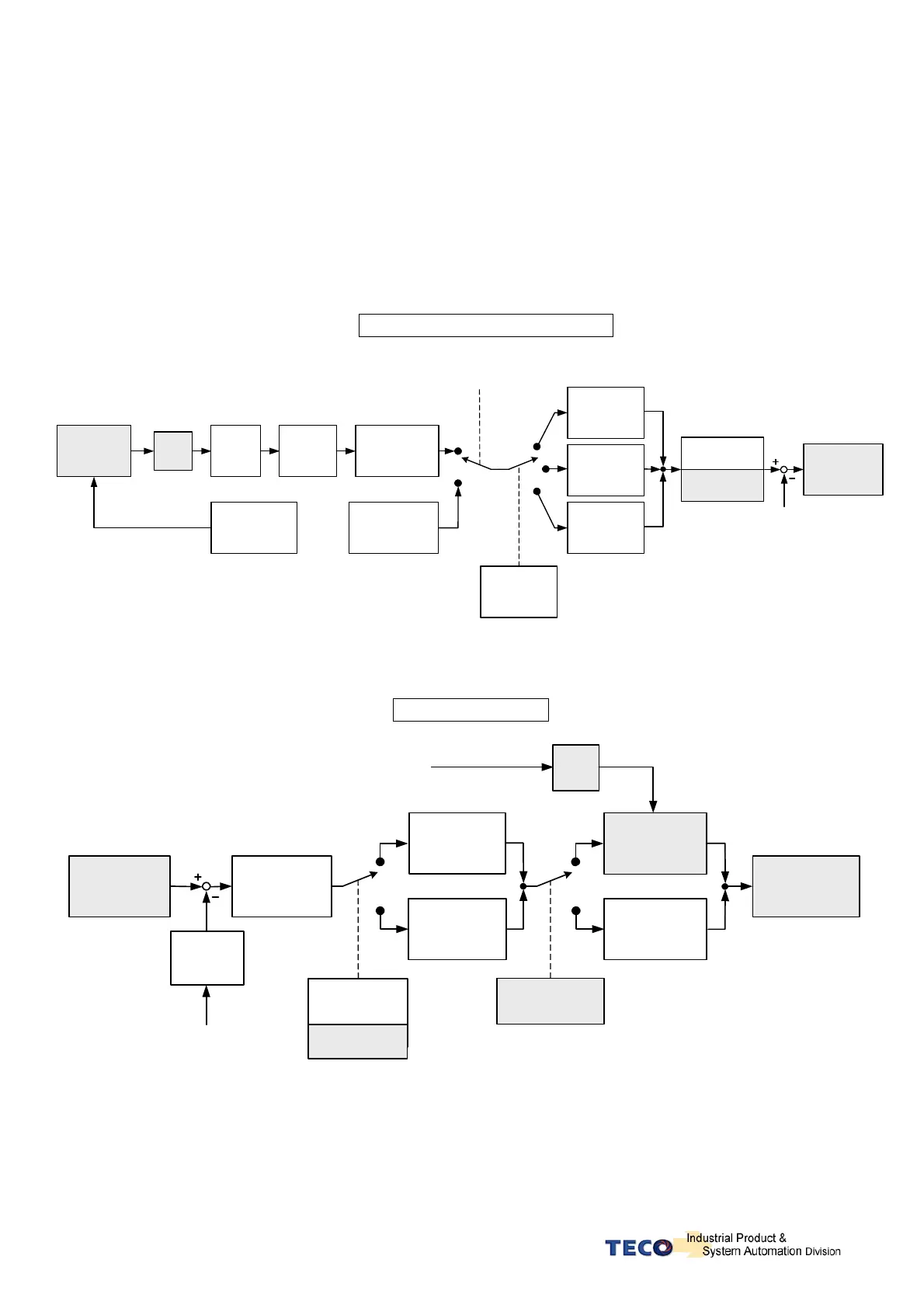

Speed Mode is necessary for applications that require precisely speed control, such as weaving,
drilling and CNC type machines.Diagrams below shows the speed control system in two parts.
First stage shows Speed processing and conditioning and the second stage shows the Speed
controller
With PI/P control modes, and controller1&2 selection and interface with torque control stage.
Speed Command Processor
Speed Controller
