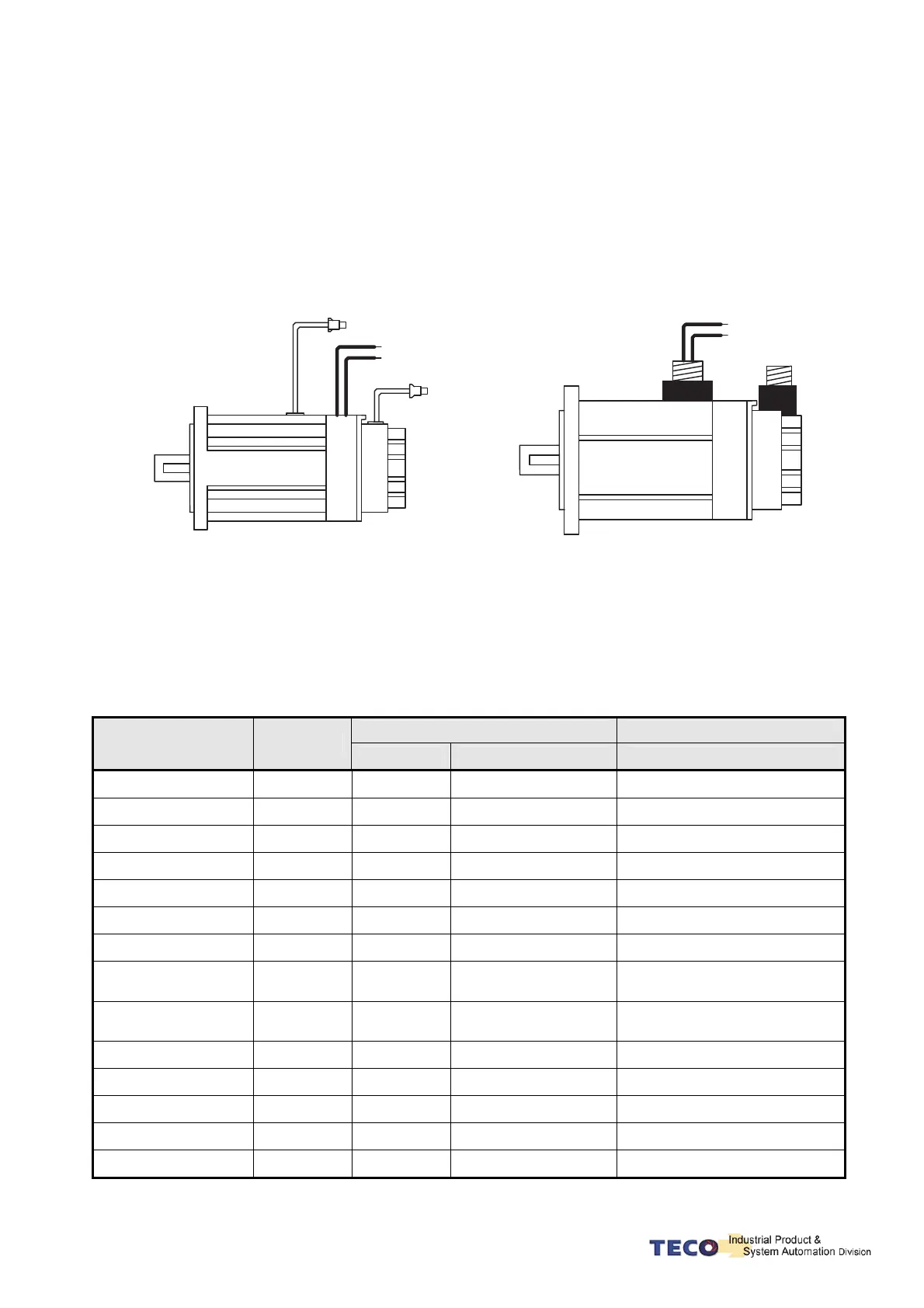

2-1-6 Wiring for Mechanical Brake
Uninstall BRAKE:
 JSMA-S/L/T series: Use Red wire and yellow wire connecting to DC +24V voltage(No polarity)
 JSMA-M/H
series: BK outputs from A & F of Motor Power Joint, servo motor can operate normally after
uninstalling.
Yellow Wire
JSMA-S/T/L
A
F
Yellow Wire
Encoder
Brake
Encoder
Brake
JSMA-M/H
2-1-7 MCCB/Fuse/Filter Recommended Specification
 Please use the MCCB and Fuse to meet IEC (or UL Certification) between power supplier and servo drive.
 Any noise issue which occurred during servo drive operation could be avoided by using filter.
Recommended Specification
Fuse Filter
Servo pack Model MCCB
Rating Suggestion Suggestion
JSDAP-15A 10A 20A Bussmann 20CT Schaffner FN3258-7-45
JSDAP-20A 15A 20A Bussmann 20CT Schaffner FN3258-7-45
JSDAP-30A 15A 20A Bussmann 20CT Schaffner FN3258-16-45
JSDAP-50A3 30A 40A Bussmann 40FE Schaffner FN3258-16-45
JSDAP-75A3 30A 40A Bussmann 40FE Schaffner FN3258-16-45
JSDAP-100A3 50A 63A Bussmann 63FE Schaffner FN3258-30-47
JSDAP-150A3 50A 63A Bussmann 63FE Schaffner FN3258-42-47
JSDAP-200A3 75A 100A
Ferraz Shawmut
A50QS100-4
Schaffner FN3258-42-47
JSDAP-300A3 125A 100A
Ferraz Shawmut
A50QS100-4
Schaffner FN3258-75-47
JSDAP-25B 10A 20A Bussmann 20CT Schaffner FN3258-16-45
JSDAP-35B 15A 20A Bussmann 20CT Schaffner FN3258-16-45
JSDAP-50B 20A 20A Bussmann 20CT Schaffner FN3258-16-45
JSDAP-75B 30A 40A Bussmann 40FE Schaffner FN3258-16-45
JSDAP-100B 30A 40A Bussmann 40FE Schaffner FN3258-16-45
