TECO JSDE-15 User Manual

13
Chapter 2 Main Circuit Wiring Diagram

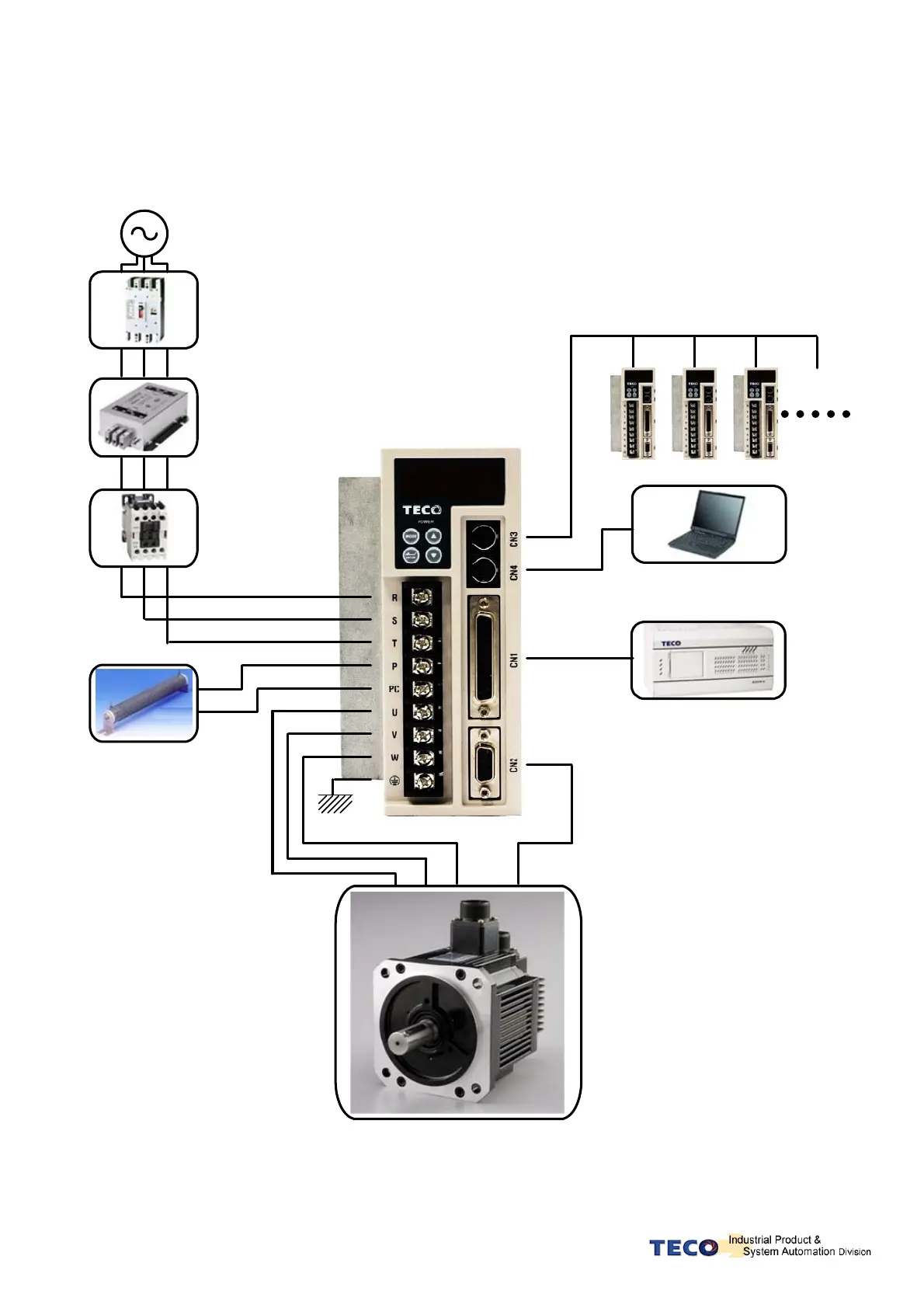

2-1 Main Circuit Wiring for Servo System
2-1-1 Wiring for Main Circuit and Peripheral Devices
Power
50W~1KW Single Phase or AC 200~230V 3 Phase
Magnetic
Contactor
(MC)
External braking
resistor is connected
to P and PC Circuit
Servo motor
JSMA
No Fuse Break
(NFB)
PLC / PC
or motion controller
Noise Filter
CN1
For I/O
Connection
CN4
For Communication
TECO Servo PC software
RS-232 / RS-485
CN2
For Encoder Connection
JSDE
CN3
RS485
