TECO JSDE-15 User Manual

22

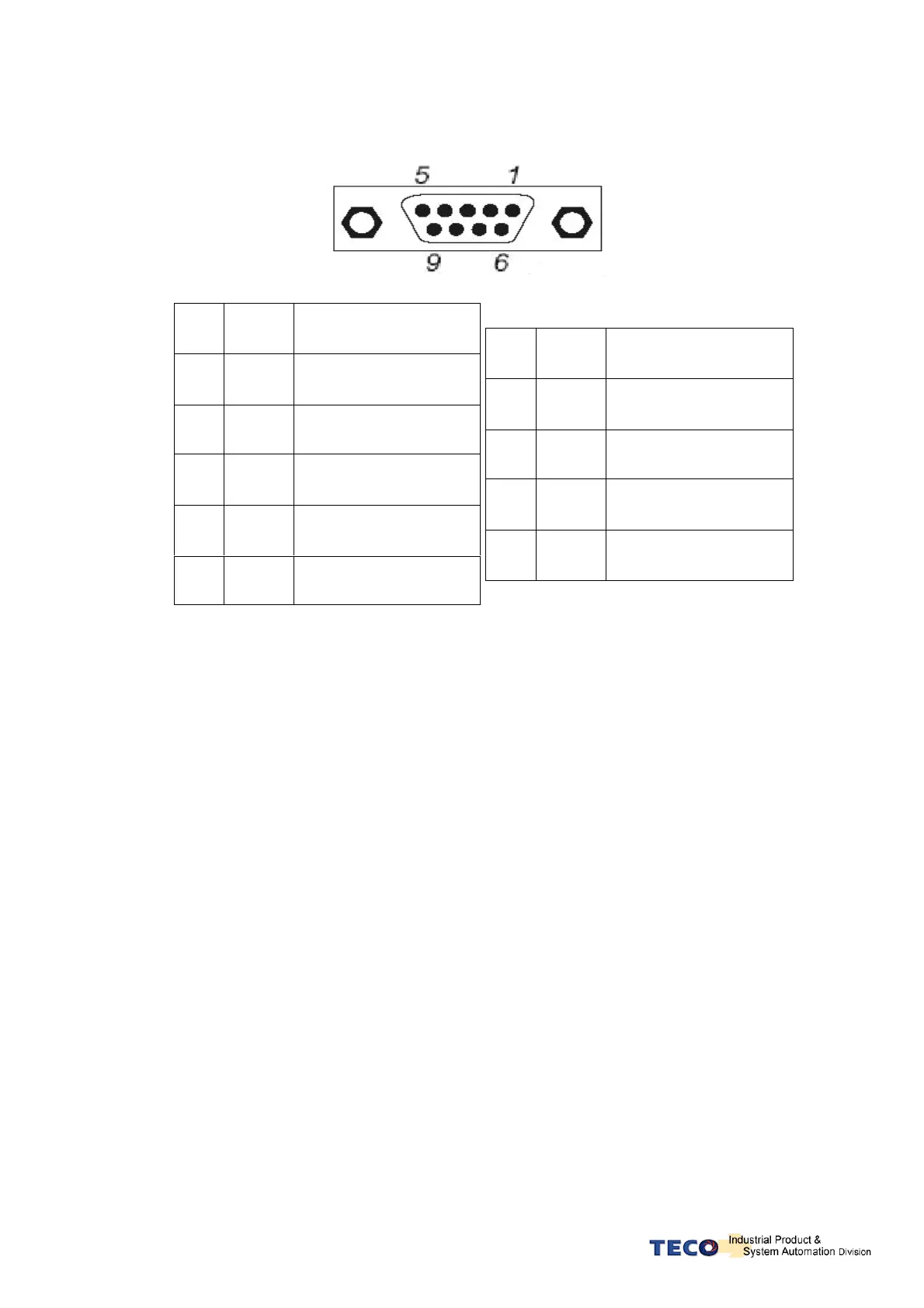

2-2-2 Encoder Connector (CN2) Terminal Layout
(1) Diagram of CN2 Terminal:
P.S. Do not connect wire to unassignment terminal.
Pin
NO.
Name Function
1 B Encoder B phase input
2 /A Encoder /A phase input
3 A Encoder A phase input
4 GND +5V GND
5 +5E +5V output
Pin
NO.
Name Function
6 __ _________________
7 /Z Encoder /Z phase input
8 Z Encoder Z phase input
9 /B Encoder /B phase input
